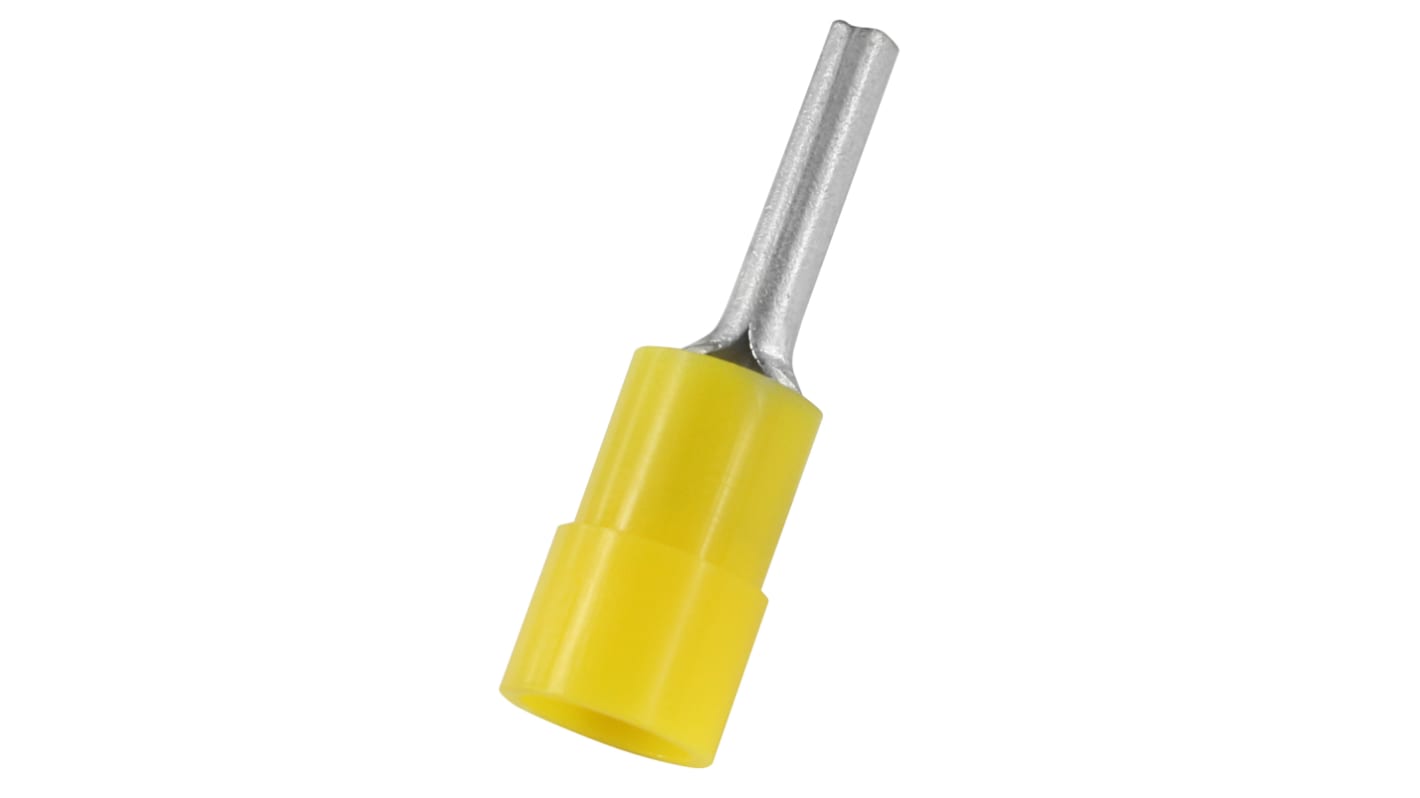

RS PRO Insulated Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter, 14mm Pin Length, Yellow
- RS-artikelnummer:
- 178-8421
- Tillverkare / varumärke:
- RS PRO
1500 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 100)
1,956 kr
(exkl. moms)
2,445 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 100 - 900 | 1,956 kr | 195,60 kr |
| 1000 - 1900 | 1,778 kr | 177,80 kr |
| 2000 - 4900 | 1,626 kr | 162,60 kr |
| 5000 - 9900 | 1,503 kr | 150,30 kr |
| 10000 + | 1,363 kr | 136,30 kr |
- RS-artikelnummer:
- 178-8421
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
The RS PRO Insulated crimp pin connector has overall length of 27mm with pin length of 14mm and 600V of voltage rating.
Colour: Yellow
Maximum Temperature Range: 105°C
Maximum Temperature Range: 105°C
Specifikationer
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | PC |
| Minimum Wire Size mm² | 4mm² |
| Overall Length | 27mm |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Pin Diameter | 2.8mm |
| Pin Length | 14mm |
| Colour | Yellow |
| Contact Material | Copper |
