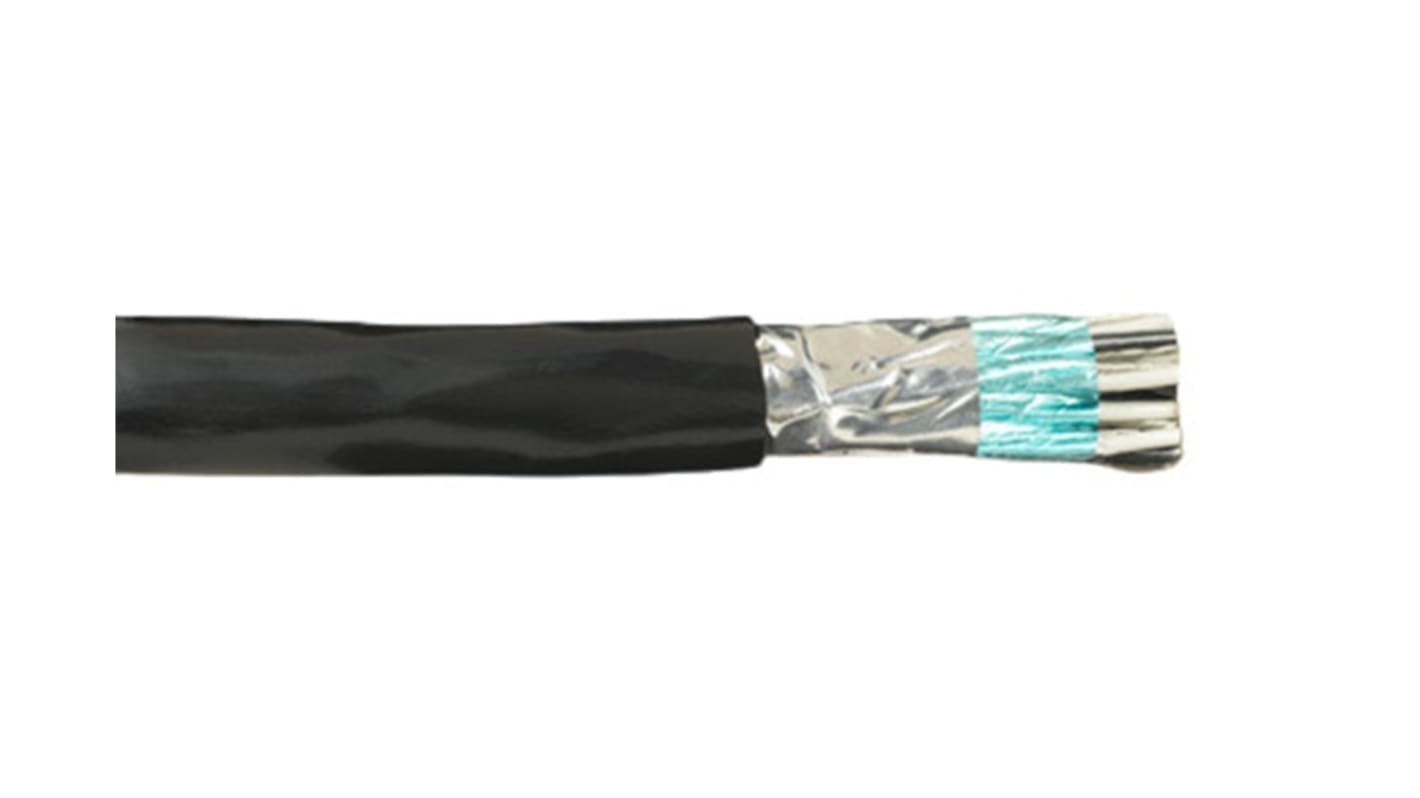

Alpha Wire Alpha Essentials Communication & Control Control Cable, 12 Cores, 0.75 mm² 18 AWG, Screened, 500 ft, Grey
- RS-artikelnummer:
- 277-6044
- Tillv. art.nr:
- 2466C SL002
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 152 meter)*
3 065,12 kr
(exkl. moms)
3 831,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 1 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 3 065,12 kr | 20,165 kr |
*vägledande pris
- RS-artikelnummer:
- 277-6044
- Tillv. art.nr:
- 2466C SL002
- Tillverkare / varumärke:
- Alpha Wire
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Control Cable | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 12 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Outside Diameter | 0.182 in | |
| Cable Length | 500ft | |
| Voltage | 300 Vrms | |
| Minimum Operating Temperature | -20°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | UL CMG 75°C, CSA International C(UL) TYPE CMG 75°C, CE | |
| Hazardous Area Certification | EU | |
| Cable CSA | 0.75 mm² | |
| American Wire Gauge | 18AWG | |
| Core Strands | 22 | |
| Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Control Cable | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 12 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Outside Diameter 0.182 in | ||
Cable Length 500ft | ||
Voltage 300 Vrms | ||
Minimum Operating Temperature -20°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals UL CMG 75°C, CSA International C(UL) TYPE CMG 75°C, CE | ||
Hazardous Area Certification EU | ||
Cable CSA 0.75 mm² | ||
American Wire Gauge 18AWG | ||
Core Strands 22 | ||
RoHS-status: Undantagen
The Alpha Wire multi conductor communication cables provide precise signal transmission in computers and control applications. It offers insulation or jacketing materials, shielding options, and conductor counts so you can easily select the cable that meets your most demanding needs.
Satisfy rigorous requirements of EMI performance
Satisfy rigorous requirements of transmission distances
Flexibility
Satisfy rigorous requirements of temperature extremes
