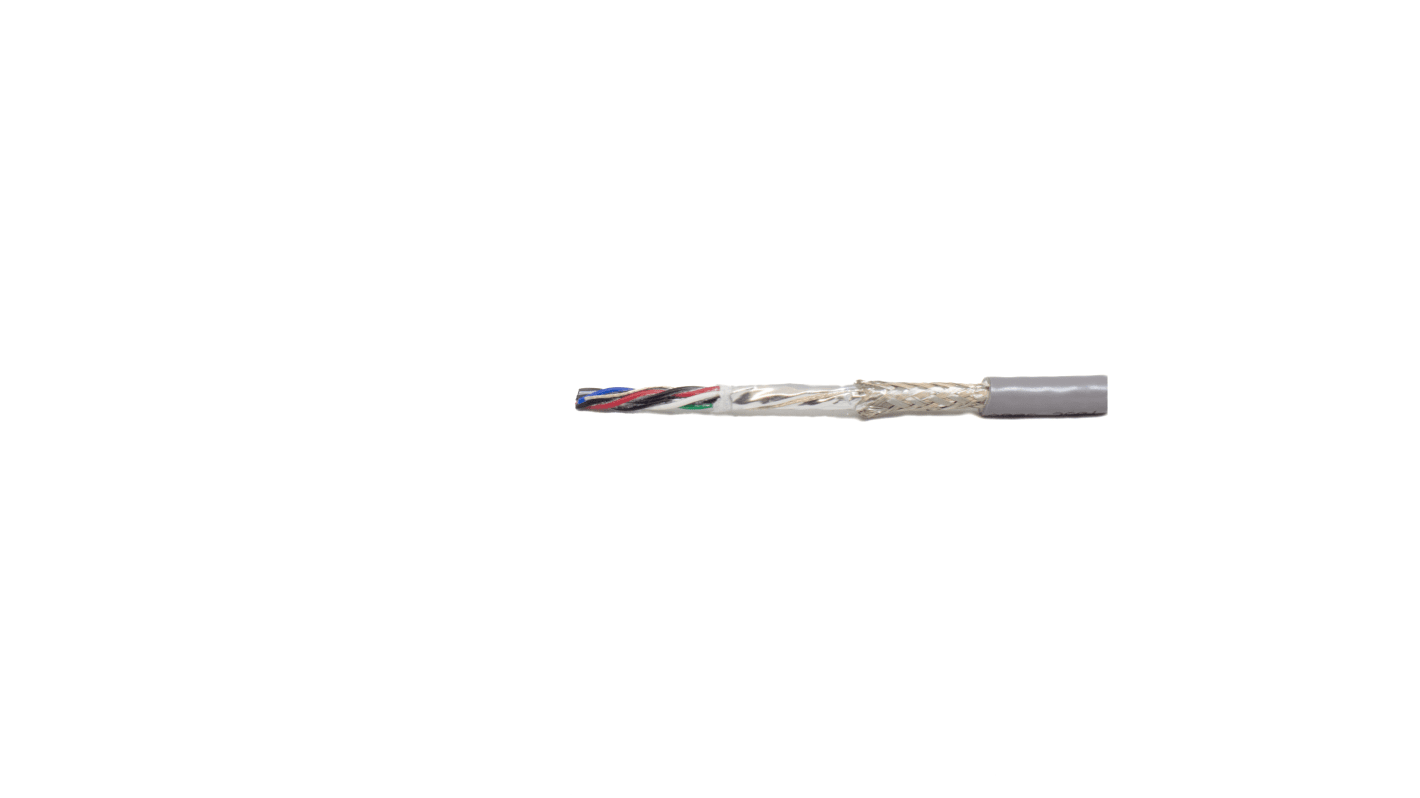

Alpha Wire 8641 Cable, 14 Cores, 0.08 mm² 28 AWG, Screened, 1000 ft, Grey Polyvinyl Chloride Sheath
- RS-artikelnummer:
- 105-160
- Tillv. art.nr:
- 86414CY SL001
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 305 meter)*
60 686,63 kr
(exkl. moms)
75 858,29 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 13 november 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 60 686,63 kr | 198,973 kr |
*vägledande pris
- RS-artikelnummer:
- 105-160
- Tillv. art.nr:
- 86414CY SL001
- Tillverkare / varumärke:
- Alpha Wire
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Series | 8641 | |
| Product Type | Cable | |
| Number of Cores | 14 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Outside Diameter | 0.381 in | |
| Cable Length | 1000ft | |
| Voltage | 300 Vrms | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE: EU Directive 2011/65/EU(RoHS2), CSA International, REACH Regulation (EC 1907/2006), UL, EU Directive 2015/863/EU (RoHS3) | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.08 mm² | |
| American Wire Gauge | 28AWG | |
| Core Strands | 14 | |
| Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Series 8641 | ||
Product Type Cable | ||
Number of Cores 14 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Outside Diameter 0.381 in | ||
Cable Length 1000ft | ||
Voltage 300 Vrms | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE: EU Directive 2011/65/EU(RoHS2), CSA International, REACH Regulation (EC 1907/2006), UL, EU Directive 2015/863/EU (RoHS3) | ||
Hazardous Area Certification No | ||
Cable CSA 0.08 mm² | ||
American Wire Gauge 28AWG | ||
Core Strands 14 | ||
- COO (Country of Origin):
- US
The Alphawire multiconductor control cable designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics also available in a variety of configurations allowing exactly the right cable to be selected for the application and Supra-Shield provides precise EMI interference resistance for your specific application.
Meets NFPA Standard 79 for industrial machinery
Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
Rated for up to 14 million flex life cycles, up to 6 Million flex life cycles
