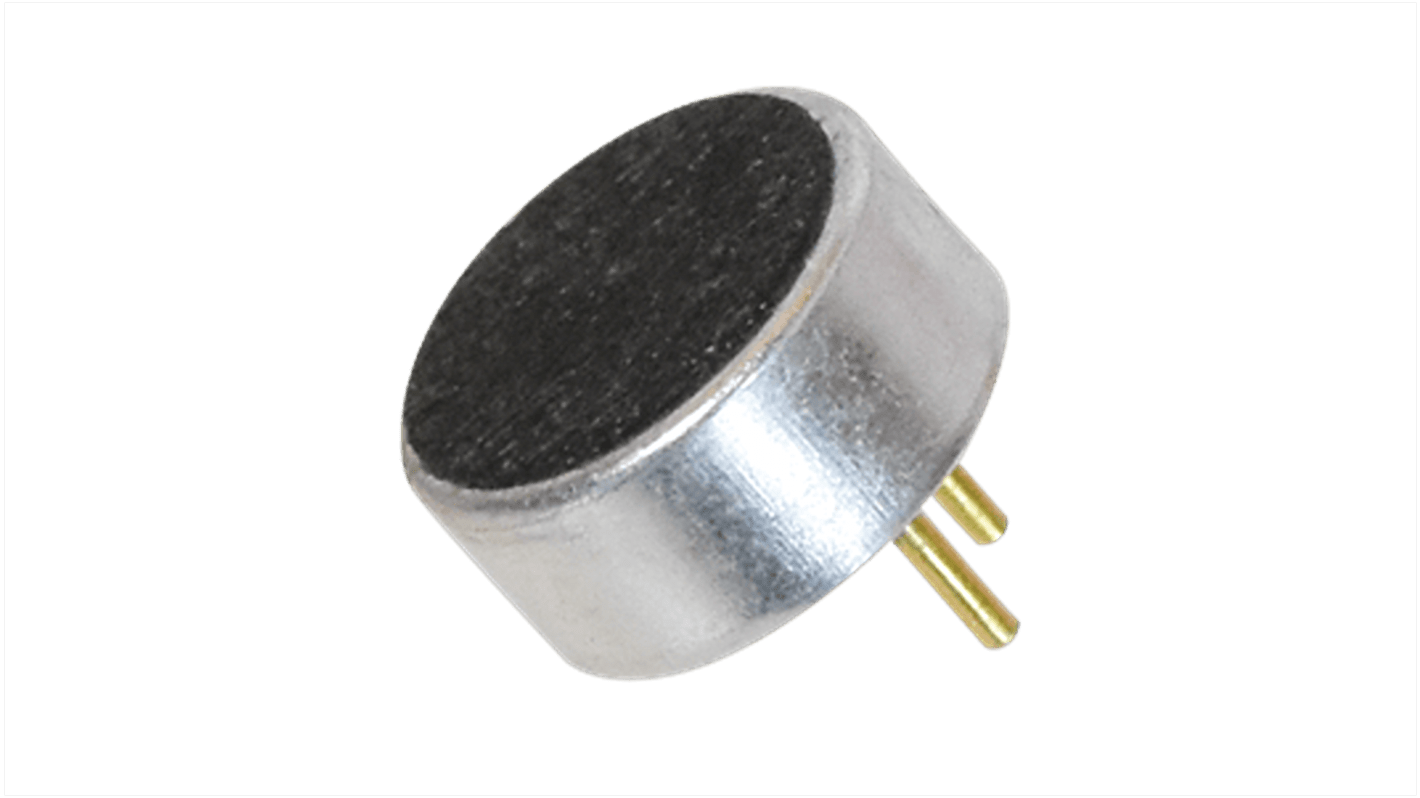

Same Sky Omni-Directional, PCB 6 mm Condenser Microphone Component -42dB
- RS-artikelnummer:
- 259-6185
- Tillv. art.nr:
- CMEJ-0627-42-P
- Tillverkare / varumärke:
- Same Sky
Mängdrabatt möjlig
Antal (1 förpackning med 10 enheter)*
46,49 kr
(exkl. moms)
58,11 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Lagerinformation är för närvarande otillgänglig
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 - 10 | 4,649 kr | 46,49 kr |
| 20 - 20 | 4,413 kr | 44,13 kr |
| 30 - 30 | 4,189 kr | 41,89 kr |
| 40 - 40 | 3,976 kr | 39,76 kr |
| 50 + | 3,774 kr | 37,74 kr |
*vägledande pris
- RS-artikelnummer:
- 259-6185
- Tillv. art.nr:
- CMEJ-0627-42-P
- Tillverkare / varumärke:
- Same Sky
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Same Sky | |
| Sensitivity | -42dB | |
| Product Type | Condenser Microphone Component | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 2V | |
| Mount Type | PCB | |
| Output Impedance | 2.2kΩ | |
| Signal to Noise Ratio | 60dB | |
| Diameter | 6 mm | |
| Maximum Frequency | 10kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 2.7mm | |
| Minimum Frequency | 100Hz | |
| Termination Style | Pin | |
| Standards/Approvals | RoHS | |
| Series | CMEJ | |
| Supply Current | 0.5mA | |
| Välj alla | ||
|---|---|---|
Brand Same Sky | ||
Sensitivity -42dB | ||
Product Type Condenser Microphone Component | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 2V | ||
Mount Type PCB | ||
Output Impedance 2.2kΩ | ||
Signal to Noise Ratio 60dB | ||
Diameter 6 mm | ||
Maximum Frequency 10kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Height 2.7mm | ||
Minimum Frequency 100Hz | ||
Termination Style Pin | ||
Standards/Approvals RoHS | ||
Series CMEJ | ||
Supply Current 0.5mA | ||
- COO (Country of Origin):
- CN
The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of PCB mount and a sensitivity of -42 dB. The rated operating voltage is 3 V.
Output impedance is 2.2 kΩ
Material is Al
