- RS-artikelnummer:
- 822-3964
- Tillv. art.nr:
- 17-816-998
- Tillverkare / varumärke:
- Norgren
Tillfälligt slut i lager – restorder för leverans 2024-06-12
Lagt till varukorgen
Pris (ex. moms) Varje
3 861,71 kr
(exkl. moms)
4 827,14 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 3 861,71 kr |
5 - 9 | 3 741,92 kr |
10 + | 3 622,23 kr |
- RS-artikelnummer:
- 822-3964
- Tillv. art.nr:
- 17-816-998
- Tillverkare / varumärke:
- Norgren
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer

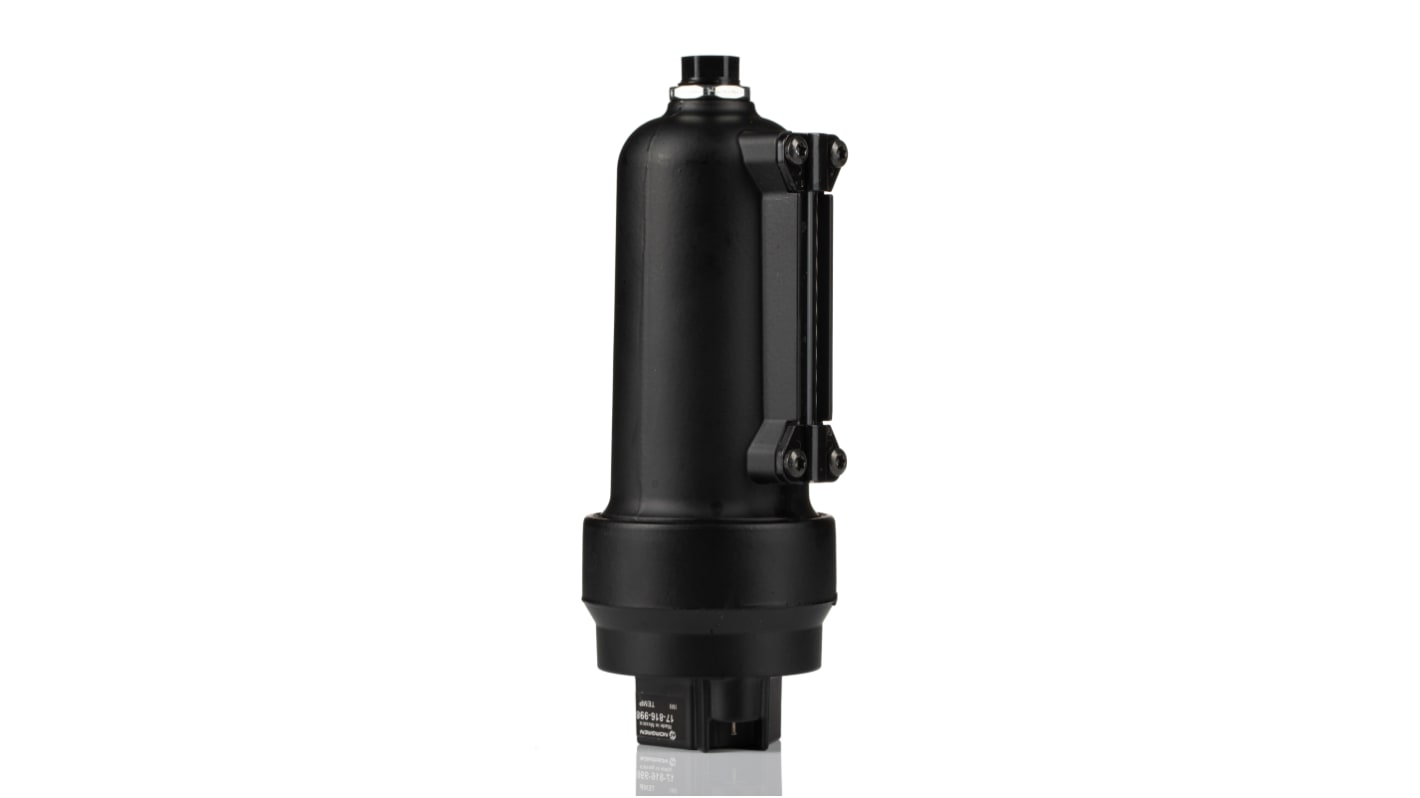

IMI Norgren Condensate Drain, Zinc Alloy Bowl Material, G1/2 Inlet Port Size - 17-816 Series - 17-816-998
Prevent moisture from damaging your pneumatic system with this automatic condensate drain from IMI Norgren. It collects liquid from the low points in your system, so there's no need for manual removal of moisture. A built-in exhaust valve means you can safely vent compressed air before maintenance. The zinc alloy bowl is resistant to impact and corrosion, so it's safe for use in harsh environments.
Features & Benefits
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Light weight of 0.44kg puts minimal strain on your system
• Space-saving dimensions of 170 (length) x 59mm (diameter) to catch liquid in compact setups
• Light weight of 0.44kg puts minimal strain on your system
• Space-saving dimensions of 170 (length) x 59mm (diameter) to catch liquid in compact setups
Applications
• Manufacturing systems
• Packaging machinery
• Transportation industry
• Packaging machinery
• Transportation industry
Why do I need to remove condensation from my pneumatic system?
You should remove all moisture from your pneumatic machinery as it can cause corrosion, which negatively impacts the performance of your system.
Why does condensation gather in pneumatics?
Condensation can occur as the air in your system cools. Even clean and dry compressed air can result in moisture, which is why drains are important, regardless of the medium in your system.
Specifikationer
Attribute | Value |
---|---|
Inlet Port | G 1/2 |
Inlet Port - Thread Size | 1/2in |
Drain Type | Automatic |
Outlet Port | G 1/8 |
Manufacturer Series | 17-816 |
Dimensions | 170 x 59mm |
Minimum Operating Temperature | -20°C |
Height | 170mm |
Outlet Port - Thread Standard | G |
Outlet Port - Thread Size | 1/8in |
Width | 59mm |
Inlet Port Thread Standard | G |
Maximum Operating Pressure | 16 bar |
Maximum Operating Temperature | +80°C |
- RS-artikelnummer:
- 822-3964
- Tillv. art.nr:
- 17-816-998
- Tillverkare / varumärke:
- Norgren
