Klinger Solid PTFE Gland & Valve Packing, 20 mm, 20m/s rotary speed, 100 bar, 30 bar max

RS-artikelnummer:: 796-0704
Tillv. art.nr:: PAC00025002000008
Tillverkare / varumärke:: Klinger

Klinger Solid PTFE Gland & Valve Packing, 20 mm, 20m/s rotary speed, 100 bar, 30 bar max

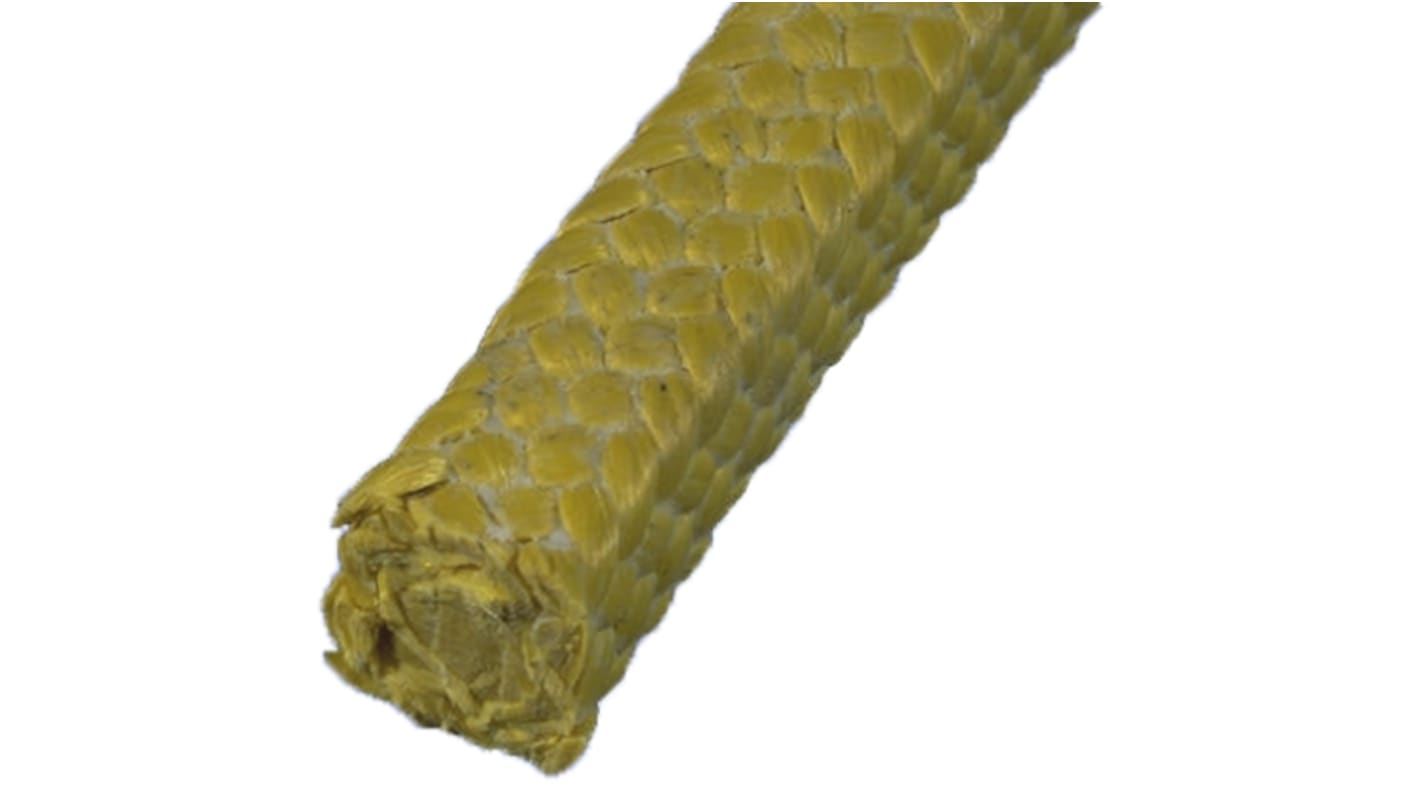

Denna bild representerar endast produktgruppen

Tillfälligt slut i lager – restorder för leverans 2024-01-30

Lagt till varukorgen

Pris (ex. moms) Each

6 641,88 kr

(exkl. moms)

8 302,35 kr

(inkl. moms)

Enheter	Per unit
1 +	6 641,88 kr

RS-artikelnummer:: 796-0704
Tillv. art.nr:: PAC00025002000008
Tillverkare / varumärke:: Klinger

Datablad

Klinger 25 Data Sheet

Lagstiftning och ursprungsland

COO (Country of Origin):: GB

Produktdetaljer

Klinger K25 Series

Manufactured from high strength aramid with added PTFE to aid lubrication.Klinger K25 compression packings excellent dimensional stability and extrusion resistance make it ideal for high stress environments such as plunger pumps. Resistant to the abrasion caused by suspended solids and shear effect caused by cold fluids. Suitable for valve and pump packing in harsh environments such as refineries, mines and quarries, steel works and cement works.

WRAS approval for potable water applications
Suitable for Plunger pumps

Note

Note: Packing should not be subjected to the maximums of temperature, pressure and speed simultaneously

Gland & Valve Packings

Gland and valve packings, designed to provide a seal between a moving spindle or shaft and the pressurised housing which it penetrates. Typical applications include rotary and reciprocating pumps, compressors, mixers or valve packing.

Specifikationer

Attribute	Value
Size	20 mm
Material	PTFE
Rotary Speed	20m/s
Maximum Operating Temperature	+280°C
Type	Solid
Maximum Operating Pressure	100 bar, 30 bar
Minimum pH	2
Minimum Operating Temperature	-100°C
Maximum pH	12
