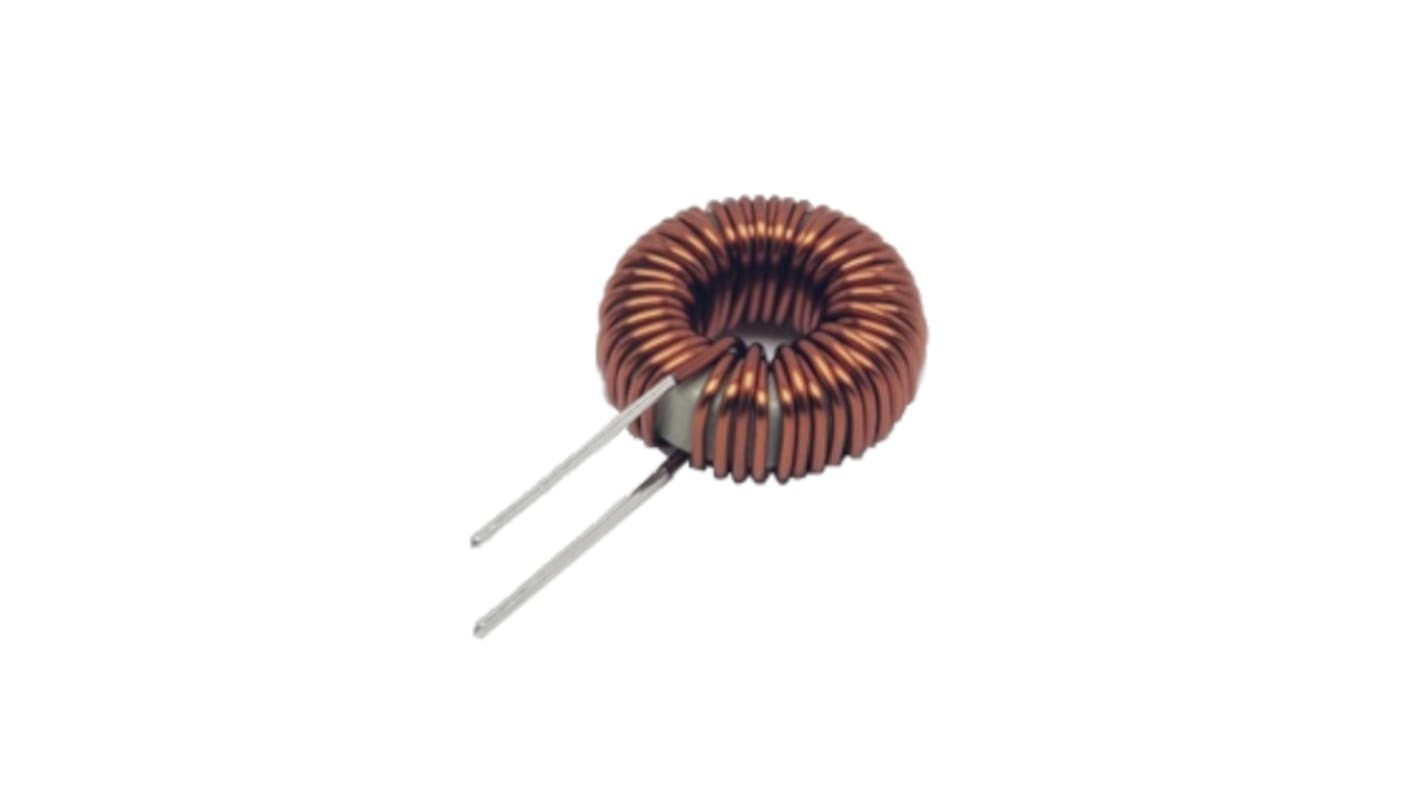

KEMET 174 μH 20 A Common Mode Choke 11.8mΩ
- RS-artikelnummer:
- 183-6799
- Tillv. art.nr:
- PHBC24W-2R4A0174V
- Tillverkare / varumärke:
- KEMET
Mängdrabatt möjlig
Antal (1 enhet)*
484,86 kr
(exkl. moms)
606,08 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 17 augusti 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 484,86 kr |
| 10 + | 455,84 kr |
*vägledande pris
- RS-artikelnummer:
- 183-6799
- Tillv. art.nr:
- PHBC24W-2R4A0174V
- Tillverkare / varumärke:
- KEMET
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | KEMET | |
| Inductance | 174 μH | |
| Series | PHBC | |
| Test Frequency | 100 kHz | |
| DC Resistance | 11.8mΩ | |
| Maximum Current | 20 A | |
| Dimensions | 57.6 (Dia.) x 30.9mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Number of Lines | 2 | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Height | 30.9mm | |
| Maximum Operating Temperature | +125°C | |
| Depth | 57.6mm | |
| Minimum Operating Temperature | -40°C | |
| Välj alla | ||
|---|---|---|
Brand KEMET | ||
Inductance 174 μH | ||
Series PHBC | ||
Test Frequency 100 kHz | ||
DC Resistance 11.8mΩ | ||
Maximum Current 20 A | ||
Dimensions 57.6 (Dia.) x 30.9mm | ||
Operating Temperature Range -40°C → +125°C | ||
Number of Lines 2 | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Height 30.9mm | ||
Maximum Operating Temperature +125°C | ||
Depth 57.6mm | ||
Minimum Operating Temperature -40°C | ||
- COO (ursprungsland):
- VN
The KEMET PHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Ni dust cores and are useful in various fields such as DC/DC converters as well as normal noise countermeasures.
Fe-Ni dust core material
Most suitable for big current Applications
Low core loss
High saturation magnetic flux density
Good DC superposition characteristics
Wide variety of sizes and specifications
Operating temperature range from −40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
Normal mode noise solution countermeasure
Most suitable for big current Applications
Low core loss
High saturation magnetic flux density
Good DC superposition characteristics
Wide variety of sizes and specifications
Operating temperature range from −40°C to +125°C
Applications
Switching power supply outlet
DC-DC converter
Phase compensation
Boost converter
Normal mode noise solution countermeasure
