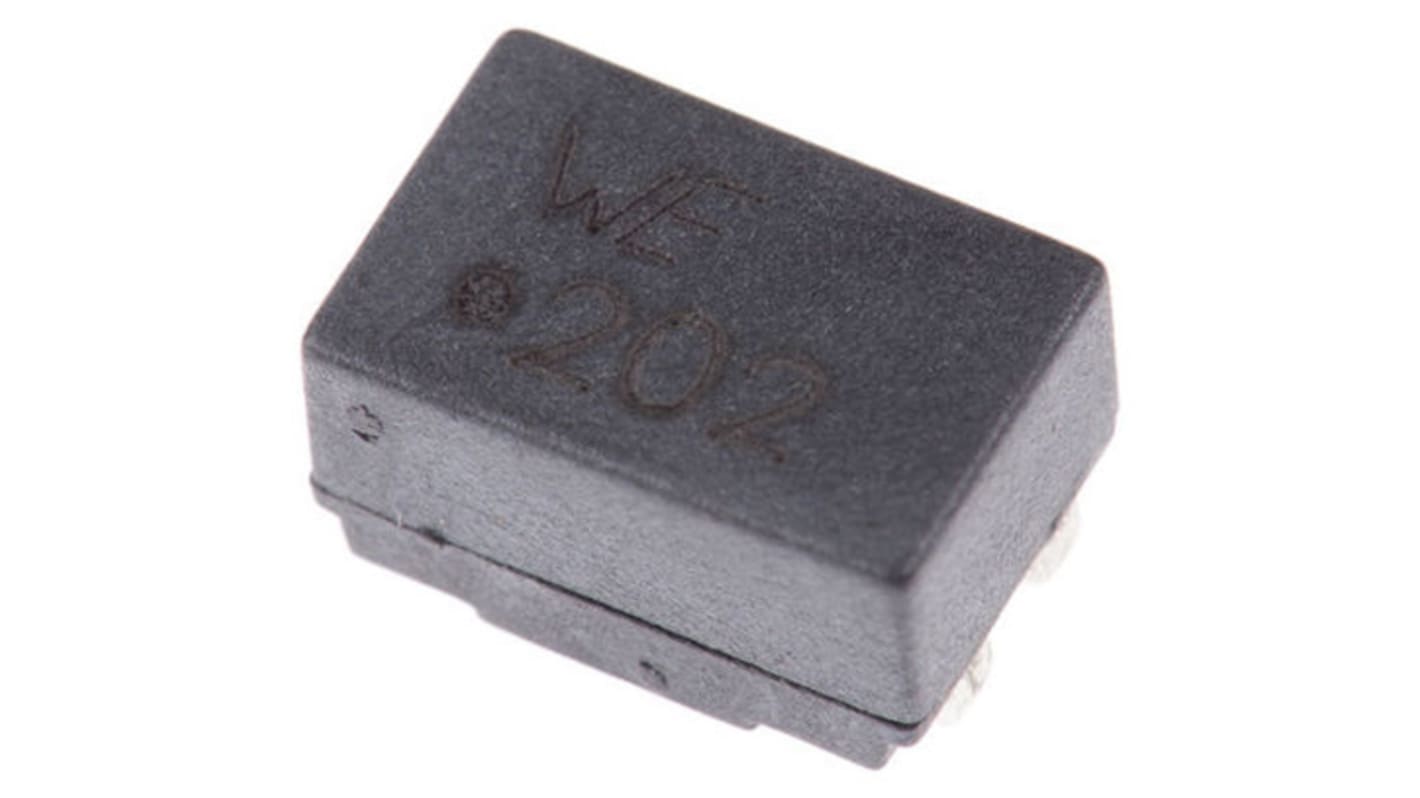

Wurth Elektronik 2 x 2 mH 600 mA Common mode filter 2 x 0.42Ω 80V
- RS-artikelnummer:
- 124-1876
- Tillv. art.nr:
- 744221
- Tillverkare / varumärke:
- Wurth Elektronik
Mängdrabatt möjlig
Antal (1 förpackning med 5 enheter)*
128,35 kr
(exkl. moms)
160,45 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 50 enhet(er) från den 15 december 2025
- Dessutom levereras 5 enhet(er) från den 15 december 2025
- Dessutom levereras 390 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 - 20 | 25,67 kr | 128,35 kr |
| 25 - 95 | 22,58 kr | 112,90 kr |
| 100 - 245 | 20,81 kr | 104,05 kr |
| 250 - 495 | 19,242 kr | 96,21 kr |
| 500 + | 17,988 kr | 89,94 kr |
*vägledande pris
- RS-artikelnummer:
- 124-1876
- Tillv. art.nr:
- 744221
- Tillverkare / varumärke:
- Wurth Elektronik
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 2 x 2 mH | |
| Series | WE-SL2 | |
| Test Frequency | 1 KHz | |
| DC Resistance | 2 x 0.42Ω | |
| Maximum Current | 600 mA | |
| Dimensions | 9.2 x 6 x 5mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Mounting Type | Surface Mount | |
| Voltage Rating | 80V | |
| Termination Style | Surface Mount | |
| Depth | 6mm | |
| Minimum Operating Temperature | -40°C | |
| Height | 5mm | |
| Maximum Operating Temperature | +125°C | |
| Length | 9.2mm | |
| Välj alla | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 2 x 2 mH | ||
Series WE-SL2 | ||
Test Frequency 1 KHz | ||
DC Resistance 2 x 0.42Ω | ||
Maximum Current 600 mA | ||
Dimensions 9.2 x 6 x 5mm | ||
Operating Temperature Range -40°C → +125°C | ||
Mounting Type Surface Mount | ||
Voltage Rating 80V | ||
Termination Style Surface Mount | ||
Depth 6mm | ||
Minimum Operating Temperature -40°C | ||
Height 5mm | ||
Maximum Operating Temperature +125°C | ||
Length 9.2mm | ||
- COO (ursprungsland):
- CN
Wurth WE-SL2 Series SMD Common Mode Chokes
Double current-compensated ring core choke
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ
Applications
Chokes for bus systems such as CAN, USB, ISDN
Signal and data line filtering
Power supplies
Measuring signal lines
Signal and data line filtering
Power supplies
Measuring signal lines
Common Mode Choke
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Ring core with the core materials of NiZn and MnZn
Operating temperature: –40 °C to +125 °C
Operating voltage: 80 VDC (42 VAC)
Recommended solder profile: Reflow
Current compensated choke for data and signal lines
Power supply systems
Signal and sensor lines
CAN
Suppression for common mode noise
Wurth SMD Common Mode Chokes
