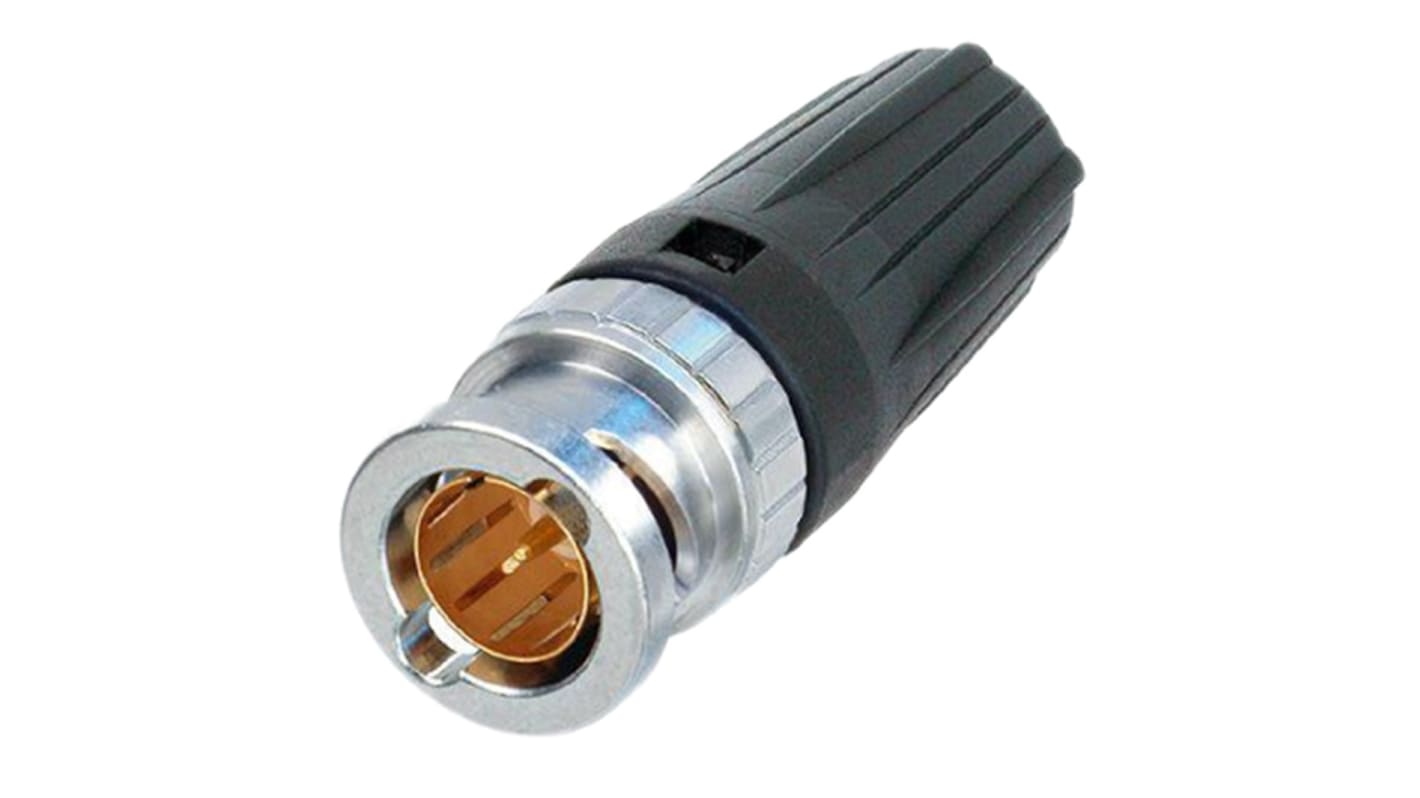

Neutrik BNC Series, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body

RS-artikelnummer:: 909-3682
Tillv. art.nr:: RSNBTC75BFI4
Tillverkare / varumärke:: Neutrik

Neutrik BNC Series, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Straight Body

13 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

55,99 kr

(exkl. moms)

69,99 kr

(inkl. moms)

Enheter	Per unit
1 - 9	55,99 kr
10 - 49	50,35 kr
50 +	48,46 kr

RS-artikelnummer:: 909-3682
Tillv. art.nr:: RSNBTC75BFI4
Tillverkare / varumärke:: Neutrik

Datablad

NBTC75BFI4 Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: LI

Produktdetaljer

Neutrik rearTWIST HD Tiny BNC Connectors

From Neutrik, this Tiny BNC Cable Connector is designed for use with tiny or multicore cables, with an additional leading ferrule to ease the assembly of smaller cable diameters. The connector also features a unique rearTWIST cable boot for easy and assured locking and unlocking. The BNC connector has true 75 Ohm design, and so meets HD requirements.

With machined brass parts and a snug-fit centre pin, this connector is extremely durable and boast a lifetime of 1000 mating cycles.

• Optimized for Tiny or multicore cables
• RearTWIST Soft-touch cable boot
• Durable design ensures 1000 mating cycles
• 75Ω design suitable for HD requirements
• Pin Crimp Size: 1.6mm²
• Shield Crimp Size: 4.06mm

Neutrik BNC Connectors

Specifikationer

Attribute	Value
Coaxial Connector Type	BNC Connector
Gender	Male
Mounting Type	Cable Mount
Impedance	75Ω
Termination Method	Crimp
Body Orientation	Straight
Size	Standard
Bulkhead	No
Body Plating	Optalloy
Series	BNC
Contact Material	Brass, Gold Cobalt (Center Contact)
Contact Plating	Gold

RS-artikelnummer:: 909-3682
Tillv. art.nr:: RSNBTC75BFI4
Tillverkare / varumärke:: Neutrik

NBTC75BFI4 Datasheet
