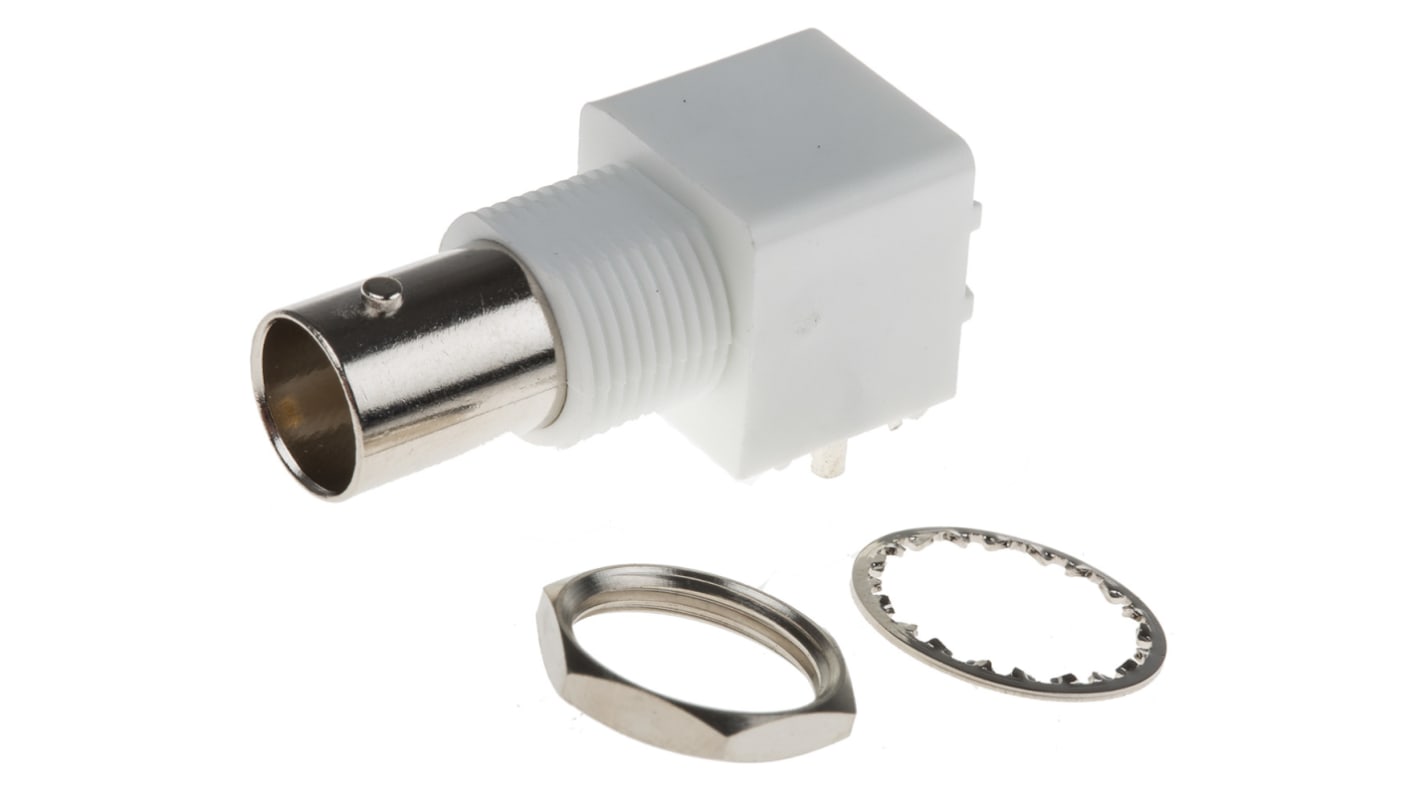

RS PRO, Jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body

From RS PRO, this BNC RF connector is designed for connection to coaxial cable assemblies, and features a bulkhead design for mounting to panels and chassis. It is PCB mounting for wire to device applications.

The connector has a robust body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability.

Features and Benefits

• Insulated 90° BNC PCB Connector
• Gold contact ensures maximum efficiency
• PCB Mounting
• 75 Ω impedance
• Operating frequency of 4GhZ
• Insulation material: PTFE

Applications

BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment.

• Antenna connection
• Cable Modems
• Telecom
• Medical Equipment
• Satcom
• CCTV


Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
