Radiall, jack Panel Mount, 50Ω, Solder Termination, Straight Body
- RS-artikelnummer:
- 307-7974
- Tillv. art.nr:
- R141574161
- Tillverkare / varumärke:
- Radiall
200 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 100)
79,581 kr
(exkl. moms)
99,476 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 100 - 900 | 79,581 kr | 7 958,10 kr |
| 1000 - 2400 | 64,699 kr | 6 469,90 kr |
| 2500 - 4900 | 62,63 kr | 6 263,00 kr |
| 5000 - 9900 | 61,993 kr | 6 199,30 kr |
| 10000 + | 60,243 kr | 6 024,30 kr |
- RS-artikelnummer:
- 307-7974
- Tillv. art.nr:
- R141574161
- Tillverkare / varumärke:
- Radiall
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer

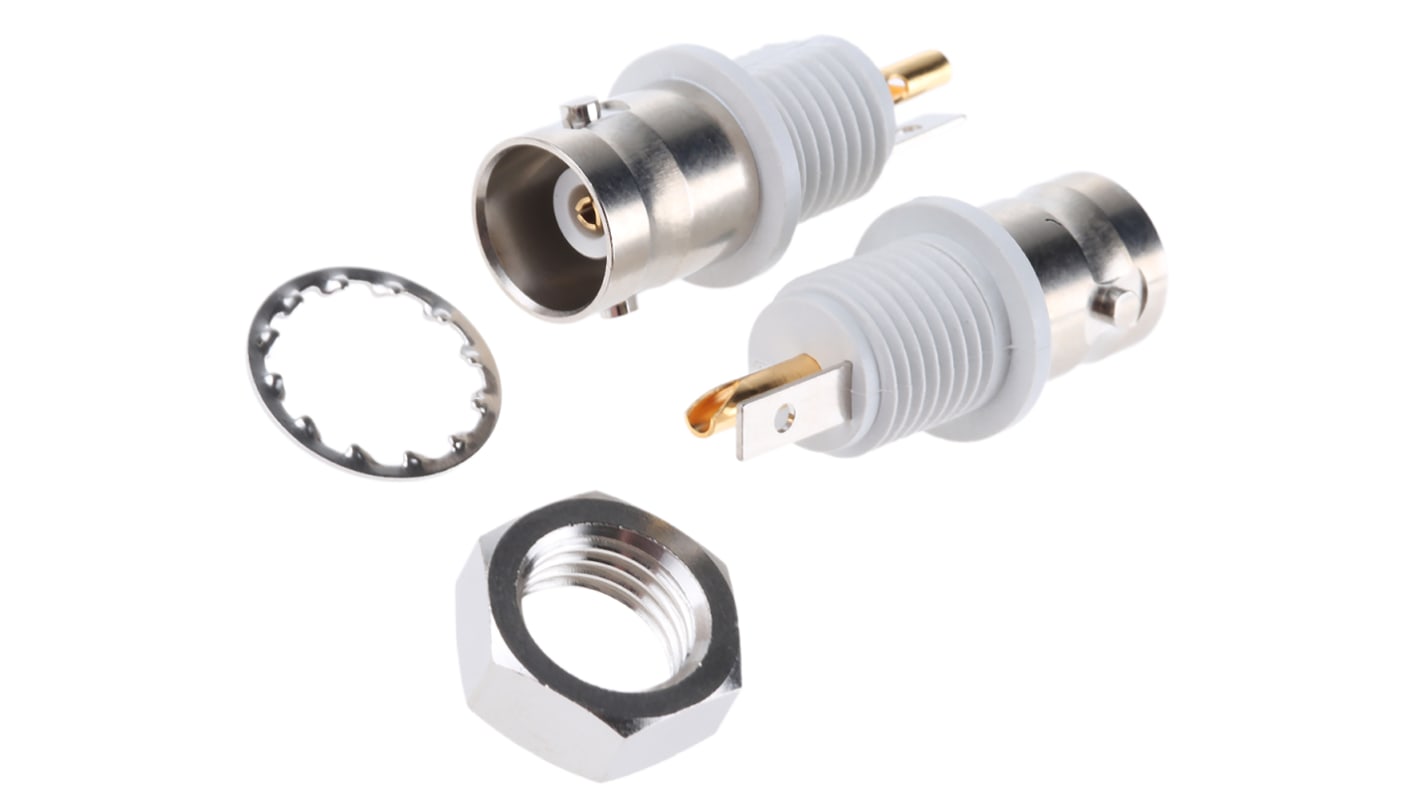

Bulkhead socket (commercial bulk)
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifikationer
Attribute | Value |
|---|---|
| Gender | Female |
| Mounting Type | Panel Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Bulkhead | Yes |
| Operating Frequency | 0 → 1.5GHz |
| Body Plating | NORYL |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Brass |
| Contact Plating | Gold |
