- RS-artikelnummer:
- 307-7952
- Tillv. art.nr:
- R142085161
- Tillverkare / varumärke:
- Radiall
Denna produkt har utgått
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer
- 785-7768
Pris (ex. moms) Var (i ett paket med 100)
49,581 kr
(exkl. moms)
61,976 kr
(inkl. moms)
- RS-artikelnummer:
- 307-7952
- Tillv. art.nr:
- R142085161
- Tillverkare / varumärke:
- Radiall
Lagstiftning och ursprungsland
Produktdetaljer

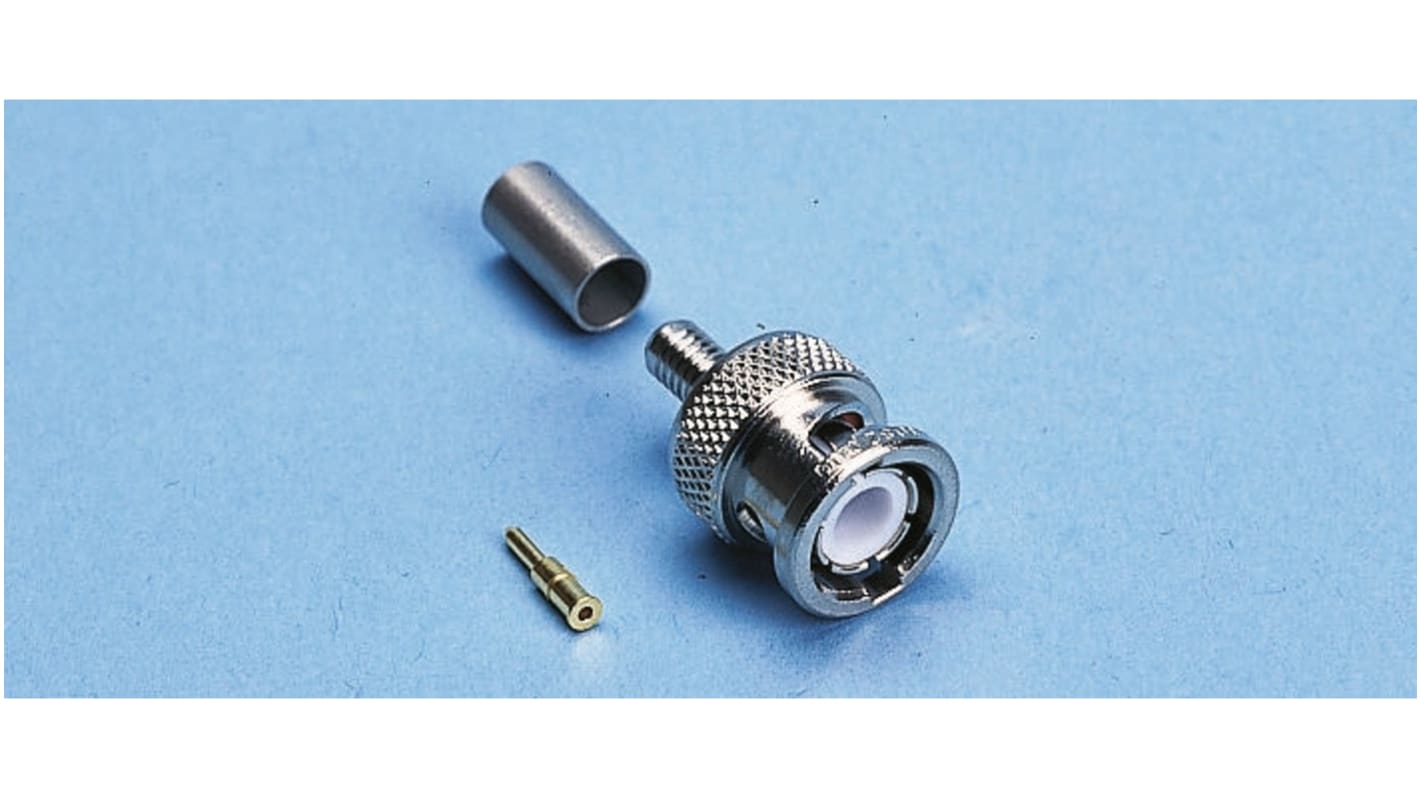

Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifikationer
Attribute | Value |
---|---|
Gender | Male |
Mounting Type | Cable Mount |
Impedance | 75Ω |
Termination Method | Crimp |
Body Orientation | Straight |
Operating Frequency | 0 → 3GHz |
Minimum Operating Temperature | -35°C |
Body Plating | Nickel |
Maximum Operating Temperature | +70°C |
Contact Material | Brass |
Contact Plating | Gold over Nickel |
