- RS-artikelnummer:
- 295-5621
- Tillv. art.nr:
- R114239000W
- Tillverkare / varumärke:
- Radiall
- RS-artikelnummer:
- 295-5621
- Tillv. art.nr:
- R114239000W
- Tillverkare / varumärke:
- Radiall
Lagstiftning och ursprungsland
Produktdetaljer

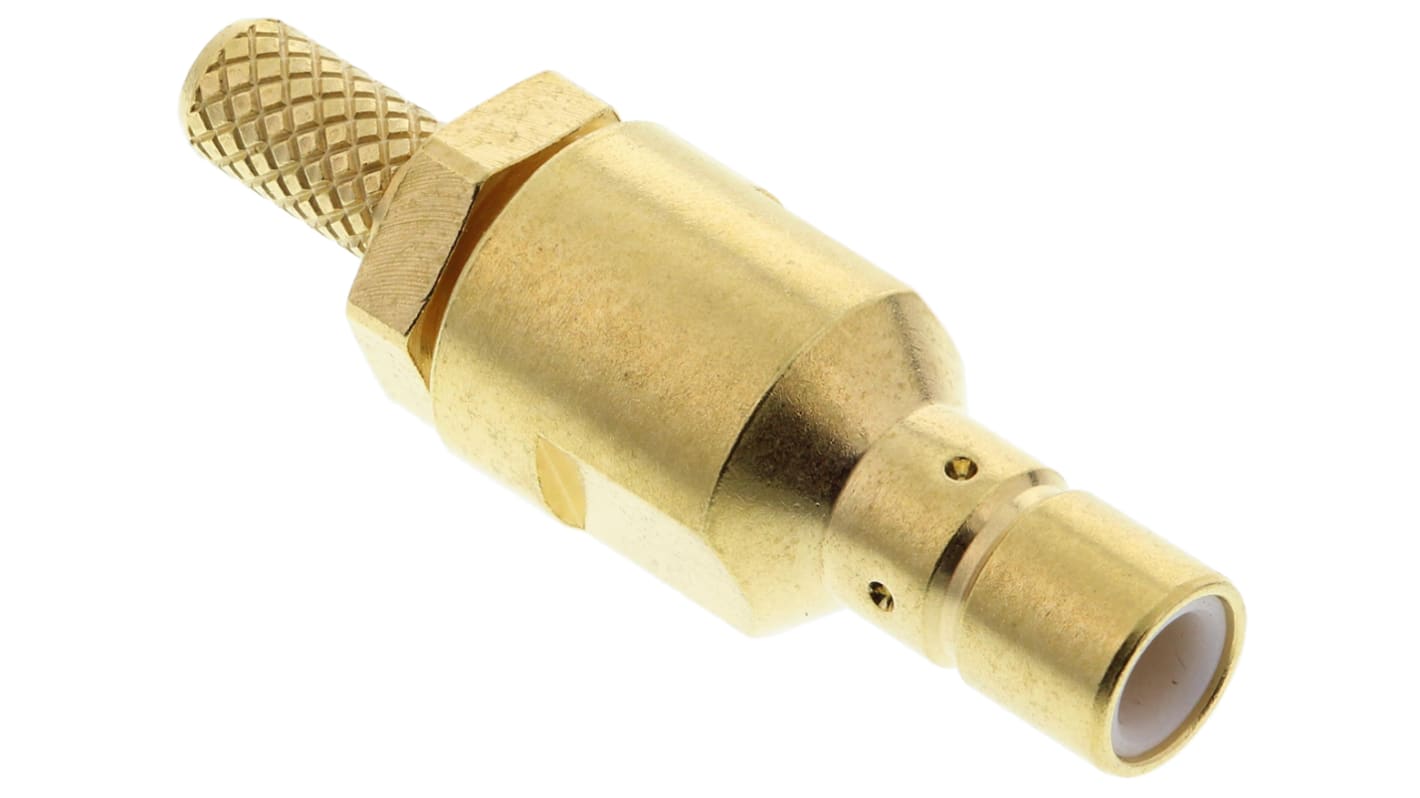

Straight Crimp Jack
Note
Jack has male contact.
Approvals
MIL-C-309012
Radiall - SMB Gold Plated
Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.
Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
Specifikationer
Attribute | Value |
---|---|
Coaxial Connector Type | SMB Connector |
Gender | Female |
Mounting Type | Cable Mount |
Impedance | 50Ω |
Termination Method | Crimp |
Body Orientation | Straight |
Cable Type | RG179, RG187, RG188, RG316 |
Operating Frequency | 0 to 4GHz |
Body Plating | Gold |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | +165°C |
Contact Material | Brass |
Contact Plating | Gold over Nickel |
