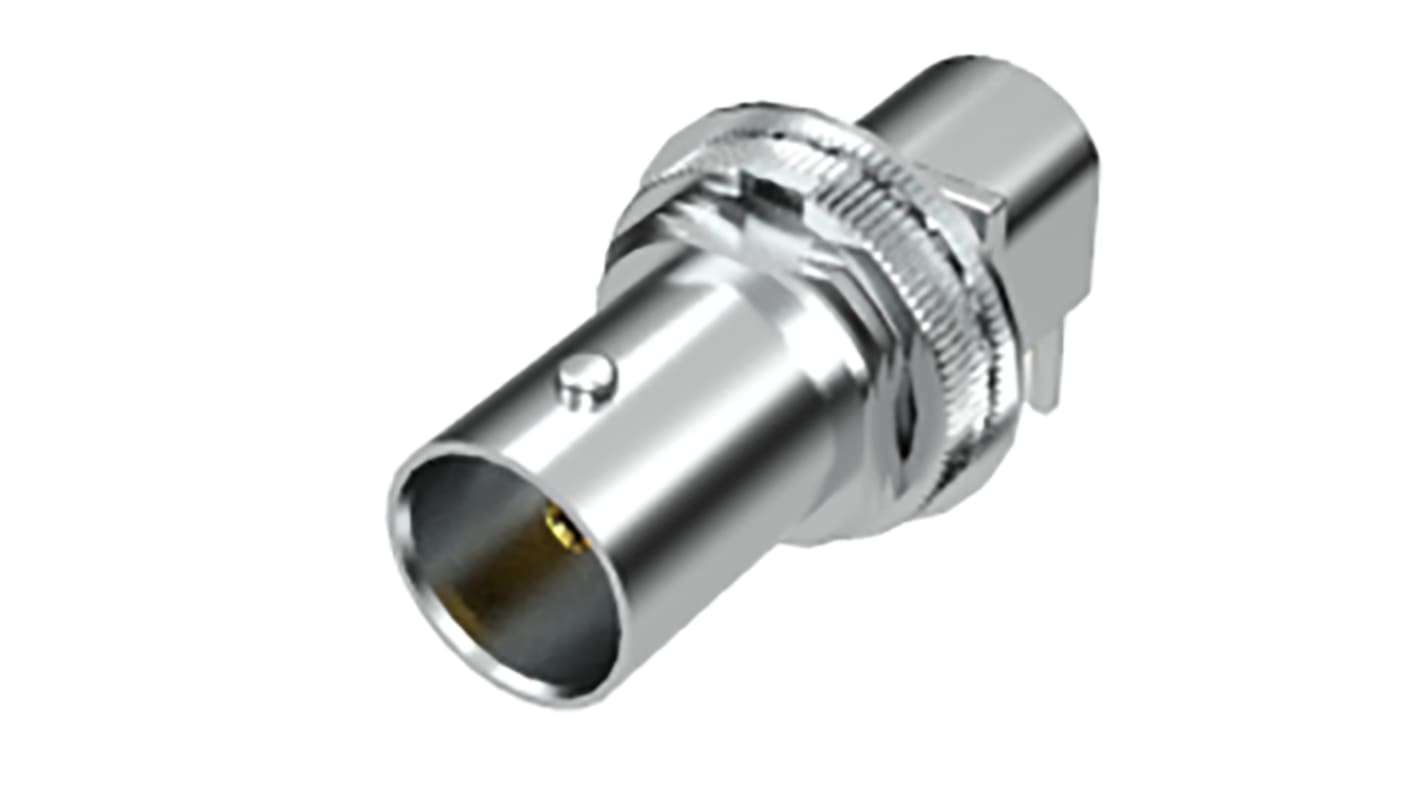

Samtec BNC7T Series, jack PCB Mount BNC Connector, 75Ω, Through Hole Termination, Right Angle Body
- RS-artikelnummer:
- 180-0041
- Tillv. art.nr:
- BNC7T-J-P-GN-RA-BH2D
- Tillverkare / varumärke:
- Samtec
15 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
77,24 kr
(exkl. moms)
96,55 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 77,24 kr |
| 10 - 49 | 71,66 kr |
| 50 - 99 | 66,84 kr |
| 100 + | 62,58 kr |
- RS-artikelnummer:
- 180-0041
- Tillv. art.nr:
- BNC7T-J-P-GN-RA-BH2D
- Tillverkare / varumärke:
- Samtec
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Optimized for 12G-SDI Broadcast Video solutions
75 ohm impedance
Standard right-angle bulkhead jack or low profile right-angle die cast bulkhead jack
75 ohm impedance
Standard right-angle bulkhead jack or low profile right-angle die cast bulkhead jack
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | PCB Mount |
| Impedance | 75Ω |
| Termination Method | Through Hole |
| Body Orientation | Right Angle |
| Cable Type | Coaxial |
| Size | Standard |
| Bulkhead | Yes |
| Operating Frequency | 0 to 12GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +125°C |
| Series | BNC7T |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
