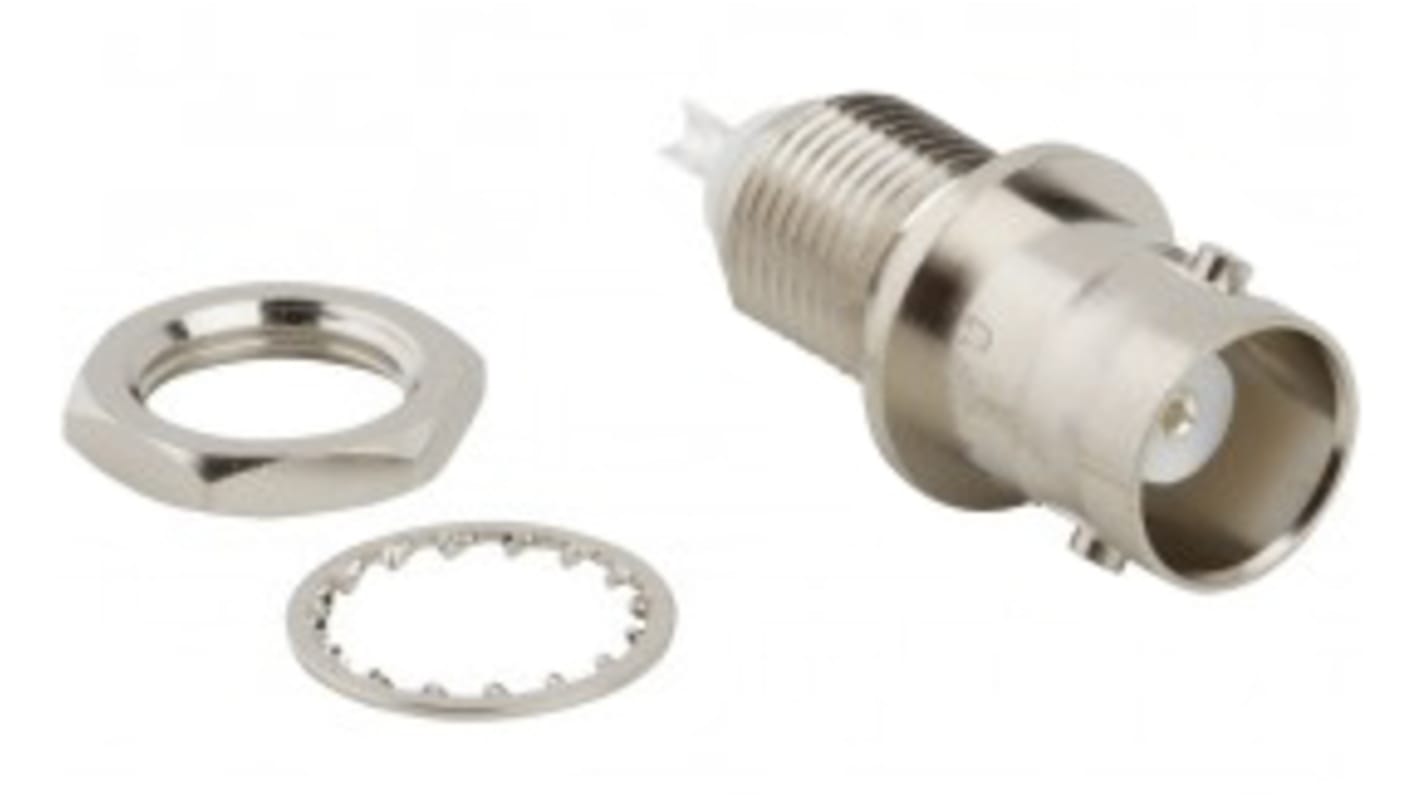

Amphenol RF BNC Series, jack Cable Mount BNC Connector, 50Ω, Solder Termination, Straight Body
- RS-artikelnummer:
- 143-9750
- Tillv. art.nr:
- 031-2221
- Tillverkare / varumärke:
- Amphenol RF
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Pris (ex. moms) Var (i en påse med 500)
36,538 kr
(exkl. moms)
45,672 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 500 - 500 | 36,538 kr | 18 269,00 kr |
| 1000 + | 34,455 kr | 17 227,50 kr |
- RS-artikelnummer:
- 143-9750
- Tillv. art.nr:
- 031-2221
- Tillverkare / varumärke:
- Amphenol RF
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles. Amphenol offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.
Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
RF Connector, UG-1094A/U, BNC Straight Jack, Solder Cup, 50 Ohm, Bulkhead
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Bulkhead | No |
| Operating Frequency | 4GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Nickel |
| Maximum Operating Temperature | +165°C |
| Polarity | Normal |
| Series | BNC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Silver |
