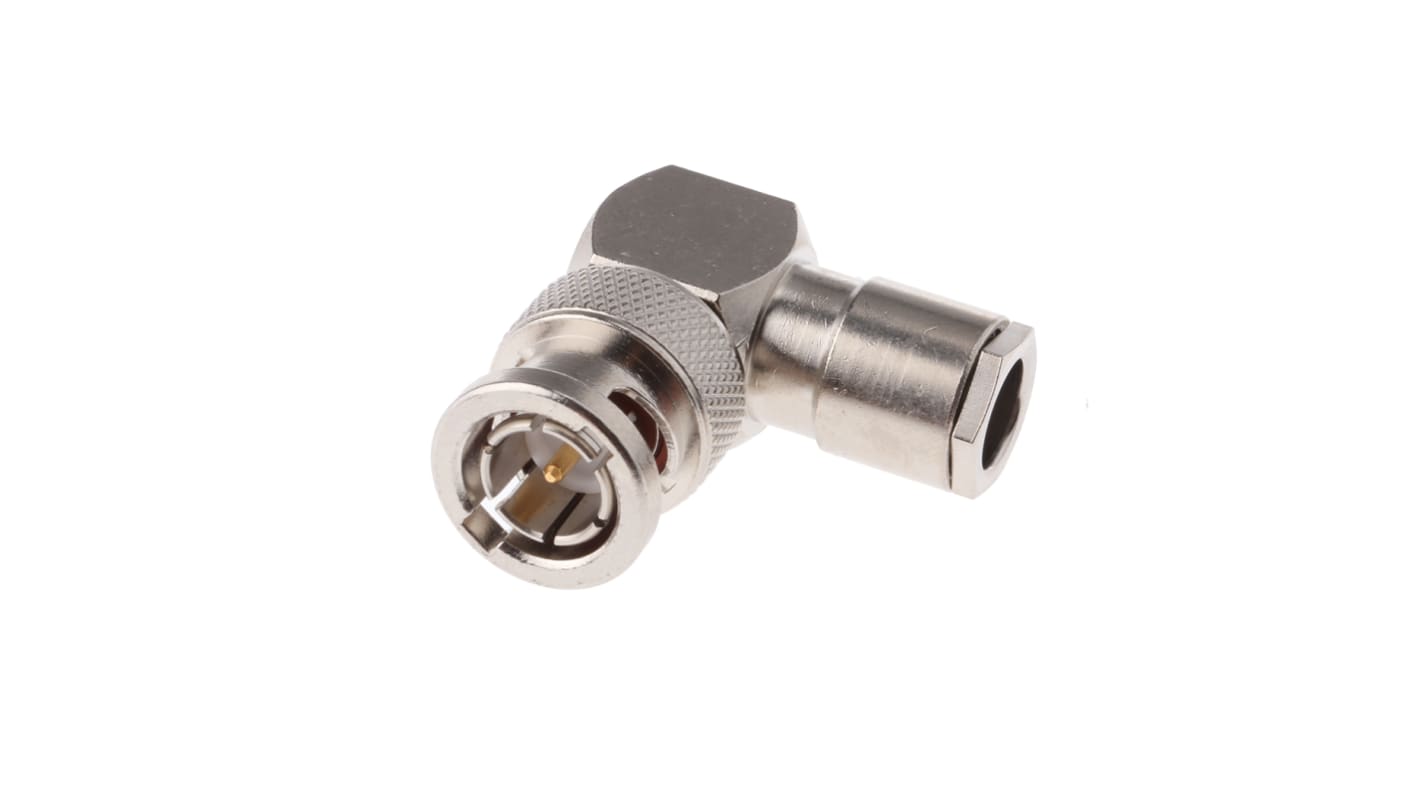

Telegartner, Plug Cable Mount BNC Connector, 75Ω, Clamp Termination, Right Angle Body
- RS-artikelnummer:
- 112-1704
- Tillv. art.nr:
- J01002A1217
- Tillverkare / varumärke:
- Telegartner
Tillfälligt slut i lager – restorder för leverans 2024-05-21
Lagt till varukorgen
Pris (ex. moms) Varje
277,03 kr
(exkl. moms)
346,29 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 24 | 277,03 kr |
| 25 - 99 | 261,83 kr |
| 100 - 249 | 227,12 kr |
| 250 - 499 | 218,03 kr |
| 500 + | 192,30 kr |
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer
- 618-8774
Pris (ex. moms) Var (i en låda med 50)
28,264 kr
(exkl. moms)
35,33 kr
(inkl. moms)
- RS-artikelnummer:
- 112-1704
- Tillv. art.nr:
- J01002A1217
- Tillverkare / varumärke:
- Telegartner
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Telegartner 50 Ω and 75 Ω right Angled BNC Clamp Plugs
From Telegartner, a range of 50 Ω and 75 Ω BNC right angled clamp plugs. The BNC cable mount plugs have gold plated beryllium copper contacts and a PTFE insulator. Featuring a simple bayonet coupling mechanism connector can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC connector one of the most versatile connectors on the market today.
Features and Benefits
• Bayonet coupling
• IP54 rated between a mated plug and jack
• Up to 4 GHz
• IP54 rated between a mated plug and jack
• Up to 4 GHz
Applications
• Signal
• Data
• Video transmission
• Data
• Video transmission
Telegärtner BNC RF Connectors
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | BNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Clamp |
| Body Orientation | Right Angle |
| Cable Type | RG59 B/U |
| Bulkhead | No |
| Operating Frequency | 0 to 4GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
