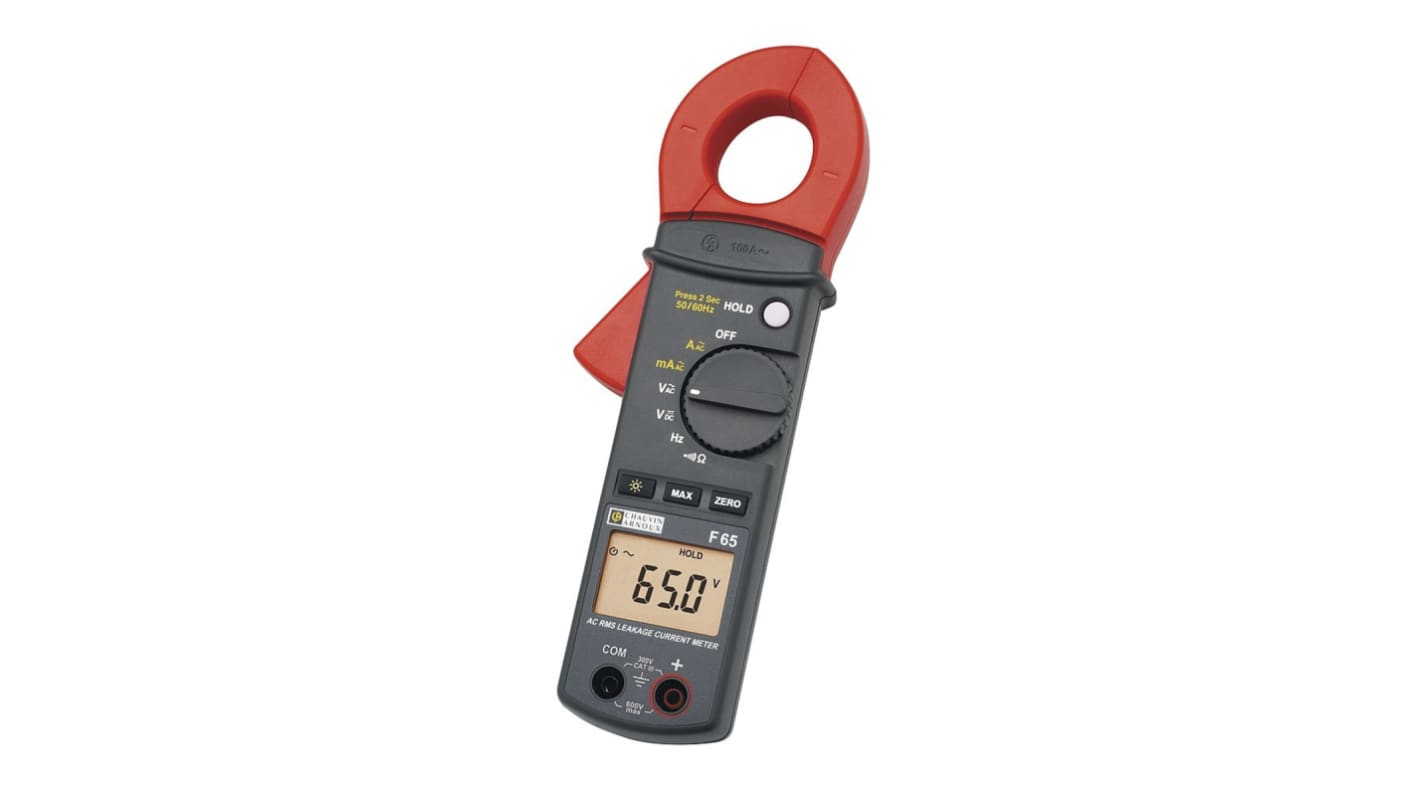

F65 Clamp Meter, Max Current 100A ac CAT III 300V With UKAS Calibration

RS-artikelnummer:: 282-1875
Tillv. art.nr:: P01120761
Tillverkare / varumärke:: Chauvin Arnoux

F65 Clamp Meter, Max Current 100A ac CAT III 300V With UKAS Calibration

In stock, please allow 1 day for callibration plus 2 working days for delivery

Nästa dag-leverans inte möjlig

Pris (ex. moms) Varje

6 398,47 kr

(exkl. moms)

7 998,09 kr

(inkl. moms)

Enheter	Per enhet
1 +	6 398,47 kr

RS-artikelnummer:: 282-1875
Tillv. art.nr:: P01120761
Tillverkare / varumärke:: Chauvin Arnoux

F62, F65 Leakage Multimeter Clamps Data Sheet
User’s manual F62/F65

Attribute	Value
Absolute Maximum AC Current Measurement	100A ac
Absolute Maximum AC Voltage Measurement	600V ac
Absolute Maximum DC Voltage Measurement	600V dc
Absolute Maximum Resistance Measurement	1kΩ
Model Number	F65
Calibrated	UKAS
AC Current Measurement Resolution	10µA
Clamp Meter Type	Leakage Clamp Meter
Best AC Current Accuracy	±(1,2% rdg + 5dgts)
Best AC Voltage Accuracy	±(1% rdg + 5dgts)
Best DC Voltage Accuracy	±(1% rdg + 2dgts)
Jaw Capacity Busbars	28mm
Functions Measured	AC Current, AC Voltage, Continuity, DC Voltage, Frequency, Resistance
True RMS	Yes
Resistance Measurement Resolution	100mΩ
Safety Category Voltage	300V
Battery Type	AAA
Dimensions	218 x 64 x 30mm
DC Voltage Measurement Resolution	100mV
Power Source	Battery
Safety Category	CAT III 300V
Best Resistance Measurement Accuracy	±1% + 3 Digits
Display Type	Backlit LCD
Maximum Operating Temperature	+40°C
Minimum Operating Temperature	0°C
Height	30mm
Safety Category Level	CAT III
Weight	280g
Battery Life	45 h
Maximum Conductor Size	28mm
Length	218mm
Non-Contact Voltage Detector	No
Width	64mm
AC Voltage Measurement Resolution	100mV

F65 Clamp Meter, Max Current 100A ac CAT III 300V With UKAS Calibration

F65 Clamp-on Meter
