- RS-artikelnummer:
- 360-2441
- Tillv. art.nr:
- 213900-1
- Tillverkare / varumärke:
- TE Connectivity
53 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
149,77 kr
(exkl. moms)
187,21 kr
(inkl. moms)
Enheter | Per unit |
1 - 1 | 149,77 kr |
2 - 4 | 140,93 kr |
5 - 9 | 131,80 kr |
10 - 24 | 122,81 kr |
25 + | 113,97 kr |
- RS-artikelnummer:
- 360-2441
- Tillv. art.nr:
- 213900-1
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
Produktdetaljer
Series 6
Suitable contacts for Series 6 connectors see for example stock no. 360-2463
Note
The correct assembly procedures must be followed to ensure a full IP65 rating.
Series 5 power connectors have 3 pole Powerband contacts
Series 6 power connectors have 8 signal and 2 Powerband contacts

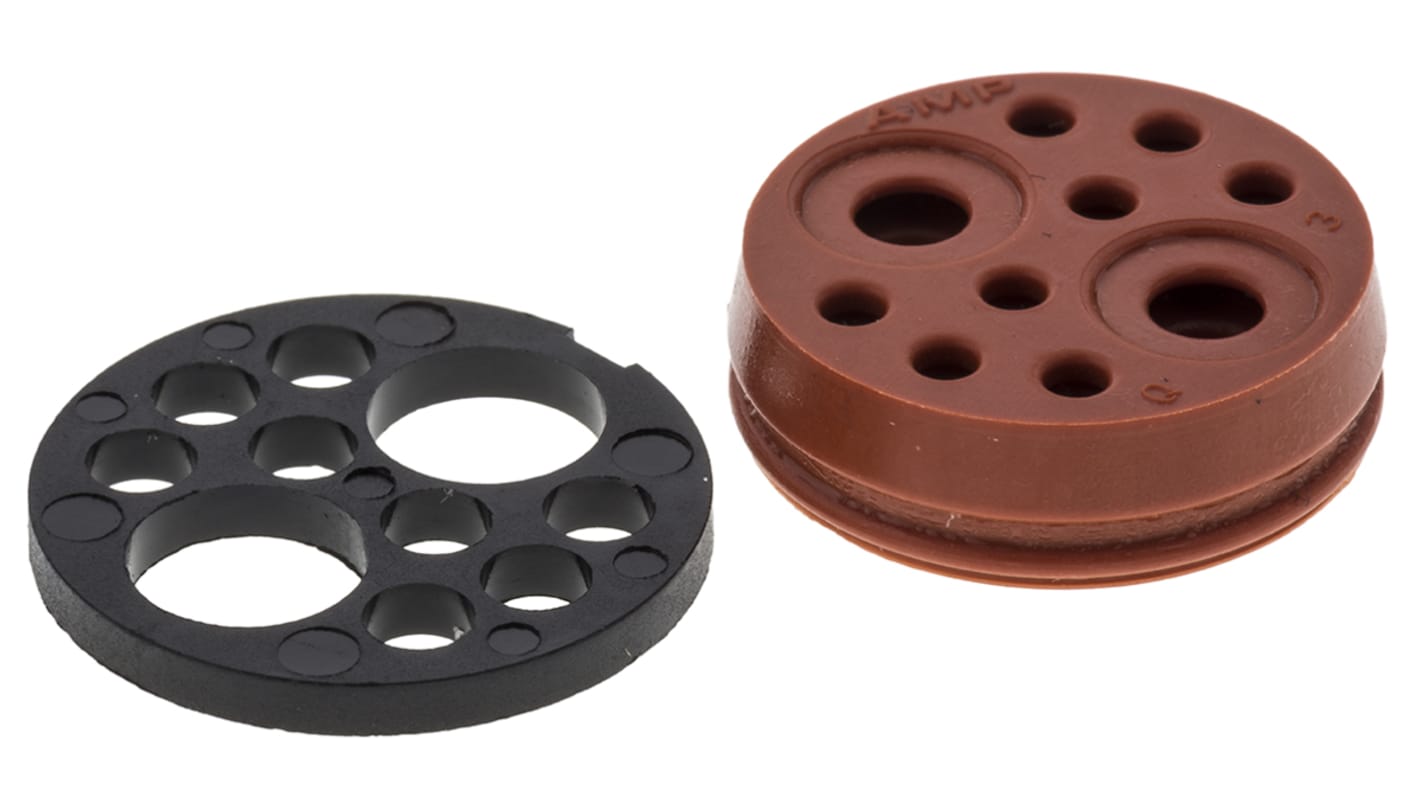

A wire entry seal is required in conjunction with the backshell
Include the flange seal with the panel socket for full sealing capabilities
Series 6 power connectors have 8 signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the backshell
Include the flange seal with the panel socket for full sealing capabilities
Plugs, Sockets & Seals
Based on the successful and popular standard CPC series, these fully sealed IP65 power connectors utilise precision-formed Powerband contacts that offer a rating of up to 45A for single contacts, in isolation. Manufactured from high strength, impact resistant thermoplastic, rated UL94V-0, these connectors offer an economical, environmentally sealed solution.
Specifikationer
Attribute | Value |
---|---|
Shell Size | 17 |
Series | CPC |
