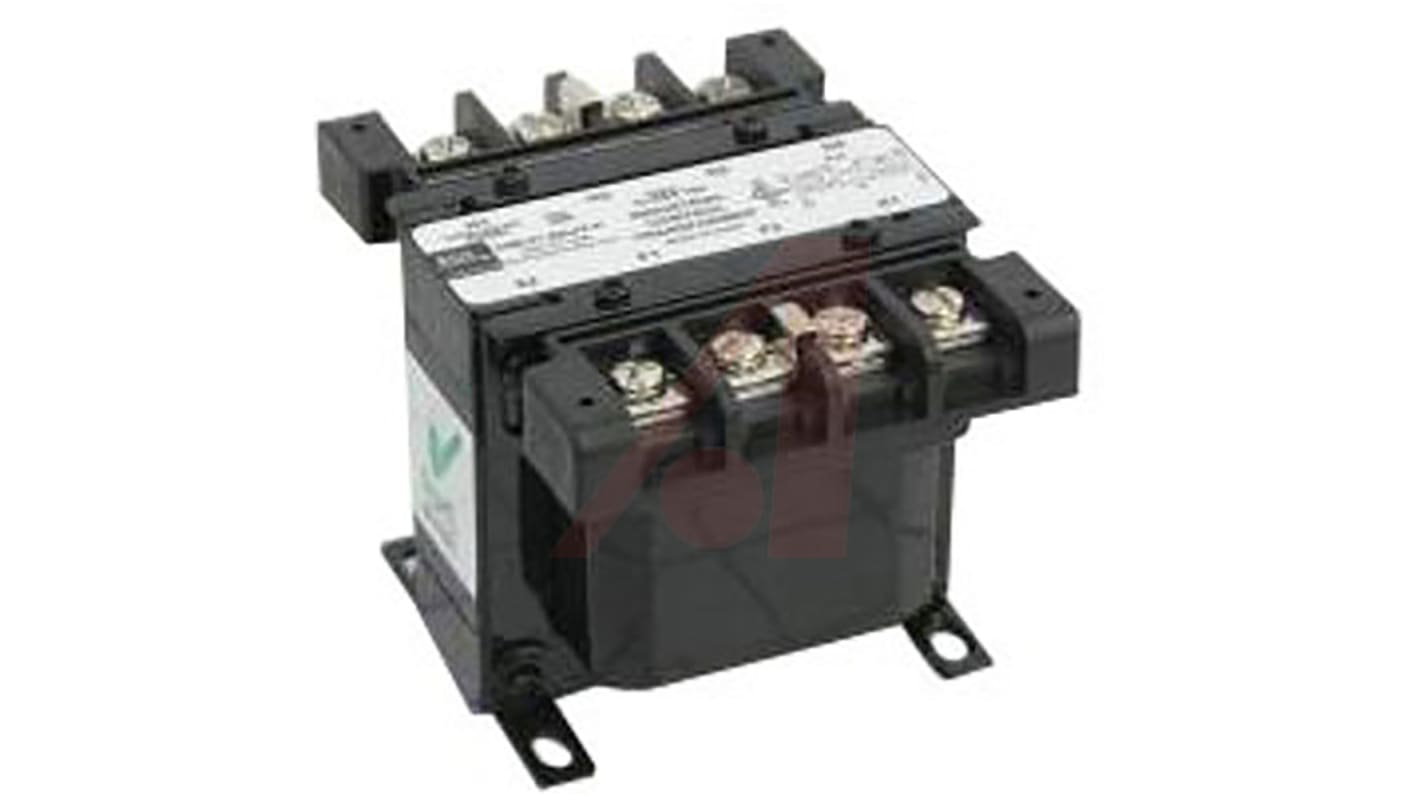

SolaHD 50VA Chassis Mounting Transformer, 24V

Se kategorien

Antal (1 enhet)*

652,59 kr

(exkl. moms)

815,74 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 12 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +652,59 kr

*vägledande pris

RS-artikelnummer:
891-3636
Tillv. art.nr:
E050D
Tillverkare / varumärke:
SolaHD
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

SolaHD

Primary Voltage Rating

120 V, 240V

Secondary Voltage Rating

24V

Power Rating

50VA

Mounting Type

Panel

Width

3.01in

Depth

3.99in

Dimensions

2.72 x 3.01 x 3.99

Weight

3lb

Maximum Operating Frequency

60Hz

SolaHD SBE Encapsulated Series Transformers


The SBE Encapsulated series control transformers have been epoxy encapsulated thus sealing the transformer windings from moisture, dirt and industrial contaminants. They feature extra deep, moulded terminal barriers which helps to reduce the possibility of electrical failure from arcing or frayed lead wires. Thanks to their rugged design and high reliability they are ideally suited for all industrial applications and environments.

50 to 1000 VA, 50/60 Hz suitable for worldwide applications
Interleaved copper windings reduce I²R losses and maximize efficiency
+55 °C Rise, +105 °C insulation system to minimize heat
Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants
Meets or Exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability
Integrally moulded, flame retardant (IEC 707 / ISO Class 1210) Terminal Blocks provide greater terminal contact area and improved conductivity
Heavy gauge steel mounting plate
Mounting dimensions are compatible with similar control transformers
