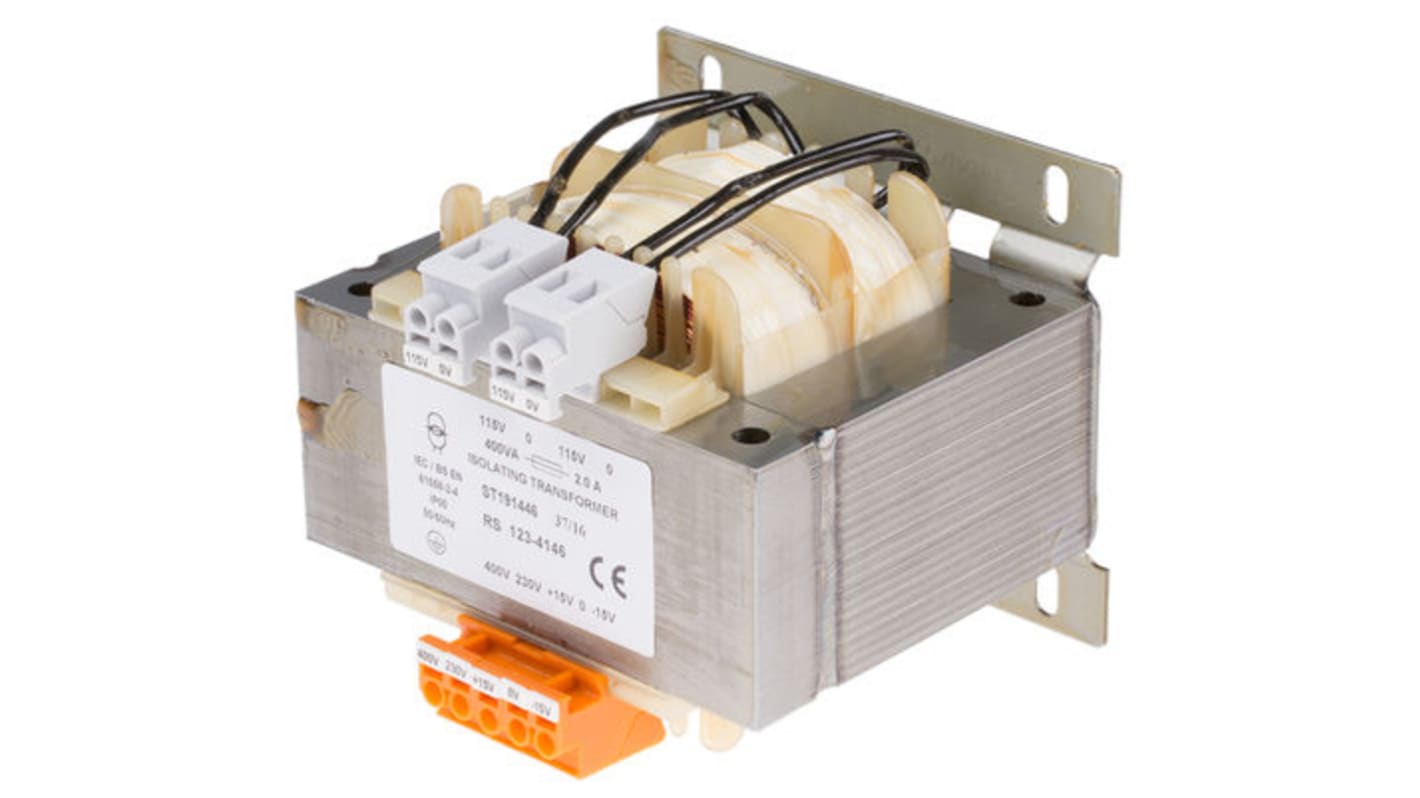

RS PRO 400VA 2 Output Chassis Mounting Transformer, 2 x 115V ac, IEC 61558-2-4

RS-artikelnummer:: 123-4146
Tillverkare / varumärke:: RS PRO

RS PRO 400VA 2 Output Chassis Mounting Transformer, 2 x 115V ac, IEC 61558-2-4

Antal (1 enhet)*

2 117,78 kr

(exkl. moms)

2 647,22 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 51 enhet(er) från den 15 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	2 117,78 kr

*vägledande pris

RS-artikelnummer:: 123-4146
Tillverkare / varumärke:: RS PRO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	RS PRO
	Primary Voltage Rating	230 → 400V ac
	Secondary Voltage Rating	2 x 115V ac
	Power Rating	400VA
	Number of Outputs	2
	Mounting Type	DIN Rail, Panel
	Primary Winding Resistance	2.7/6.6Ω
	Length	120mm
	Efficiency	90%
	Width	104mm
	Depth	125mm
	Dimensions	120 x 104 x 125mm
	Fixing Hole Diameter	5.8 x 12mm
	Weight	5.2kg
	Minimum Operating Frequency	50Hz
	Standards Met	IEC 61558-2-4
	Maximum Operating Frequency	60Hz
	Maximum Temperature	(Ambient) 70°C
	Minimum Temperature	-30°C

	Välj alla
	Brand RS PRO
	Primary Voltage Rating 230 → 400V ac
	Secondary Voltage Rating 2 x 115V ac
	Power Rating 400VA
	Number of Outputs 2
	Mounting Type DIN Rail, Panel
	Primary Winding Resistance 2.7/6.6Ω
	Length 120mm
	Efficiency 90%
	Width 104mm
	Depth 125mm
	Dimensions 120 x 104 x 125mm
	Fixing Hole Diameter 5.8 x 12mm
	Weight 5.2kg
	Minimum Operating Frequency 50Hz
	Standards Met IEC 61558-2-4
	Maximum Operating Frequency 60Hz
	Maximum Temperature (Ambient) 70°C
	Minimum Temperature -30°C

COO (ursprungsland):: PL

RS PRO Chassis Mounting Transformer

These RS PRO high-quality panel isolation transformers are designed with versatility and durability in mind and are for use in general applications. These single-phase transformers feature screw connectors for multiple input and brackets for screw fixing or for DIN Rails. They have a standard primary winding 0-230-400VAC with a +/- 15 V adjustment possibility around 0 and are 100% electrical and flash tested.

Features and Benefits

High-quality safety and isolation transformers

Second section bobbin for full separation between primary and secondary winding

Low noise laminations

Earth terminal provided

High efficiency

Varnish impregnated

What does a transformer do?

Transformers increase or decrease voltages within an AC circuit. You will find them in almost all electrical environments. As an example, some of the different types of power management units and how their voltages work is listed below.

Transformers - AC to AC
Power Supplies - AC to DC
DC Converters - DC to DC
Inverters - DC to AC (Pure or modified sine wave)
