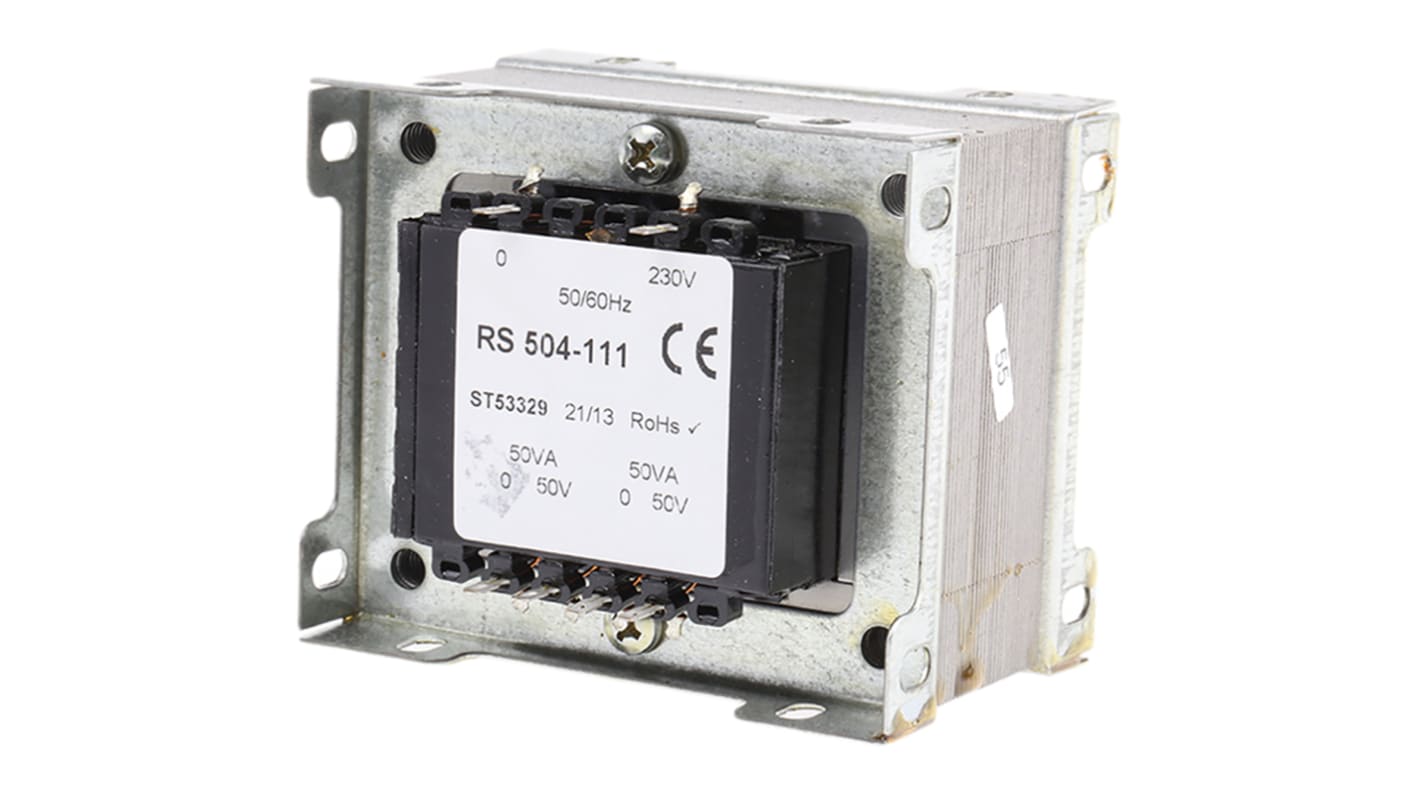

RS PRO 100VA 2 Output Chassis Mounting Transformer, 50V ac
- RS-artikelnummer:
- 504-111
- Tillverkare / varumärke:
- RS PRO
18 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
818,44 kr
(exkl. moms)
1 023,05 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 24 | 818,44 kr |
| 25 + | 749,68 kr |
- RS-artikelnummer:
- 504-111
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PL
Produktdetaljer
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA
Chassis Mount Frame 75VA to 200VA
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Optional terminal shrouds for 75VA and 100VA(503-928)
Standards
BS3535; EN 60 742
Specifikationer
Attribute | Value |
|---|---|
| Primary Voltage Rating | 230V ac |
| Secondary Voltage Rating | 50V ac |
| Power Rating | 100VA |
| Number of Outputs | 2 |
| Mounting Type | Chassis |
| Length | 89mm |
| Width | 68mm |
| Depth | 75mm |
| Dimensions | 89 x 68 x 75mm |
| Fixing Hole Diameter | 4.7 x 7.9mm |
| Weight | 1.6kg |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
