Schneider Electric 250VA 2 Output Chassis Mounting Transformer, 24 → 48V
- RS-artikelnummer:
- 482-786
- Tillv. art.nr:
- ABT7PDU025B
- Tillverkare / varumärke:
- Schneider Electric

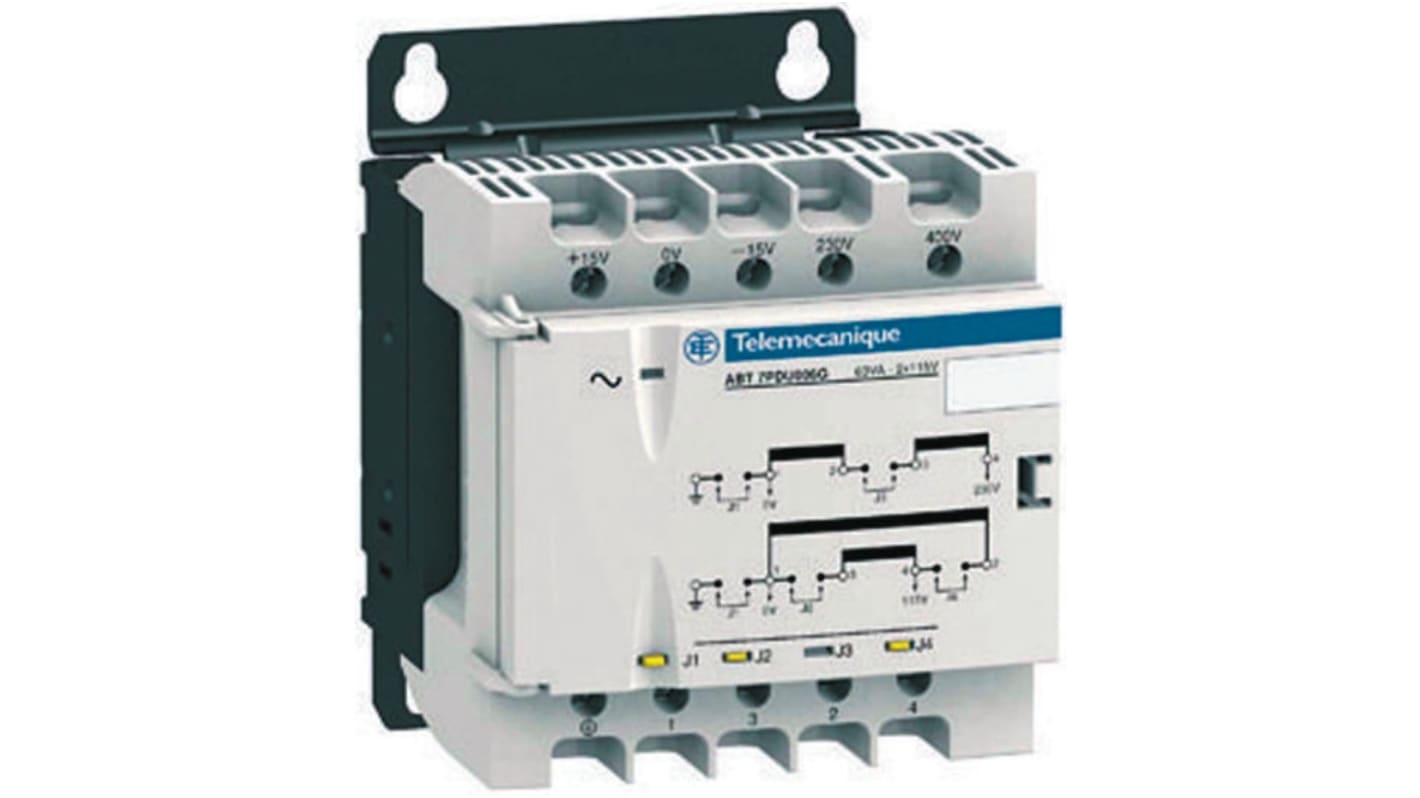

Denna bild representerar endast produktgruppen
Se kategorien
1 I lager för avsändande samma dag
Inom 5 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
1 757,00 kr
(exkl. moms)
2 196,25 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 1 757,00 kr |
10 - 24 | 1 685,02 kr |
25 - 49 | 1 639,27 kr |
50 - 99 | 1 577,74 kr |
100 + | 1 537,43 kr |
- RS-artikelnummer:
- 482-786
- Tillv. art.nr:
- ABT7PDU025B
- Tillverkare / varumärke:
- Schneider Electric
- COO (Country of Origin):
- CZ
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CZ
Produktdetaljer
ABT7PDU series transformers
This range of covered (up to 320 VA) or uncovered (from 400 to 2500 VA) transformers features double winding.
Secondary winding coupling series or parallel with signalling LED and earthing by internal jumpers (up to 320 VA) or plug-in jumpers (from 400 to 2500 VA).
Panel mounting using 4 screws.
Secondary winding coupling series or parallel with signalling LED and earthing by internal jumpers (up to 320 VA) or plug-in jumpers (from 400 to 2500 VA).
Panel mounting using 4 screws.
Approvals
CURus, ENEC
Laminated Frame 230Vac Primary 75VA to 200VA (Multi Tapped)
Chassis mounting frame construction low voltage mains transformers with a single 230Vac 50/60Hz primary winding.
Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Multi-hole frame fixing
Solder tag terminations
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Fully shrouded bobbins
Full varnish impregnation
Multi-hole frame fixing
Solder tag terminations
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Specifikationer
Attribute | Value |
Primary Voltage Rating | 230 → 400V |
Secondary Voltage Rating | 24 → 48V |
Power Rating | 250VA |
Number of Outputs | 2 |
Mounting Type | Chassis |
Length | 123mm |
Width | 142mm |
Depth | 153mm |
Dimensions | 123 x 142 x 153mm |
Weight | 5.6kg |
Minimum Operating Frequency | 47Hz |
Better World Product | Yes |
Maximum Operating Frequency | 63Hz |
Maximum Temperature | +40°C |
Minimum Temperature | -20°C |
Better World Verification | Green Premium |
