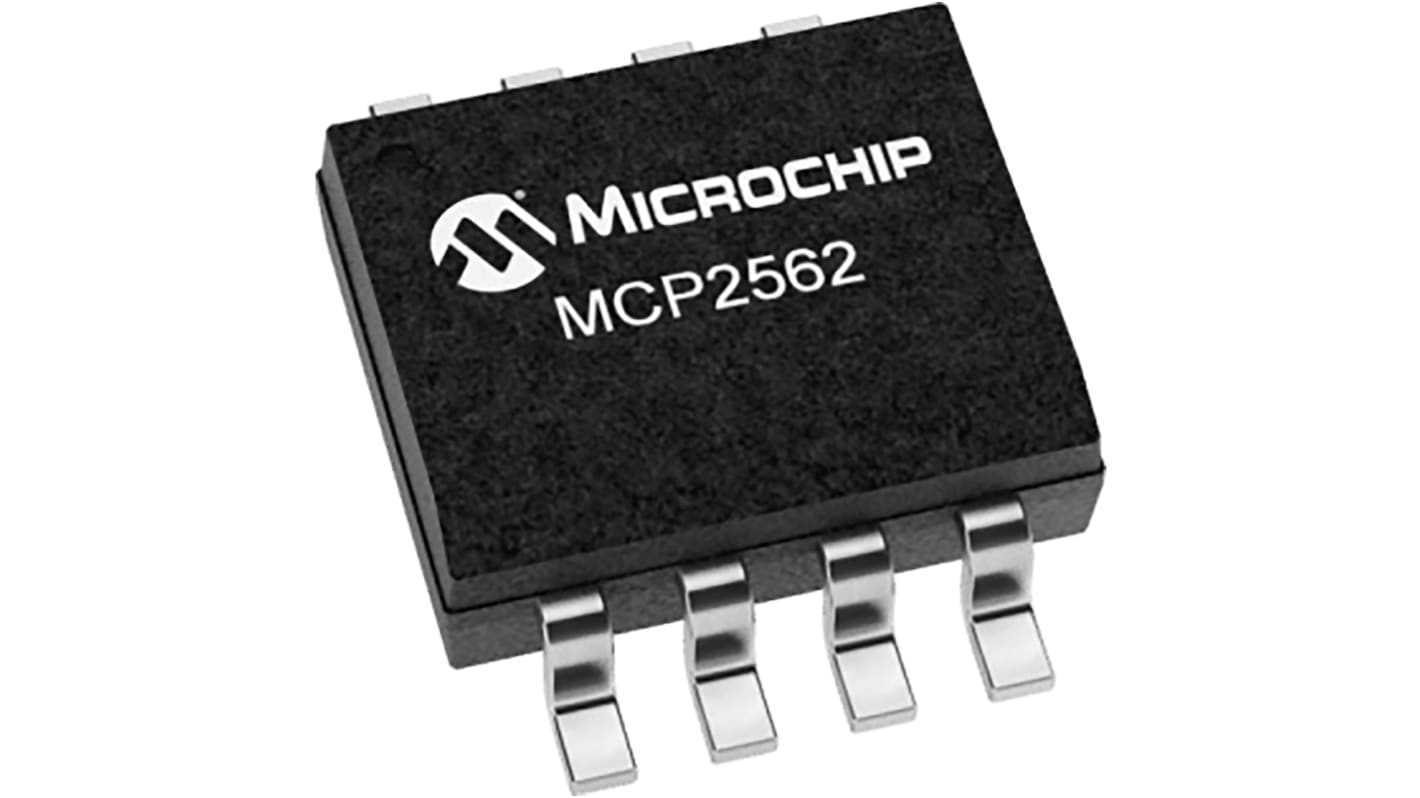

Microchip MCP2562T-E/SN, CAN Transceiver 1Mbps ISO 11898-2, ISO 11898-5, 8-Pin SOIC

Se alla CAN Interface Ics
Mängdrabatt möjlig

Antal (1 förpackning med 10 enheter)*

118,83 kr

(exkl. moms)

148,54 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 1 900 enhet(er) levereras från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
10 - 2011,883 kr118,83 kr
30 +11,446 kr114,46 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
177-3186
Tillv. art.nr:
MCP2562T-E/SN
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Maximum Data Rate

1Mbps

Number of Transceivers

1

Standard Supported

ISO 11898-2, ISO 11898-5

IC Type

CAN Transceiver IC

Power Down Mode

Normal, Standby

Maximum Supply Current

70 mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

4.9 x 3.9 x 1.5mm

Length

4.9mm

Width

3.9mm

Height

1.5mm

Maximum Operating Supply Voltage

5.5 V

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

4.5 V

Minimum Operating Temperature

-40 °C

Automotive Standard

AEC-Q100

COO (Country of Origin):
US
The MCP2561/2 is Microchip Technology Inc. second generation high-speed CAN transceiver. It serves as an interface between a CAN protocol controller and the physical two-wire CAN bus. The device family members are: • MCP2561 with SPLIT pin • MCP2562 with VIO pin

Supports 1 Mb/s operation
Implements ISO-11898-5 standard physical layer requirements
Very low standby current (Typ: 5μA)
VIO supply pin (MCP2562) to interface directly to CAN controllers and microcontrollers with 1.8V to 5V I/O
SPLIT output pin (MCP2561) to stabilize common mode in biased split termination schemes
CAN bus pins are disconnected when device is unpowered. An unpowered node or brown-out event will not load the CAN bus
Detection of ground fault, Permanent dominant detection on TXD, Permanent dominant detection on bus
Power-on Reset and voltage brown-out protectionon VDD and VIO pin
