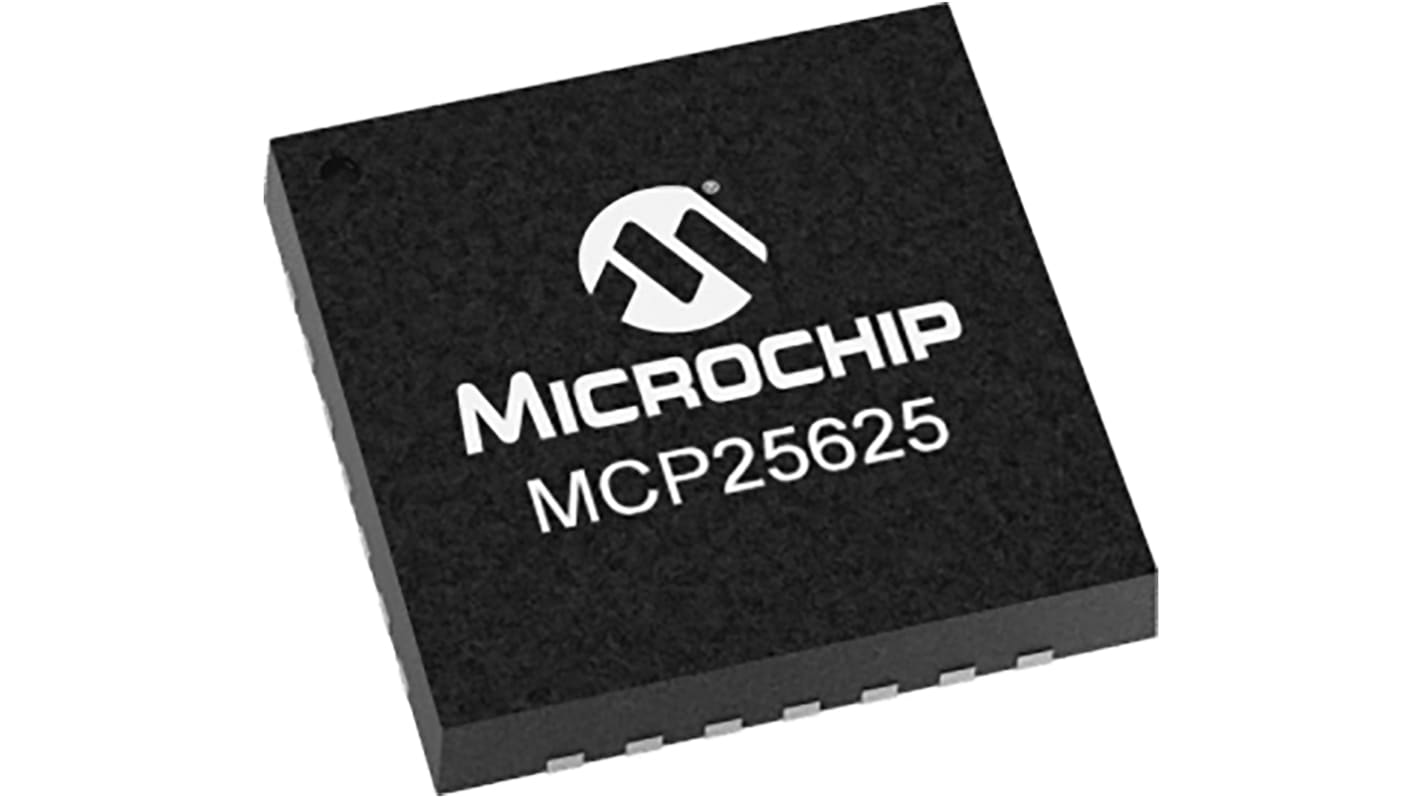

Microchip MCP25625T-E/ML, CAN Controller 1Mbps CAN 2.0B, 28-Pin QFN
- RS-artikelnummer:
- 177-2856
- Tillv. art.nr:
- MCP25625T-E/ML
- Tillverkare / varumärke:
- Microchip
Antal (1 rulle med 1600 enheter)*
40 427,20 kr
(exkl. moms)
50 534,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 1 600 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 1600 + | 25,267 kr | 40 427,20 kr |
*vägledande pris
- RS-artikelnummer:
- 177-2856
- Tillv. art.nr:
- MCP25625T-E/ML
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Maximum Data Rate | 1Mbps | |
| Number of Transceivers | 1 | |
| Standard Supported | CAN 2.0B | |
| IC Type | CAN Controller IC | |
| Power Down Mode | Sleep, Standby | |
| Maximum Supply Current | 10 mA | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 28 | |
| Dimensions | 6 x 6 x 0.92mm | |
| Length | 6mm | |
| Width | 6mm | |
| Height | 0.92mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Maximum Data Rate 1Mbps | ||
Number of Transceivers 1 | ||
Standard Supported CAN 2.0B | ||
IC Type CAN Controller IC | ||
Power Down Mode Sleep, Standby | ||
Maximum Supply Current 10 mA | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 28 | ||
Dimensions 6 x 6 x 0.92mm | ||
Length 6mm | ||
Width 6mm | ||
Height 0.92mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
The MCP25625 is a complete, cost-effective and small-footprint CAN solution that can be easily added to a microcontroller with an available SPI interface. The MCP25625 interfaces directly with microcontrollers operating at 2.7V to 5.5V, there are no external level shifters required. In addition, the MCP25625 connects directly to the physical CAN bus, supporting all requirements for CAN high-speed transceivers.
Stand-Alone CAN2.0B Controller with Integrated CAN Transceiver and Serial Peripheral Interface (SPI)
Up to 1 Mb/s Operation
Very Low Standby Current (10 μA, typical).
Up to 10 MHz SPI Clock Speed
Interfaces Directly with Microcontrollers with 2.7V to 5.5V I/O
Available in SSOP-28L and 6x6 QFN-28L
Temperature Ranges:
Extended (E): -40°C to +125°C
Up to 1 Mb/s Operation
Very Low Standby Current (10 μA, typical).
Up to 10 MHz SPI Clock Speed
Interfaces Directly with Microcontrollers with 2.7V to 5.5V I/O
Available in SSOP-28L and 6x6 QFN-28L
Temperature Ranges:
Extended (E): -40°C to +125°C
