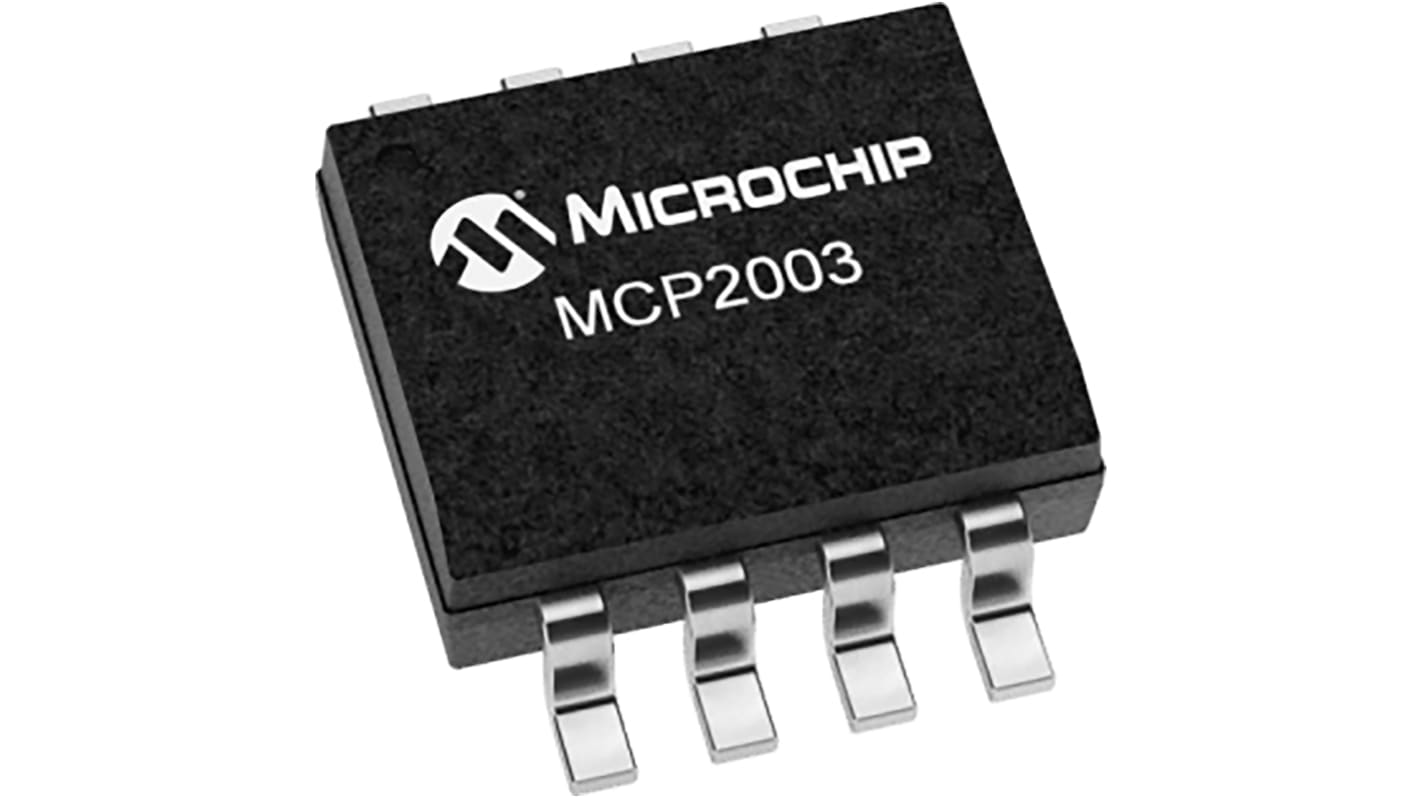

Microchip MCP2003B-E/SN, LIN Transceiver 20kBd, 8-Pin SOIC

Se alla CAN Interface Ics
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
177-1617
Tillv. art.nr:
MCP2003B-E/SN
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Maximum Data Rate

20kBd

Number of Transceivers

1

IC Type

LIN Transceiver IC

Maximum Supply Current

1 mA

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

4.9 x 3.9 x 1.5mm

Length

4.9mm

Width

3.9mm

Height

1.5mm

Maximum Operating Supply Voltage

30 V

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

5.5 V

Automotive Standard

AEC-Q100

Minimum Operating Temperature

-40 °C

Stand-alone LIN Transceiver MCP200x family members, 8-pin PDIP, DFN and SOIC packages MCP2003-LIN-compatible driver with WAKE pin MCP2004-LIN-compatible driver with FAULT/TXE pin. This device provides a bidirectional, half-duplex communication physical interface. The device is short circuit and overtemp protected by internal circuitry. The device has been specifically designed to operate in the automotive operating environment.

Support Baud Rates up to 20 Kbaud with LIN-compatible output driver
43V load dump protected
Very low EMI Very high ESD immunity
>20kV on VBB
>14kV on LBUS
Very high immunity to RF disturbances
Wide supply voltage, 6.0V - 27.0V continuous
Extended Temperature Range: -40 to +125°C
Interface to PIC® EUSART and standard USARTs
Local Interconnect Network (LIN) bus pin:
Internal pull-up resistor and diode
Protected against battery shorts
Protected against loss of ground
High current drive
Automatic thermal shutdown
