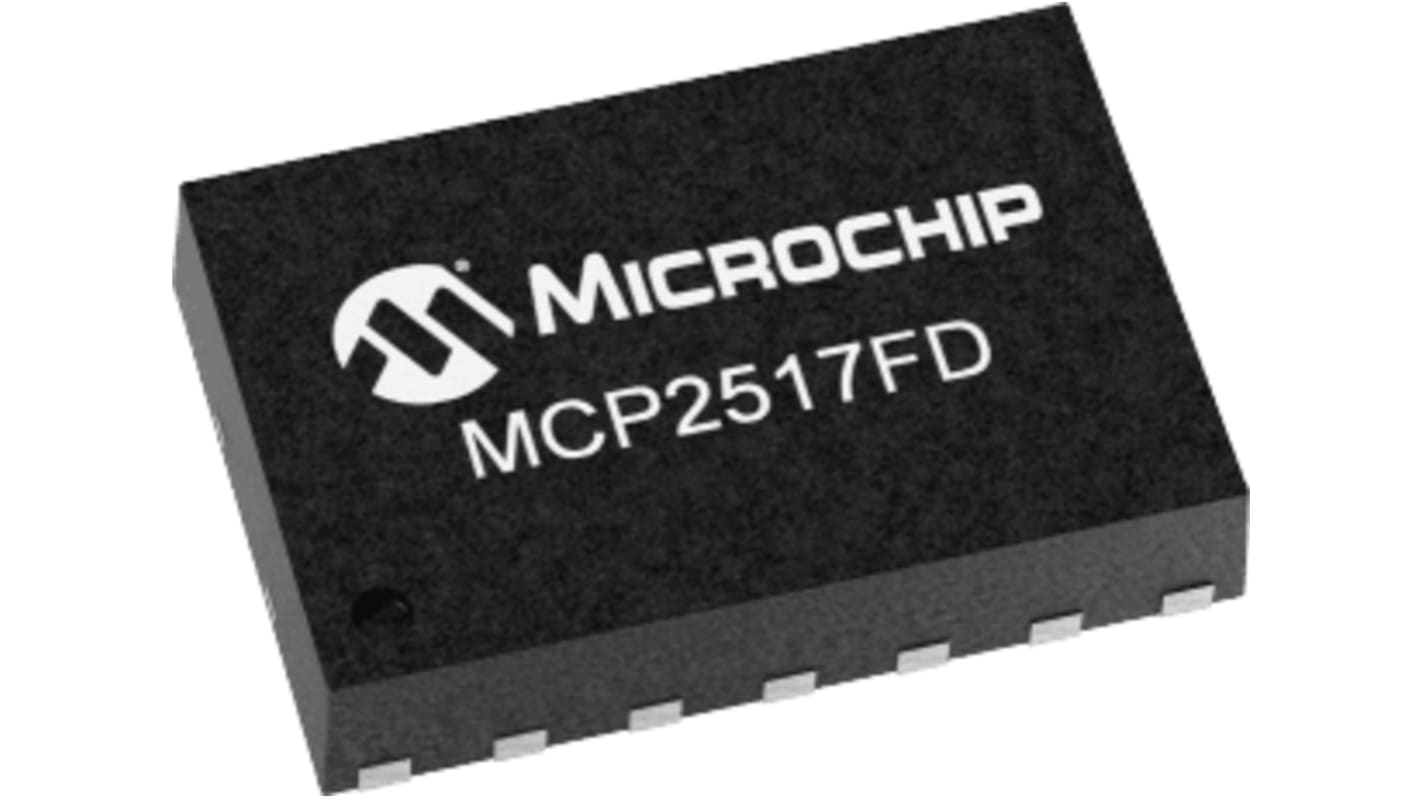

Microchip MCP2517FD-H/JHA, CAN Controller 8 Mbps, 14-Pin VDFN

RS-artikelnummer:: 162-3017
Tillv. art.nr:: MCP2517FD-H/JHA
Tillverkare / varumärke:: Microchip

Microchip MCP2517FD-H/JHA, CAN Controller 8 Mbps, 14-Pin VDFN

Mängdrabatt möjlig

Antal (1 förpackning med 2 enheter)*

57,79 kr

(exkl. moms)

72,238 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

1 608 enhet(er) levereras från den 13 februari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per förpackning*
2 - 8	28,895 kr	57,79 kr
10 - 22	24,64 kr	49,28 kr
24 - 98	24,08 kr	48,16 kr
100 +	23,41 kr	46,82 kr

*vägledande pris

RS-artikelnummer:: 162-3017
Tillv. art.nr:: MCP2517FD-H/JHA
Tillverkare / varumärke:: Microchip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Microchip
	Product Type	CAN Controller
	Maximum Data Rate	8Mbps
	Number of Transceivers	1
	Sub Type	CAN Controller
	Power Down Mode	Sleep, Standby
	Supply Current	20mA
	Mount Type	Surface
	Interface Type	CAN 2.0B
	Package Type	VDFN
	Pin Count	14
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	5.5V
	ESD Protection	Yes
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Length	4.5mm
	Height	0.85mm
	Width	3 mm
	Standards/Approvals	No
	Series	MCP2517FD
	Automotive Standard	No

	Välj alla
	Brand Microchip
	Product Type CAN Controller
	Maximum Data Rate 8Mbps
	Number of Transceivers 1
	Sub Type CAN Controller
	Power Down Mode Sleep, Standby
	Supply Current 20mA
	Mount Type Surface
	Interface Type CAN 2.0B
	Package Type VDFN
	Pin Count 14
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 5.5V
	ESD Protection Yes
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Length 4.5mm
	Height 0.85mm
	Width 3 mm
	Standards/Approvals No
	Series MCP2517FD
	Automotive Standard No

Datasheet

COO (Country of Origin):: US

The MCP2517FD is a cost-effective and small-footprint External CAN FD Controller that can be easily added to a microcontroller with an available SPI interface. Therefore, a CAN FD channel can be easily added to a microcontroller that is either lacking a CAN FD peripheral or that doesn't have enough CAN FD channels. The MCP2517FD supports both CAN frames in the Classical format (CAN 2.0B) and CAN Flexible Data Rate (CAN FD) format

Supports both CAN 2.0B and CAN FD

Arbitration Bit Rate up to 1 Mbps

Data Bit Rate up to 8 Mbps

Up to 20MHz SPI Clock Speed

31 FIFOs configurable as transmit or receive

32 Flexible Filter and Mask Objects

One Transmit Queue

32-bit Time Stamp

Bus Health Diagnostics and Error Counters

VDD:2.7V-5.5V

Active Current Max:12mA @ 5.5V, 40 MHz CAN Clock

Sleep Current:10uA, Typical

Temperature Range:-40C to +150C

Packages:VDFN14 (Wettable Flanks), SOIC14
