RS PRO Insulated Male Crimp Bullet Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4mm Bullet diameter, Red
- RS-artikelnummer:
- 178-8393
- Tillverkare / varumärke:
- RS PRO
1900 I lager för avsändande samma dag
Pris (ex. moms) Var (i en påse med 100)
0,578 kr
(exkl. moms)
0,722 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 100 - 900 | 0,578 kr | 57,80 kr |
| 1000 - 1900 | 0,526 kr | 52,60 kr |
| 2000 - 4900 | 0,48 kr | 48,00 kr |
| 5000 - 9900 | 0,446 kr | 44,60 kr |
| 10000 + | 0,404 kr | 40,40 kr |
- RS-artikelnummer:
- 178-8393
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

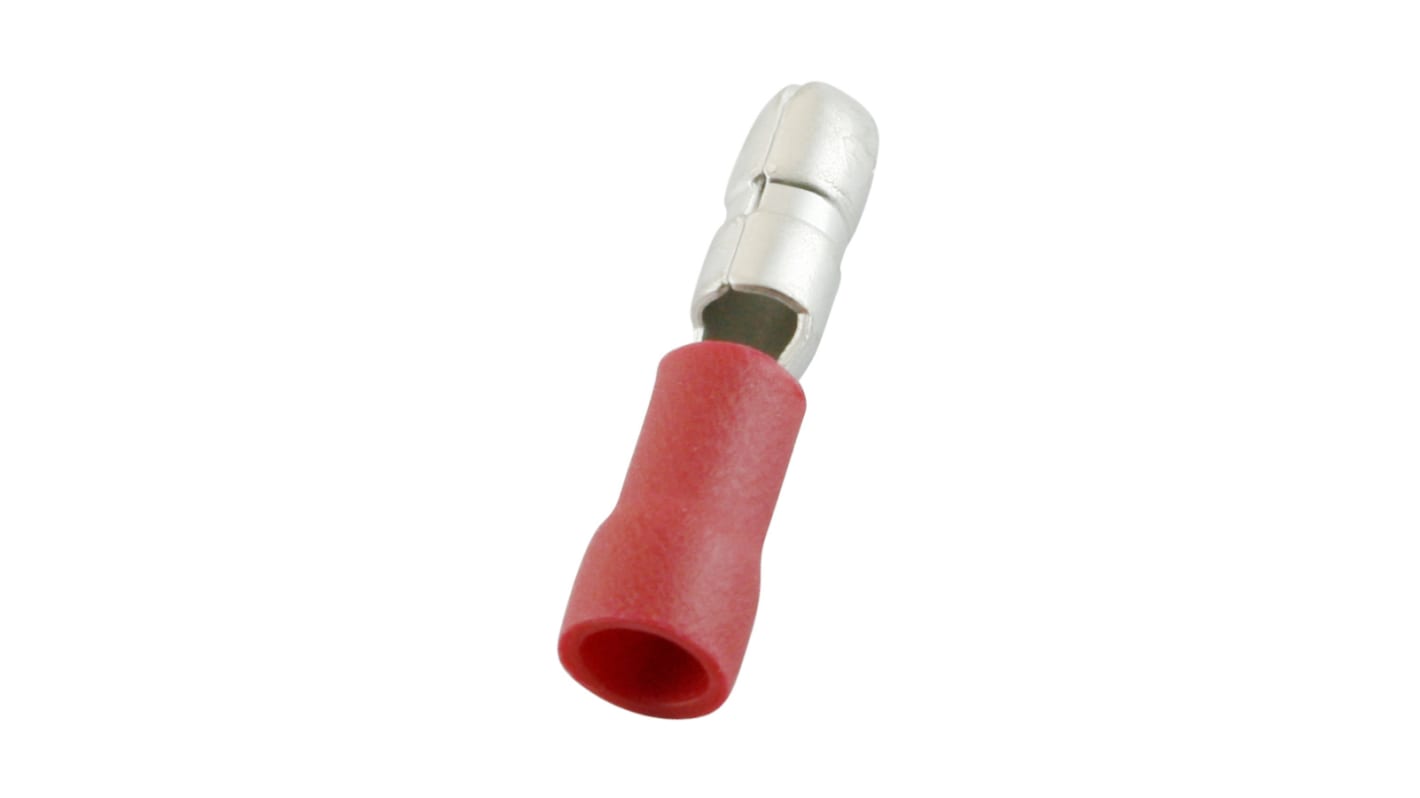

RS PRO Insulated Male Crimp Bullet Connector - Red
Introducing the RS PRO Bullet Connectors – the ultimate solution for hassle-free, solder-free terminations. Say goodbye to tedious soldering and hello to effortless installation. These crimp terminal bullet connectors are designed to securely terminate both stranded and solid wire electrical connections, giving you peace of mind with their corrosion-resistant properties.
Moisture and oxygen don't stand a chance against the snug design of these connectors, ensuring a tight seal that keeps your connections safe and reliable. The bullet crimp simply pushes in and snaps together, providing you with a secure connection in no time.
But wait, there's more! For those seeking an extra level of confidence, you can double-crimp these connectors onto the wire for an even stronger hold. With RS PRO Bullet Connectors, installation becomes a breeze while maintaining the utmost reliability.
Upgrade your electrical connections with RS PRO Bullet Connectors – the trusted choice for solder-free terminations.
Moisture and oxygen don't stand a chance against the snug design of these connectors, ensuring a tight seal that keeps your connections safe and reliable. The bullet crimp simply pushes in and snaps together, providing you with a secure connection in no time.
But wait, there's more! For those seeking an extra level of confidence, you can double-crimp these connectors onto the wire for an even stronger hold. With RS PRO Bullet Connectors, installation becomes a breeze while maintaining the utmost reliability.
Upgrade your electrical connections with RS PRO Bullet Connectors – the trusted choice for solder-free terminations.
Features and Benefits
- Bullet diameter of 4 mm
- Red colour
- Brass contact material
- Male gender
- Insulated
- Vinyl insulation material
- Maximum wire size of 22 AWG
- Minimum wire size of 16 AWG
- Maximum wire size of 1.5 mm²
- Minimum wire size of 0.5 mm²
- Overall length of 21mm
Small Pack Size
Per Unit, RS stock no: 178-8393
Large Pack Size
RS stock no: 270-7610
Specifikationer
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Gender | Male |
| Overall Length | 21mm |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Bullet Diameter | 4mm |
| Colour | Red |
| Contact Material | Brass |
