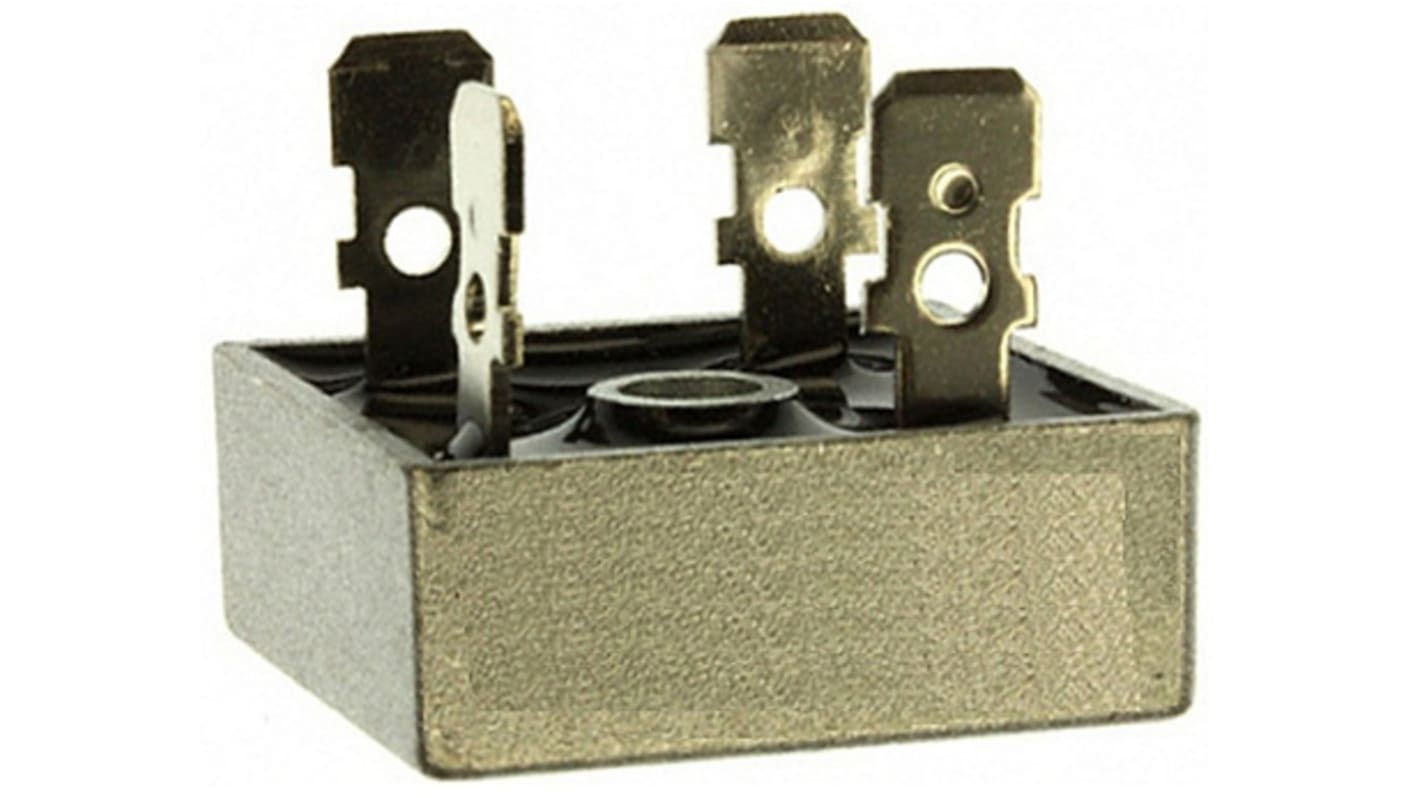

HY Electronic Corp Bridge Rectifier, 600 V 500 A, 4-Pin Single

RS-artikelnummer:: 917-9013P
Tillv. art.nr:: KBPC5006
Tillverkare / varumärke:: HY Electronic Corp

HY Electronic Corp Bridge Rectifier, 600 V 500 A, 4-Pin Single

Mängdrabatt möjlig

Antal 100 enheter (levereras i en låda)*

4 148,50 kr

(exkl. moms)

5 185,60 kr

(inkl. moms)

Lägg till 100 enheter för att få fri frakt

Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.

I lager

Dessutom levereras 320 enhet(er) från den 05 februari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
100 - 240	41,485 kr
250 - 990	40,432 kr
1000 +	39,402 kr

*vägledande pris

RS-artikelnummer:: 917-9013P
Tillv. art.nr:: KBPC5006
Tillverkare / varumärke:: HY Electronic Corp

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	HY Electronic Corp
	Product Type	Bridge Rectifier
	Peak Reverse Repetitive Voltage Vrrm	600V
	Mount Type	Through Hole
	Package Type	KBPC
	Number of Phases	1
	Pin Count	4
	Configuration	Single
	Maximum Operating Temperature	150°C
	Forward Current If	50A
	Minimum Operating Temperature	-55°C
	Peak Non-Repetitive Forward Surge Current Ifsm	500A
	Peak Forward Voltage Vf	1.1V
	Width	28.8 mm
	Series	KBPC5
	Standards/Approvals	No
	Length	28.8mm
	Peak Reverse Current Ir	10μA
	Height	11.23mm
	Automotive Standard	No

	Välj alla
	Brand HY Electronic Corp
	Product Type Bridge Rectifier
	Peak Reverse Repetitive Voltage Vrrm 600V
	Mount Type Through Hole
	Package Type KBPC
	Number of Phases 1
	Pin Count 4
	Configuration Single
	Maximum Operating Temperature 150°C
	Forward Current If 50A
	Minimum Operating Temperature -55°C
	Peak Non-Repetitive Forward Surge Current Ifsm 500A
	Peak Forward Voltage Vf 1.1V
	Width 28.8 mm
	Series KBPC5
	Standards/Approvals No
	Length 28.8mm
	Peak Reverse Current Ir 10μA
	Height 11.23mm
	Automotive Standard No

COO (Country of Origin):: CN

Bridge Rectifier - KBPC Series

The KBPC family of silicon bridge rectifiers has a reverse voltage of 600 V or 1000 V. The rectifiers offer different forward currents ranging from 15A to 50 A. There are two types available, the KBPC W and the KBPC series which comes with 0.25 in solder FAST ON terminals. They are used in AC to DC conversion and in printed circuit applications.

Surge overload: -240 A to 500 A peaks

Electrically isolated base -2000 V

Low forward voltage drop

Material: U/L recognition

Solder 0.25 FAST ON terminals (KBPC only)
