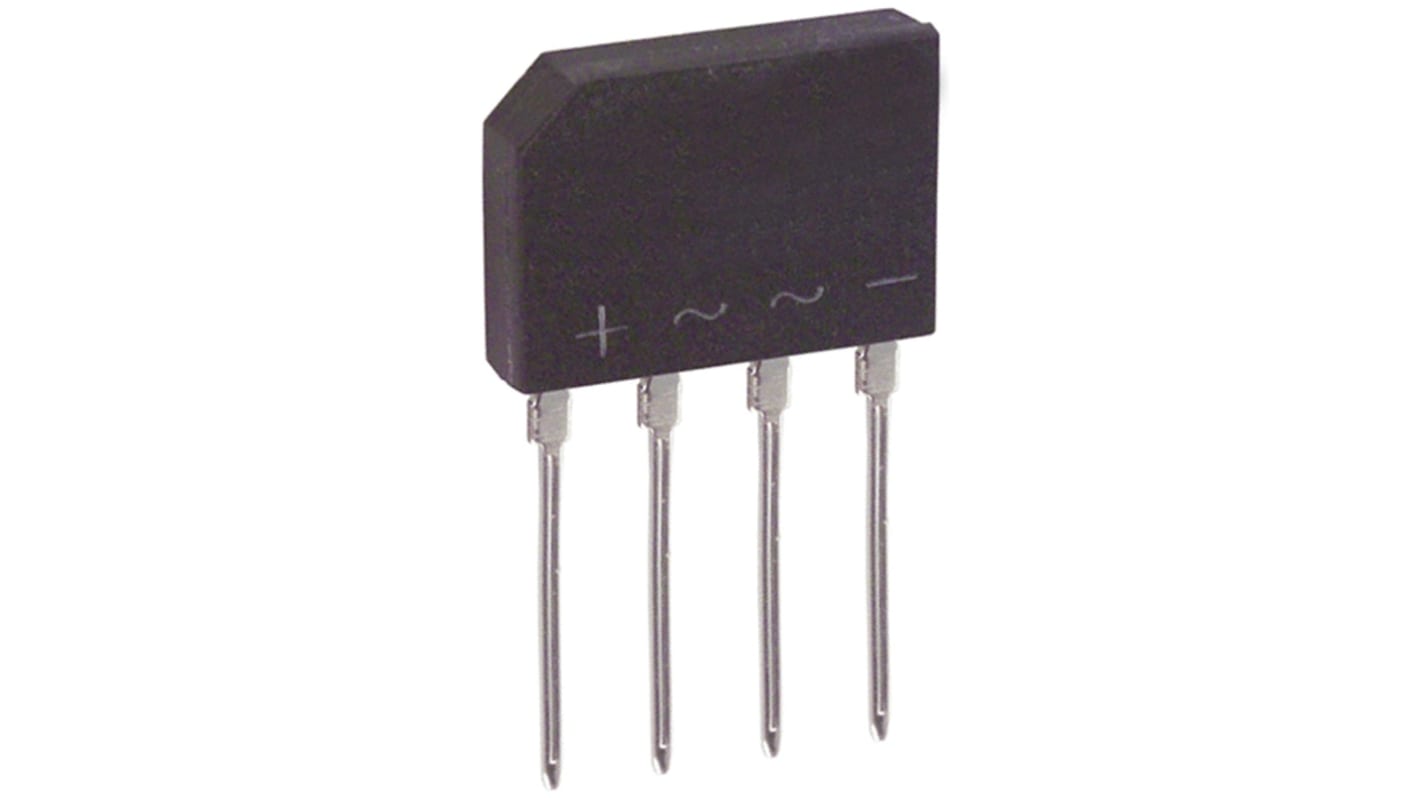

Diodes Inc Bridge Rectifier, 2A, 50V, 4-Pin

Se alla Bridge Rectifiers
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
823-2996
Tillv. art.nr:
KBP2005G
Tillverkare / varumärke:
DiodesZetex
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

DiodesZetex

Peak Average Forward Current

2A

Bridge Type

Single Phase

Peak Reverse Repetitive Voltage

50V

Mounting Type

Through Hole

Package Type

KBP

Pin Count

4

Configuration

Single

Peak Non-Repetitive Forward Surge Current

65A

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-65 °C

Peak Forward Voltage

1.1V

Peak Reverse Current

500µA

Dimensions

14.75 x 3.65 x 10.6mm

Length

14.75mm

Width

3.65mm

Height

10.6mm

SIL PCB Mounting, KBP series


Diodes Inc KBP series bridge rectifiers in SIL PCB Mounting package

High Case Dielectric Strength of 1500V RMS
Low Reverse Leakage Current
Ideal for Printed Circuit Board (PCB)

Approvals

UL, E94661


Bridge Rectifiers - Diodes Inc


A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
