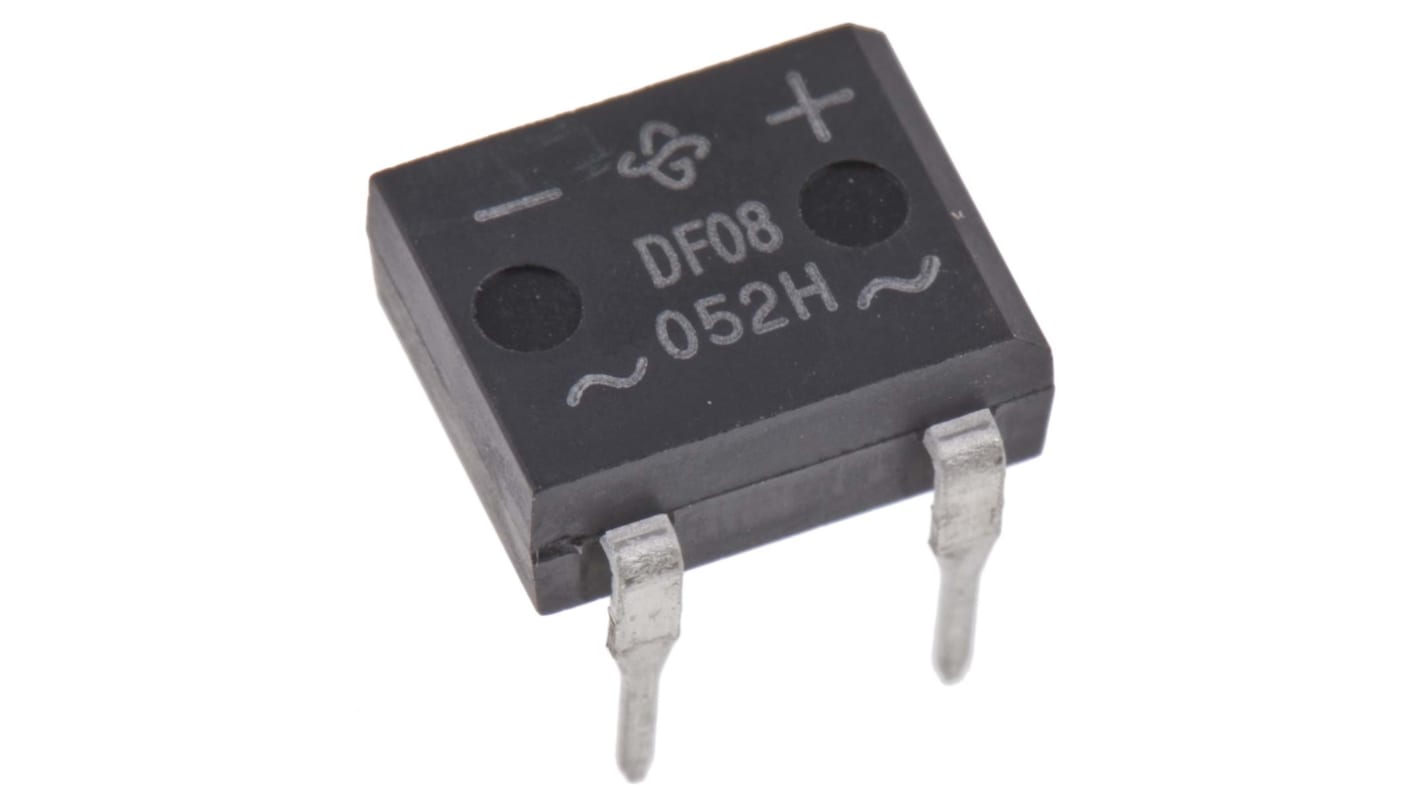

Vishay Bridge Rectifier, 800 V 50 A, 4-Pin Single
- RS-artikelnummer:
- 629-5103
- Distrelec artikelnummer:
- 304-43-070
- Tillv. art.nr:
- DF08M-E3/45
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 förpackning med 5 enheter)*
62,16 kr
(exkl. moms)
77,70 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 4 265 enhet(er), redo att levereras
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 - 45 | 12,432 kr | 62,16 kr |
| 50 - 245 | 9,812 kr | 49,06 kr |
| 250 - 495 | 8,736 kr | 43,68 kr |
| 500 - 1245 | 8,378 kr | 41,89 kr |
| 1250 + | 6,742 kr | 33,71 kr |
*vägledande pris
- RS-artikelnummer:
- 629-5103
- Distrelec artikelnummer:
- 304-43-070
- Tillv. art.nr:
- DF08M-E3/45
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Mount Type | Through Hole | |
| Package Type | DFM | |
| Number of Phases | 1 | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Minimum Operating Temperature | -55°C | |
| Forward Current If | 1A | |
| Peak Forward Voltage Vf | 1.1V | |
| Standards/Approvals | No | |
| Series | DF | |
| Height | 3.3mm | |
| Length | 8.51mm | |
| Peak Reverse Current Ir | 5μA | |
| Width | 6.5 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Mount Type Through Hole | ||
Package Type DFM | ||
Number of Phases 1 | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Minimum Operating Temperature -55°C | ||
Forward Current If 1A | ||
Peak Forward Voltage Vf 1.1V | ||
Standards/Approvals No | ||
Series DF | ||
Height 3.3mm | ||
Length 8.51mm | ||
Peak Reverse Current Ir 5μA | ||
Width 6.5 mm | ||
Automotive Standard No | ||
Bridge Rectifiers for PCB Mounting, DFxxM, DFxxMA Series, Vishay Semiconductor
Miniature Glass Passivated chip junction
Soldering pins for Printed Circuit Board (PCB) through hole mounting
Applicable for automated placement
High surge current capability
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Approvals
UL, E54214
