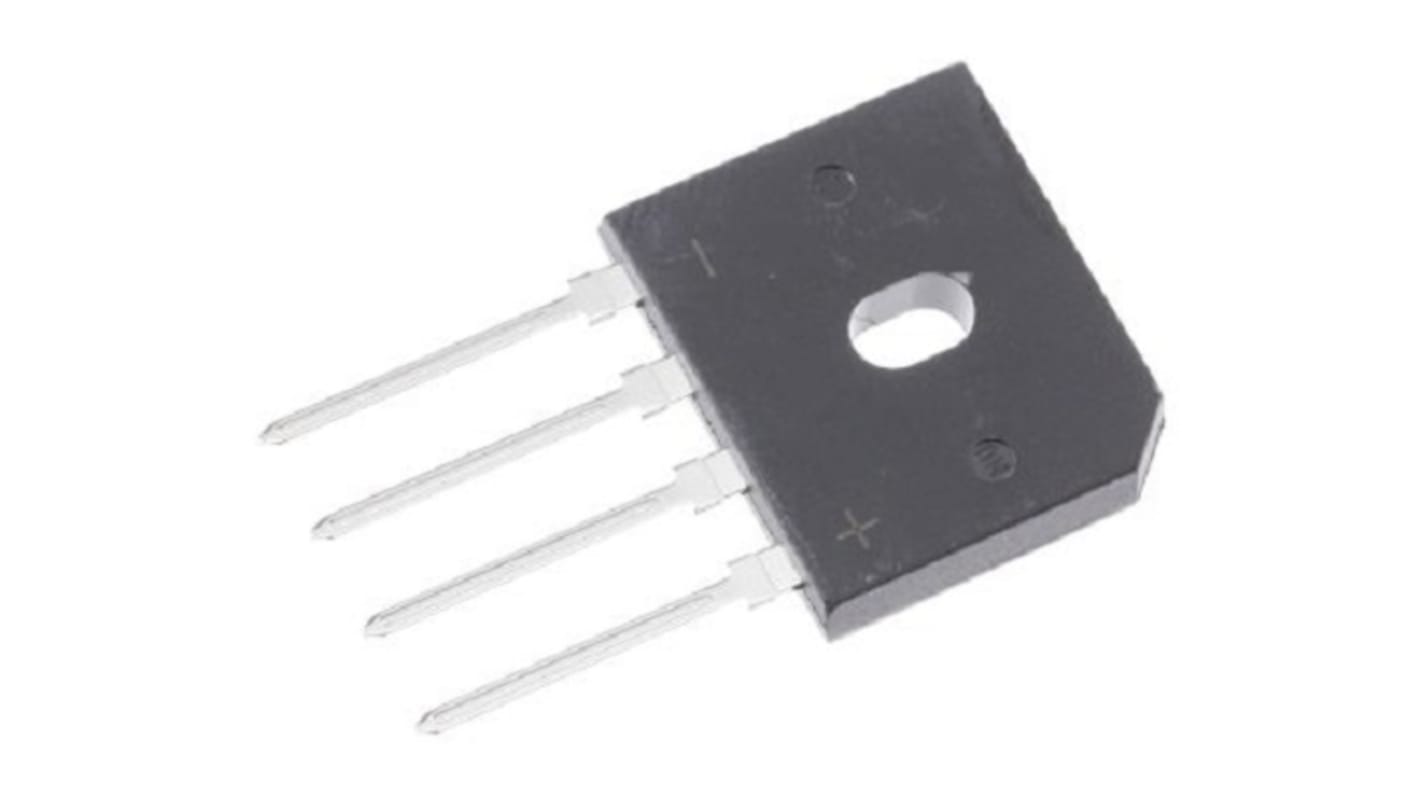

DiodesZetex Bridge Rectifier, 600 V 500 A, 4-Pin Single Phase
- RS-artikelnummer:
- 244-1976
- Tillv. art.nr:
- GBU10V06-TU
- Tillverkare / varumärke:
- DiodesZetex
Antal (1 förpackning med 10 enheter)*
68,41 kr
(exkl. moms)
85,51 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 220 enhet(er) från den 05 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 + | 6,841 kr | 68,41 kr |
*vägledande pris
- RS-artikelnummer:
- 244-1976
- Tillv. art.nr:
- GBU10V06-TU
- Tillverkare / varumärke:
- DiodesZetex
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Mount Type | Through Hole | |
| Number of Phases | 1 | |
| Package Type | GBU | |
| Pin Count | 4 | |
| Configuration | Single Phase | |
| Maximum Operating Temperature | 150°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A | |
| Forward Current If | 10A | |
| Minimum Operating Temperature | -40°C | |
| Peak Forward Voltage Vf | 0.92V | |
| Standards/Approvals | RoHS Compliant | |
| Series | GBU10V06 | |
| Height | 22.3mm | |
| Peak Reverse Current Ir | 5μA | |
| Width | 7.9 mm | |
| Length | 18.8mm | |
| Automotive Standard | AEC-Q100, AEC-Q101, AEC-Q200 | |
| Välj alla | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Mount Type Through Hole | ||
Number of Phases 1 | ||
Package Type GBU | ||
Pin Count 4 | ||
Configuration Single Phase | ||
Maximum Operating Temperature 150°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 500A | ||
Forward Current If 10A | ||
Minimum Operating Temperature -40°C | ||
Peak Forward Voltage Vf 0.92V | ||
Standards/Approvals RoHS Compliant | ||
Series GBU10V06 | ||
Height 22.3mm | ||
Peak Reverse Current Ir 5μA | ||
Width 7.9 mm | ||
Length 18.8mm | ||
Automotive Standard AEC-Q100, AEC-Q101, AEC-Q200 | ||
The DiodesZetex low power bridge has glass passivated die construction. This device has low forward voltage drop, high surge current capability.
Ideal for printed circuit board
Totally lead free and fully RoHS compliant
Halogen and antimony free green device
