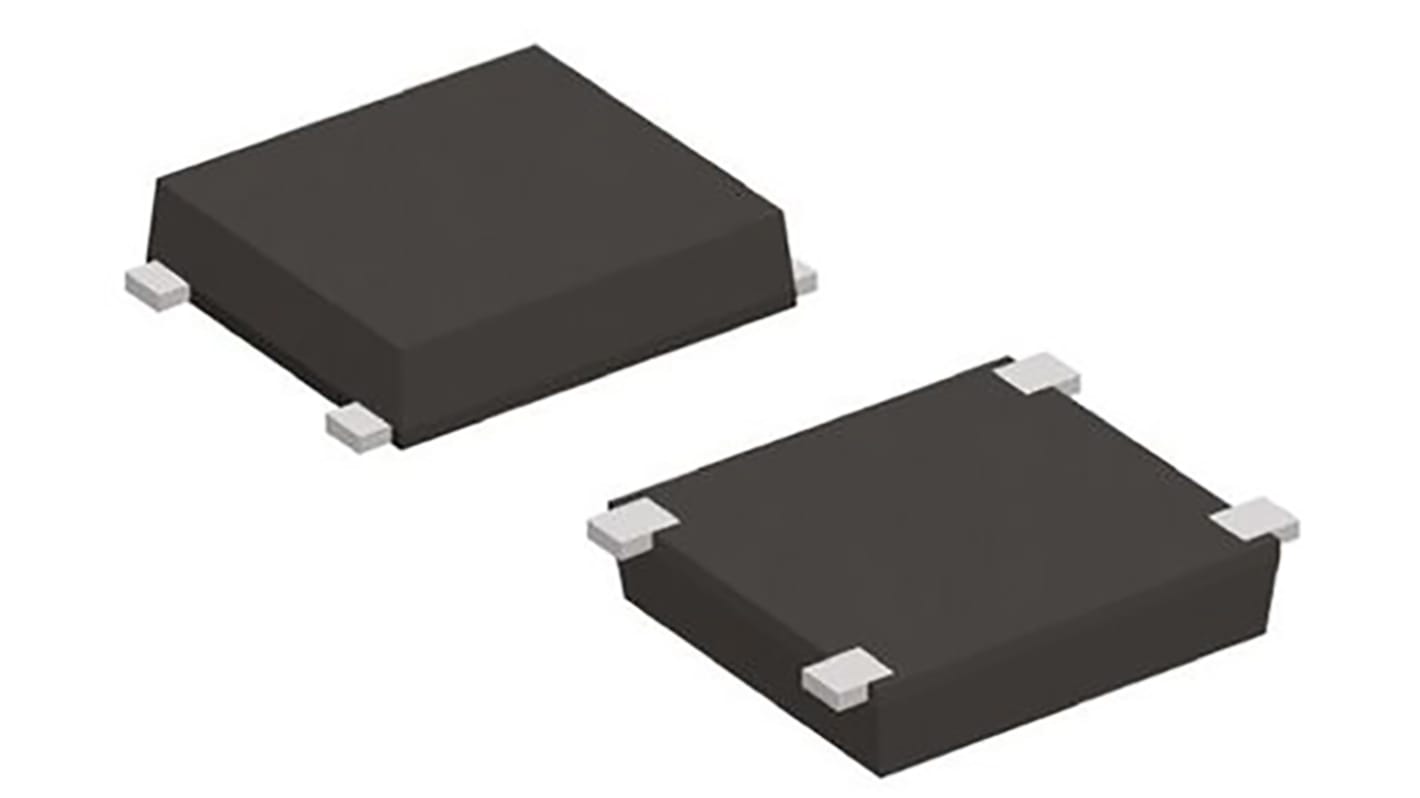

Diodes Inc Bridge Rectifier, 3A, 800V, 4-Pin
- RS-artikelnummer:
- 146-4723
- Tillv. art.nr:
- MSB30KH-13
- Tillverkare / varumärke:
- DiodesZetex
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 146-4723
- Tillv. art.nr:
- MSB30KH-13
- Tillverkare / varumärke:
- DiodesZetex
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | DiodesZetex | |
| Peak Average Forward Current | 3A | |
| Bridge Type | Single Phase | |
| Peak Reverse Repetitive Voltage | 800V | |
| Mounting Type | Surface Mount | |
| Package Type | MSBL | |
| Pin Count | 4 | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 110A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1.1V | |
| Peak Reverse Current | 5µA | |
| Dimensions | 6.7 x 7.4 x 1.42mm | |
| Length | 6.7mm | |
| Height | 1.42mm | |
| Width | 7.4mm | |
| Välj alla | ||
|---|---|---|
Brand DiodesZetex | ||
Peak Average Forward Current 3A | ||
Bridge Type Single Phase | ||
Peak Reverse Repetitive Voltage 800V | ||
Mounting Type Surface Mount | ||
Package Type MSBL | ||
Pin Count 4 | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 110A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 1.1V | ||
Peak Reverse Current 5µA | ||
Dimensions 6.7 x 7.4 x 1.42mm | ||
Length 6.7mm | ||
Height 1.42mm | ||
Width 7.4mm | ||
Bridge Rectifiers - Diodes Inc
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
