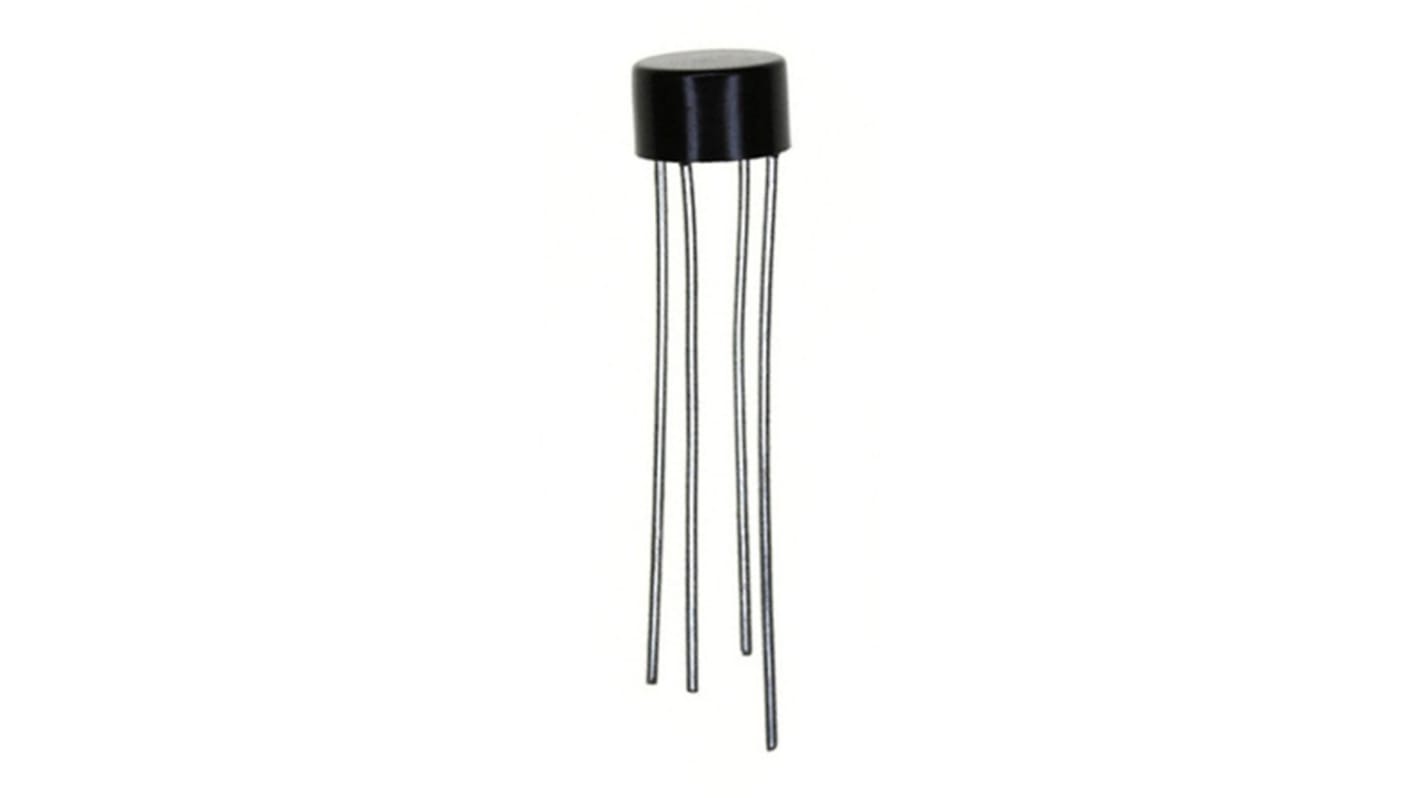

HY Electronic Corp Bridge Rectifier, 1000 V 60 A, 4-Pin Single
- RS-artikelnummer:
- 146-2219
- Tillv. art.nr:
- 2W10MG
- Tillverkare / varumärke:
- HY Electronic Corp
Antal (1 låda med 1000 enheter)*
1 466,00 kr
(exkl. moms)
1 832,00 kr
(inkl. moms)
Lägg till 1000 enheter för att få fri frakt
I lager
- Dessutom levereras 1 000 enhet(er) från den 06 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Låda* |
|---|---|---|
| 1000 + | 1,466 kr | 1 466,00 kr |
*vägledande pris
- RS-artikelnummer:
- 146-2219
- Tillv. art.nr:
- 2W10MG
- Tillverkare / varumärke:
- HY Electronic Corp
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | HY Electronic Corp | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 1000V | |
| Mount Type | Through Hole | |
| Number of Phases | 1 | |
| Package Type | WOBM | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Minimum Operating Temperature | -55°C | |
| Forward Current If | 2A | |
| Peak Forward Voltage Vf | 1.1V | |
| Series | 2WOXG | |
| Height | 4.6mm | |
| Standards/Approvals | No | |
| Diameter | 9.8 mm | |
| Peak Reverse Current Ir | 1mA | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand HY Electronic Corp | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 1000V | ||
Mount Type Through Hole | ||
Number of Phases 1 | ||
Package Type WOBM | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Minimum Operating Temperature -55°C | ||
Forward Current If 2A | ||
Peak Forward Voltage Vf 1.1V | ||
Series 2WOXG | ||
Height 4.6mm | ||
Standards/Approvals No | ||
Diameter 9.8 mm | ||
Peak Reverse Current Ir 1mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - 2WO Series
The 2WO Series of bridge rectifiers from HY Electronic (Cayman) Limited are available in silicon or glass passivated type. The rectifiers have reverse voltage ranges from 600 V to 1000 V with a 2A forward current. Applications include converting AC to DC and they can be found on numerous Printed Circuit Boards (PCBs) applications.
2WO/2WOM Series - Silicon Passivated Bridge Rectifiers
2WOxG/2WOxMG Series - Glass passivated Bridge Rectifiers
Surge overload rating -60 A Peak
Sliver plated copper lead
Bridge Rectifiers - HY Electronic (Cayman) Limited
