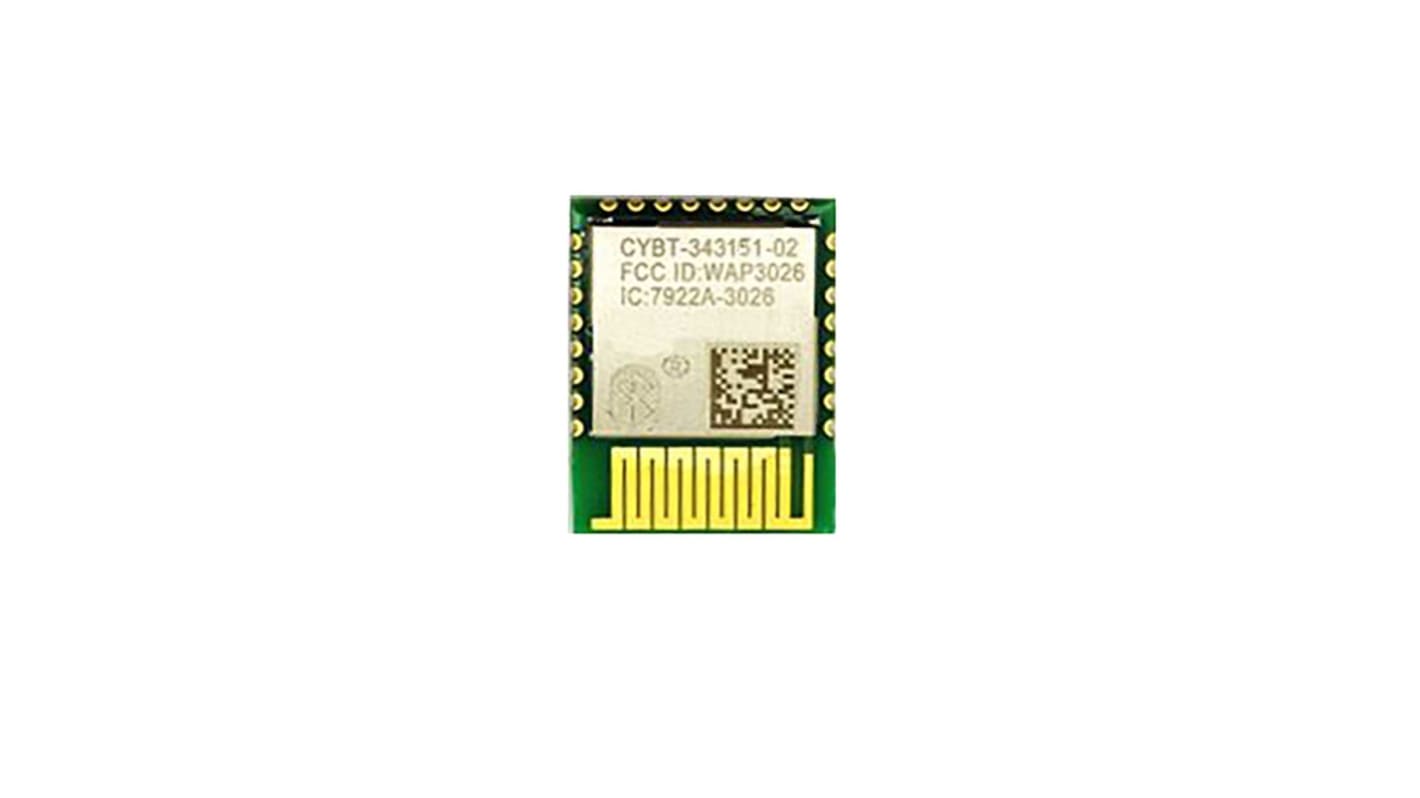

Cypress Semiconductor, CYBT-343151-02

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

CYBT-343151-02 provides all necessary components required
to operate BLE and/or BR/EDR communication standards.
Proven hardware design ready to use
Dual-mode operation eliminates the need for multiple modules
Cost optimized for applications without space constraints
Nonvolatile memory for self-sufficient operation and
Over-the-Air (OTA) updates
Bluetooth SIG Listed with QDID and Declaration ID
Fully certified module eliminates the time needed for design,
development and certification processes
WICED™ Studio provides an easy-to-use integrated design
environment (IDE) to configure, develop, and program a
Bluetooth application

Specifikationer
Attribute Value
Bluetooth Class Class 1, Class 2
Bluetooth Version 5
Maximum Output Power 9 dBm, 12 dBm
Receiver Sensitivity -96.5 dBm, -95.5 dBm
Dimensions 12 x 15.5 x 1.95mm
Height 1.95mm
Length 12mm
Maximum Operating Temperature +105°C
Minimum Operating Temperature -30°C
Width 15.5mm
Tillfälligt slut i lager – restorder för leverans 2020-07-27
Pris (ex. moms) Each (On a Reel of 500)
111,62 kr
(exkl. moms)
139,52 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
500 +
111,62 kr
55 810,00 kr
