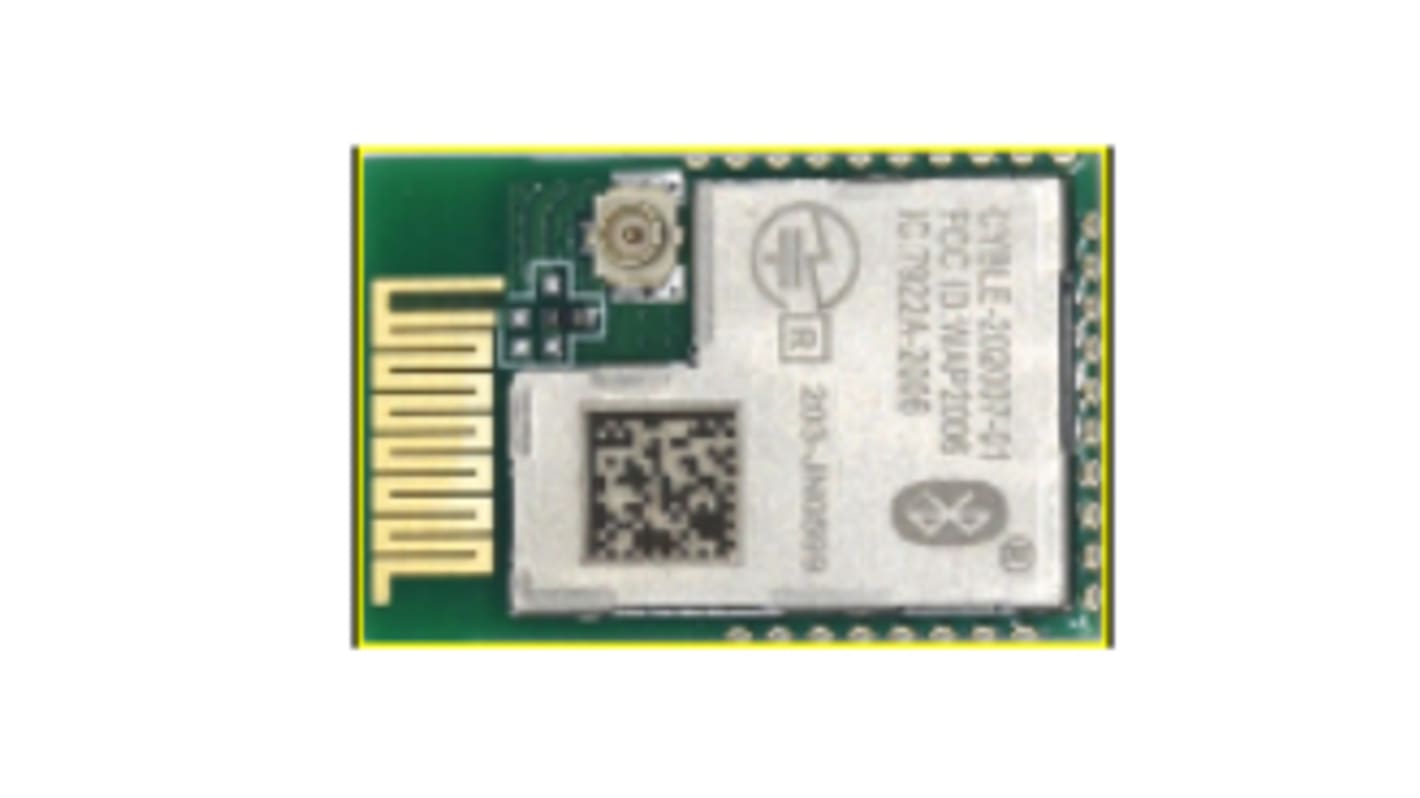

Infineon CYBLE-212006-01 Bluetooth Chip 4.2

Se alla Bluetooth Modules

Antal (1 rulle med 500 enheter)*

58 972,00 kr

(exkl. moms)

73 715,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 500 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per rulle*
500 +117,944 kr58 972,00 kr

*vägledande pris

RS-artikelnummer:
181-7417
Tillv. art.nr:
CYBLE-212006-01
Tillverkare / varumärke:
Infineon
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Infineon

Bluetooth Version

4.2

Maximum Output Power

7.5dBm

Receiver Sensitivity

-93dBm

Supported Bus Interfaces

I2C, SPI, UART

Dimensions

23 x 15 x 2mm

Height

2mm

Length

15mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Width

23mm

The CYBLE-2X20XX-X1 is a Bluetooth® Low Energy (BLE) wireless module solution. The CYBLE-2X20XX-X1 is a turnkey solution and includes onboard crystal oscillators, passive components, and the Cypress PSoC 4 BLE. Refer to the PSoC 4 BLE datasheet for additional details on the capabilities of the PSoC 4 BLE device used on this module. The CYBLE-2X20XX-X1 supports a number of peripheral functions (ADC, timers, counters, PWM) and serial communication protocols (I2C, UART, SPI) through its programmable architecture. The CYBLE-2X20XX-X1 includes a royalty-free BLE stack compatible with Bluetooth 4.2 and provides up to 19 GPIOs in a 15.0 x 23.0 x 2.0 mm package. The CYBLE-212006-01 includes an integrated trace antenna. The CYBLE-202007-01 supports an external antenna via a u-FL connector. The CYBLE-202013-11 supports an external antenna through a RF solder pad output. The CYBLE-202013-11 does not include a RF shield and is not regulatory certified.
