RS PRO Hooked Insulated Crimp Blade Terminal 17.2mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow
- RS-artikelnummer:
- 267-4085
- Tillverkare / varumärke:
- RS PRO
3200 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 100)
1,004 kr
(exkl. moms)
1,255 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
100 - 400 | 1,004 kr | 100,40 kr |
500 - 2400 | 0,974 kr | 97,40 kr |
2500 - 4900 | 0,944 kr | 94,40 kr |
5000 - 9900 | 0,914 kr | 91,40 kr |
10000 + | 0,891 kr | 89,10 kr |
- RS-artikelnummer:
- 267-4085
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

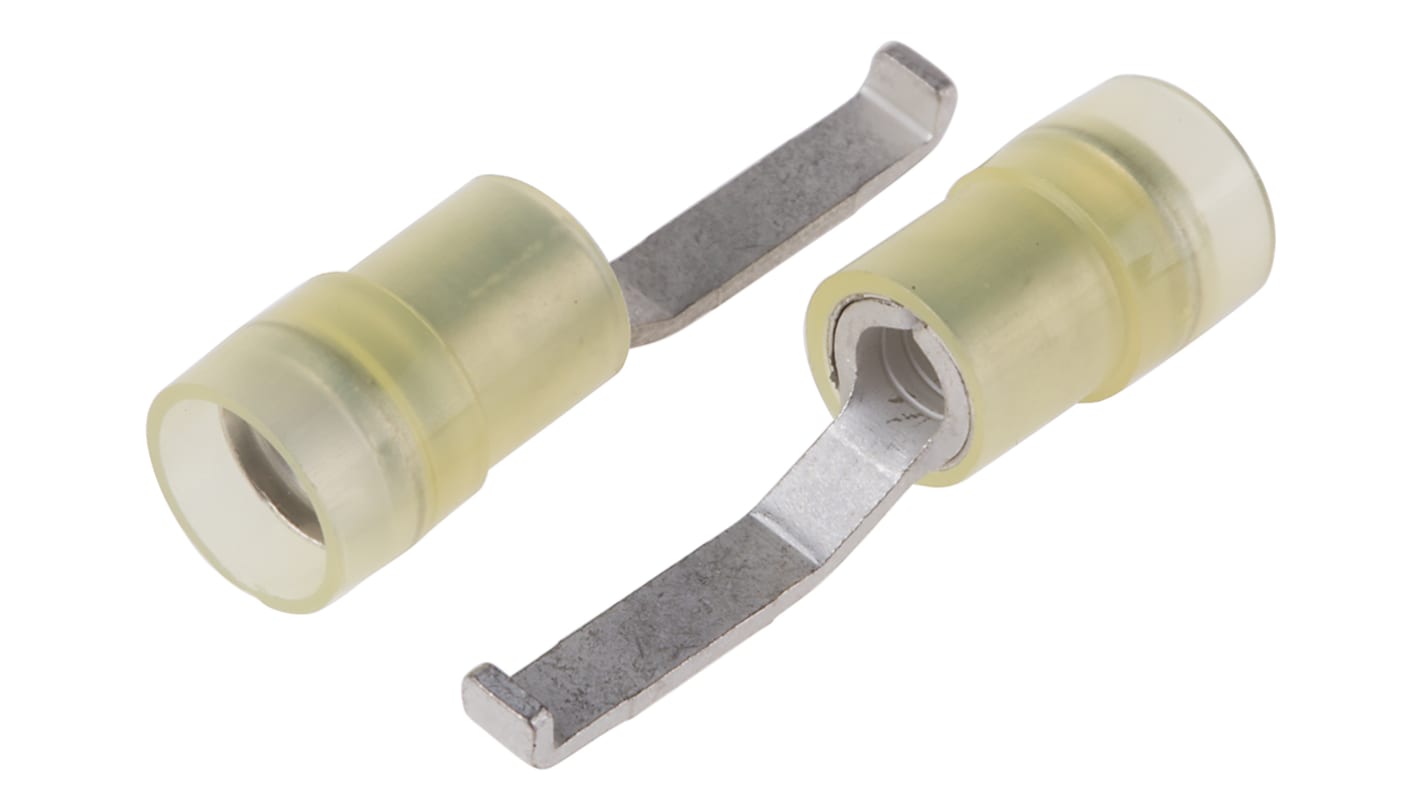

RS PRO Insulated Double Crimp Hook Blade Terminals
RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.
Features & Benefits
- Gender: Male
- Insulation: Insulated
- Shrouded: Unshrouded
- Insulation Material: Nylon
- Various colours available
- Contact Material: Copper Contact Plating: Tin
Hook Blade Colour Code
- Red 0.5 - 1.5 mm²
- Blue 1 - 2.6 mm²
- Yellow 2.5 - 6.5 mm²
Note
For hook blades, the overall lengths are 27·4 mm (red), 28·4mm (blue) and 30·2mm (yellow). The size quoted is blade width.
Approvals
UL Listed; UL Listed for Canada
Note
For Hook blades (see stock no. 267-4063) the overall lengths are 27·4 (red), 28·4 (blue) and 30·2 (yellow). Size quoted is blade width.
Approvals
UL Listed; UL Listed for Canada
Specifikationer
Attribute | Value |
---|---|
Gender | Male |
Insulation | Insulated |
Insulation Material | Nylon |
Minimum Wire Size mm² | 4mm² |
Shrouded/Unshrouded | Unshrouded |
Maximum Wire Size mm² | 6mm² |
Minimum Wire Size AWG | 12AWG |
Overall Length | 30.2mm |
Maximum Wire Size AWG | 10AWG |
Inner Diameter | 7mm |
Blade Length | 17.2mm |
Blade Width | 3mm |
Blade Thickness | 1mm |
Hooked | Yes |
Colour | Yellow |
Contact Plating | Tin |
Contact Material | Copper |
