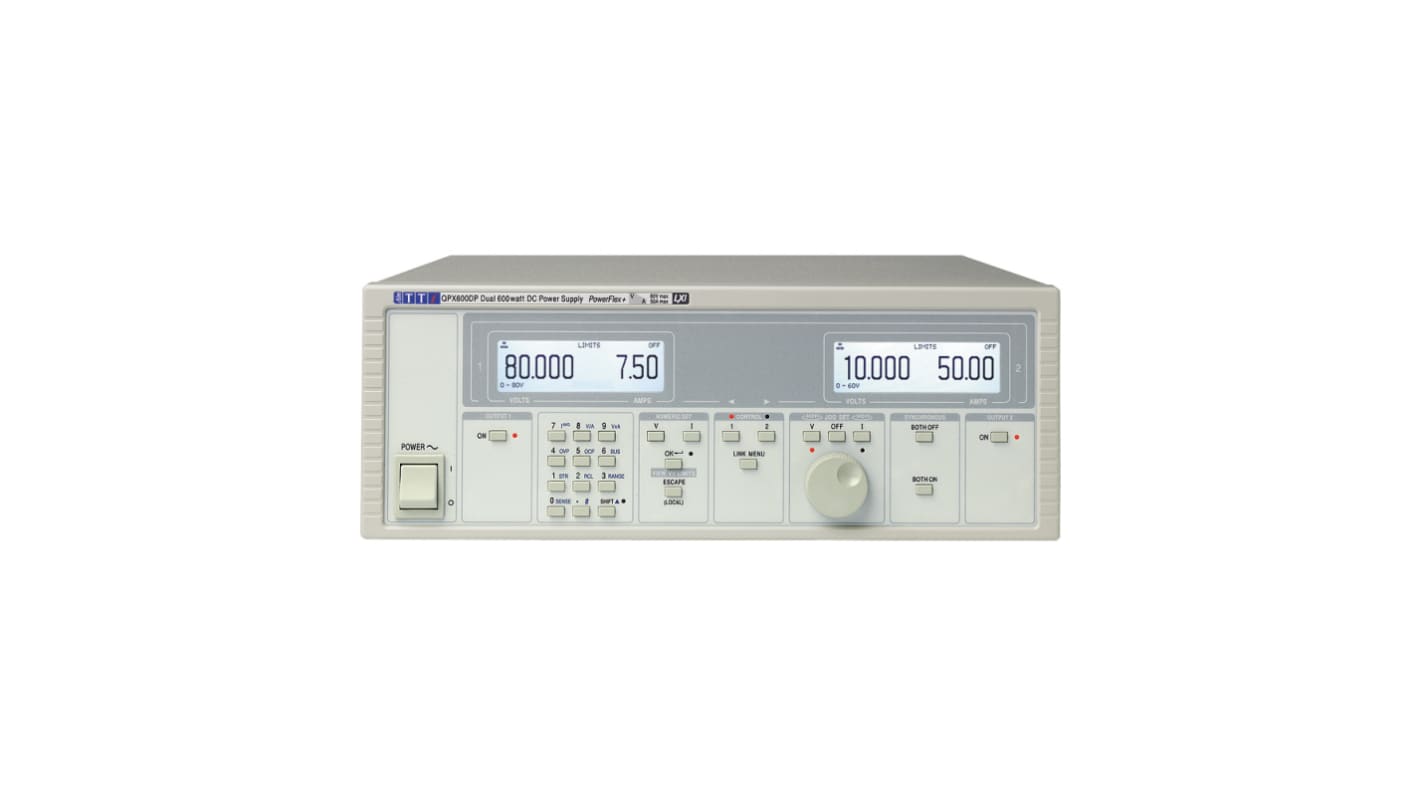

Aim-TTi QPX Series Digital Bench Power Supply, 0 → 80V, 0 → 50A, 2-Output, 1.2kW

The QPX600D and DP are dual output power supplies which offer two independent or tracking outputs of 600 watts each. The PowerFlex + design offers an extremely wide range of voltage/current combinations up to 80V and 50A on each output. Both versions include an analogue interface. The DP version includes USB, RS232 and LAN (Ethernet) with support for LXI.

Dual independent or tracking 600W outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple - fast transient response
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current

RS-232, USB and LAN (LXI) interfaces

EN 61010-1, EN61326

User manual, mains lead and CD containing driver software

Test Bridge Logging and sequencing software

• Multi instrument control


• Logging to table and graph format


• Timed sequence control across all instruments and channels


• USB, LAN and RS232 compatible
