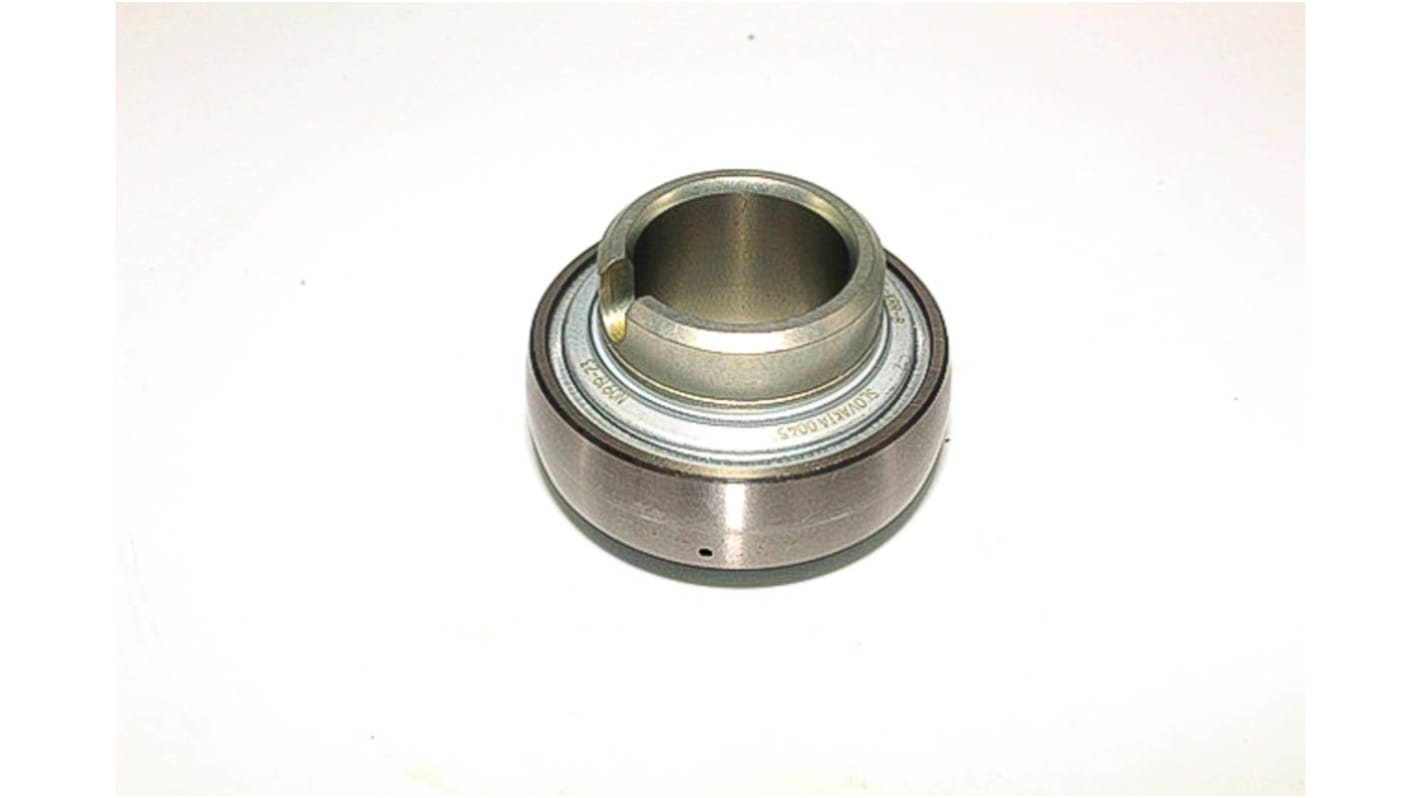

INA Bearing Insert 30 mm ID 62 mm OD GLE30-XL-KRR-B
- RS-artikelnummer:
- 194-6882
- Tillv. art.nr:
- GLE30-XL-KRR-B
- Tillverkare / varumärke:
- INA
Mängdrabatt möjlig
Antal (1 enhet)*
691,49 kr
(exkl. moms)
864,36 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 12 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 691,49 kr |
| 5 - 9 | 650,61 kr |
| 10 - 24 | 637,73 kr |
| 25 + | 623,73 kr |
*vägledande pris
- RS-artikelnummer:
- 194-6882
- Tillv. art.nr:
- GLE30-XL-KRR-B
- Tillverkare / varumärke:
- INA
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | INA | |
| Inside Diameter | 30 mm | |
| Product Type | Bearing Insert | |
| Outside Diameter | 62 mm | |
| Static Load Rating | 20.7kN | |
| Dynamic Load Rating | 11.3kN | |
| Standards/Approvals | No | |
| Overall Width | 36.5mm | |
| Series | GE | |
| Bore Type | Round | |
| Välj alla | ||
|---|---|---|
Brand INA | ||
Inside Diameter 30 mm | ||
Product Type Bearing Insert | ||
Outside Diameter 62 mm | ||
Static Load Rating 20.7kN | ||
Dynamic Load Rating 11.3kN | ||
Standards/Approvals No | ||
Overall Width 36.5mm | ||
Series GE | ||
Bore Type Round | ||
Radial insert ball bearings are ready-to-fit machine elements. In combination with drawn shafts, they are particularly easy to fit and suitable for the design of economical bearing arrangements. They are highly suitable where predominantly radial loads must be supported
Radial insert ball bearings with an extended inner ring undergo less tilting and therefore run more smoothly
Radial insert ball bearings with a spherical outer ring are highly suitable where: Static angular misalignments of the shaft must be compensated, which are caused by mounting inaccuracies and tolerances in the adjacent construction
Very good seals are required in environmental conditions such as dust, contamination, moisture, stone impacts and shocks
Radial insert ball bearings with a cylindrical outer ring are highly suitable where: A cylindrical housing bore is already present
The outer ring of the bearings is to be located by means of easy-to-fit snap rings
Radial insert ball bearings with a profiled bore are highly suitable where: shafts must transmit very high torques
Radial insert ball bearings with a rubber interliner are highly suitable where: Vibrations and shocks must be supported
Damping of running noise is required
