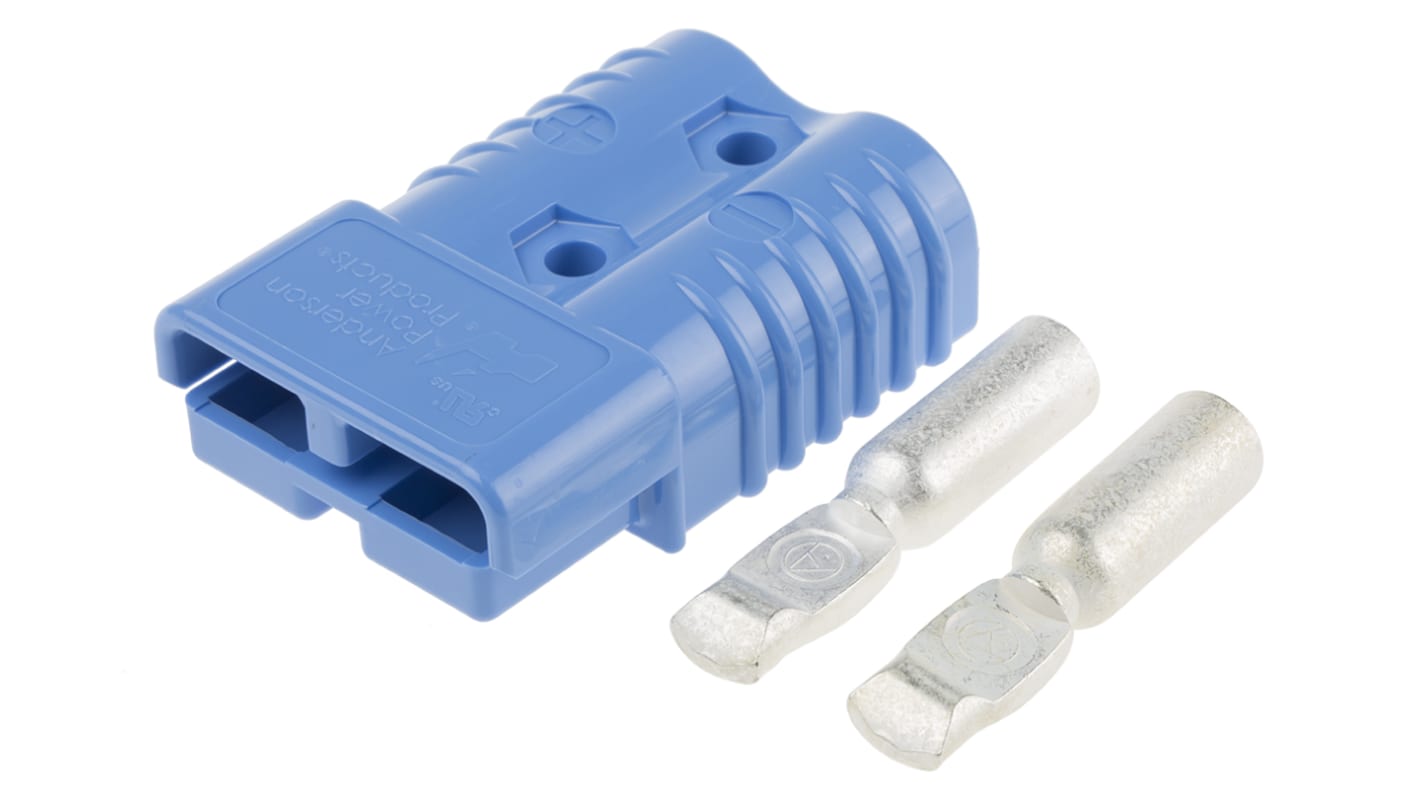

Anderson Power Products, SB175 Series Male 2 Way Battery Connector, 280A, 600 V
- RS-artikelnummer:
- 162-4597
- Tillv. art.nr:
- 6326G6
- Tillverkare / varumärke:
- Anderson Power Products
4 I lager för avsändande samma dag
3 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
280,80 kr
(exkl. moms)
351,00 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 9 | 280,80 kr |
| 10 - 24 | 265,38 kr |
| 25 - 49 | 251,08 kr |
| 50 - 99 | 227,12 kr |
| 100 + | 207,83 kr |
- RS-artikelnummer:
- 162-4597
- Tillv. art.nr:
- 6326G6
- Tillverkare / varumärke:
- Anderson Power Products
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
The second to largest SB housings work with wire contacts up to 1/0 AWG [50 mm²] as well as busbar contacts. Genderless design mates with itself. Mechanical keys are colour coded. NOTE: SB®175 black housing is keyless and can be mated with all other colours.
Note
The SB175 series has bee re-tested under the UL standard and due to this it has been up-rated to 280A. The housing will still state SB175 and show 175A rating until further notice. Please refer to the new datasheet for details.
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Contacts | 2 |
| Current Rating | 280A |
| Voltage Rating | 600 V |
| Colour | Blue |
| Series | SB175 |
