RS PRO Red Male Banana Connectors, 4 mm Connector, Crimp, Screw, Solder Termination, 16A, 50V, Gold Plating
- RS-artikelnummer:
- 180-6659
- Tillverkare / varumärke:
- RS PRO
39 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
59,05 kr
(exkl. moms)
73,81 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 59,05 kr |
| 5 - 9 | 54,45 kr |
| 10 - 24 | 50,68 kr |
| 25 - 49 | 47,47 kr |
| 50 + | 44,47 kr |
- RS-artikelnummer:
- 180-6659
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

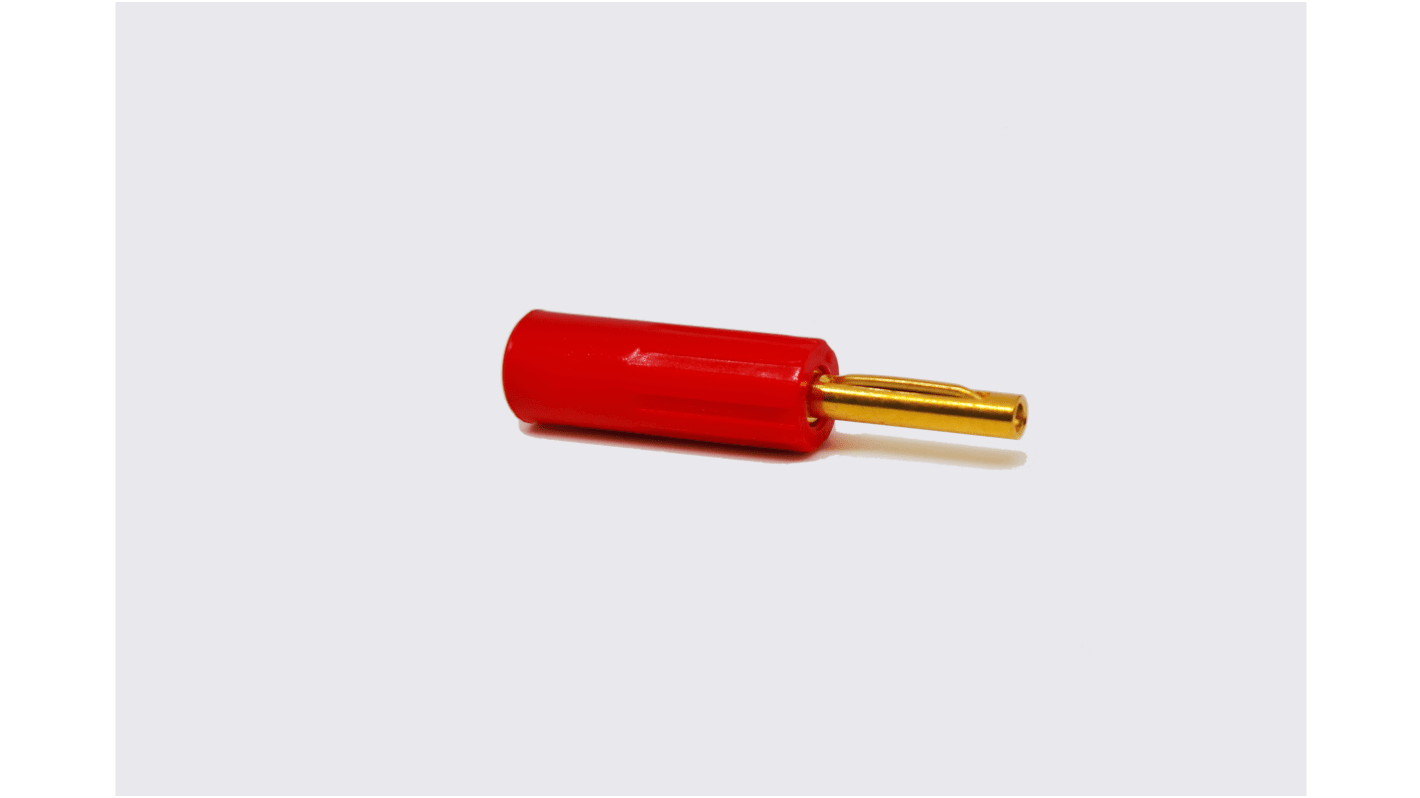

The RS PRO A standard in-line 4mm banana plug with a stainless steel contact spring and gold plated brass pin. The large rear diameter of this plug will accept cables with a conductor diameter of up 5.5mm (10 awg). The lead wire is held by soldering in a large solder bucket. The product is also supplied with a large diameter insulating cover that accepts cables with a maximum outside diameter of 7,1mm. When the cable is held by the set screw, the solder bucket can also be crimped for added strength, (suitable crimping tool - Daniels Manufacturing D36 Hydraulic Crimper).
4mm Banana Plug - Red
The plug has an excellent current rating of 16A
The plug has an excellent current rating of 16A
Specifikationer
Attribute | Value |
|---|---|
| Colour | Red |
| Gender | Male |
| Termination Method | Crimp, Screw, Solder |
| Voltage Rating | 50V |
| Connector Size | 4 mm |
| Current Rating | 16A |
| Contact Plating | Gold |
| Length | 48.8mm |
| Type | Banana Plug |
| Contact Material | Brass |
| Insulation Material | Acetal |
