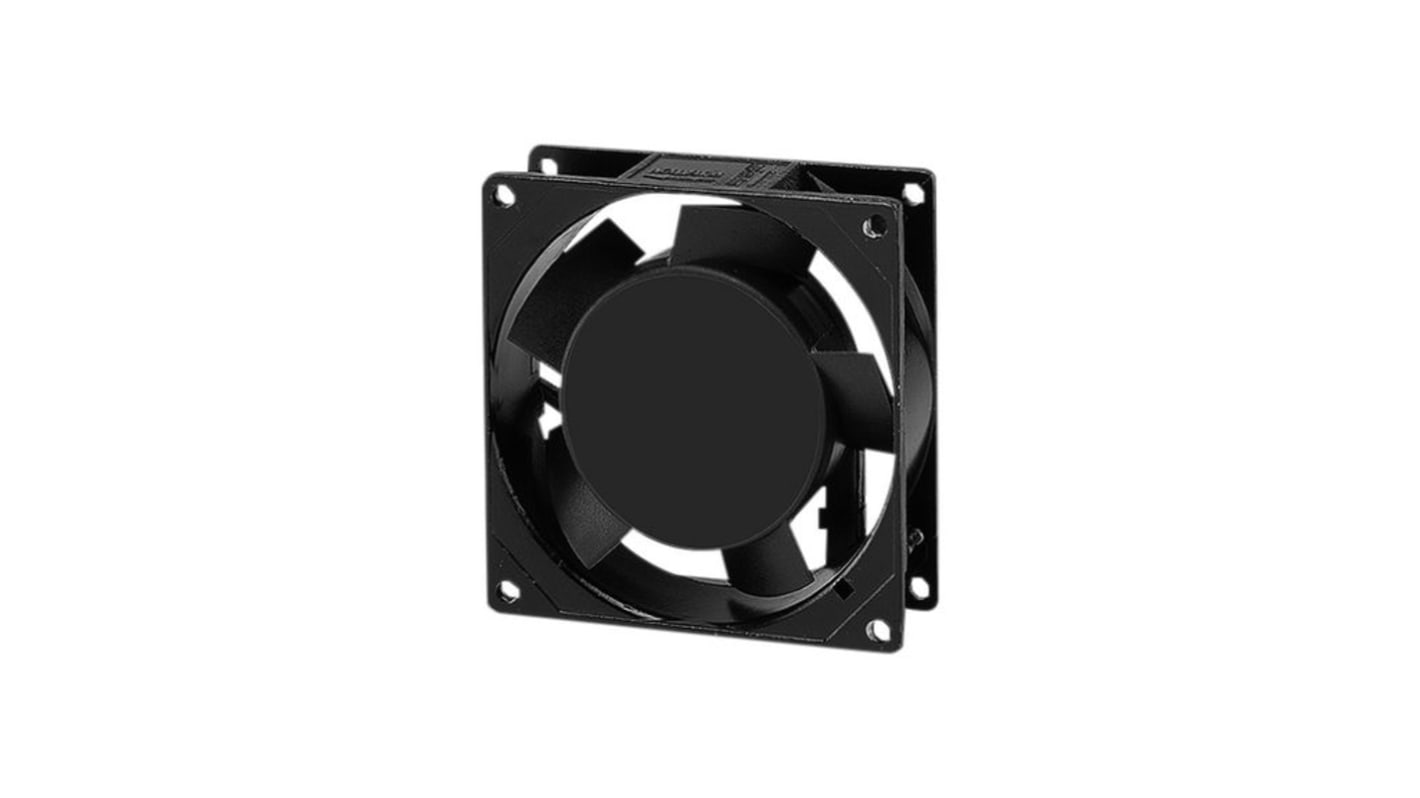

Sunon Axial Fan, 230 V ac, ac Operation, 30/37cfm, 14.5/14W, 70mA Max, 92 x 92 x 25mm

Se alla Axial Fans
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
288-3696
Distrelec artikelnummer:
301-48-236
Tillv. art.nr:
SF23092A 2092HBT.GN
Tillverkare / varumärke:
Sunon
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Sunon

Supply Voltage

230 V ac

AC or DC Operation

ac

Height

92mm

Width

92mm

Power Consumption

14.5/14W

Maximum Current

70mA

Depth

25mm

Dimensions

92 x 92 x 25mm

Air Flow

30/37cfm

COO (Country of Origin):
CN
The axial AC fan with dimensions of 92x92x25 mm. It is designed with a reliable shaded-pole motor construction, providing a motor design that ensures reliability. With an insulation resistance of 500 Megohms minimum at 500 VDC and a dielectric strength of 1500 VAC for one second, this fan offers excellent performance. It is impedance protected for motor protection and operates with a low noise level measured at less than 15 dB(A).

Reliable shaded-pole motor construction for increased reliability
500 Megohms minimum insulation resistance at 500 VDC
1500 VAC dielectric strength for one second
Impedance protected motor for enhanced protection
Low noise level measured at less than 15 dB(A)
15% tolerance on rated power and current
Air delivery of 30/37 CFM
Counter-clockwise direction of rotation
UL/CUR/TUV/CE safety approvals
