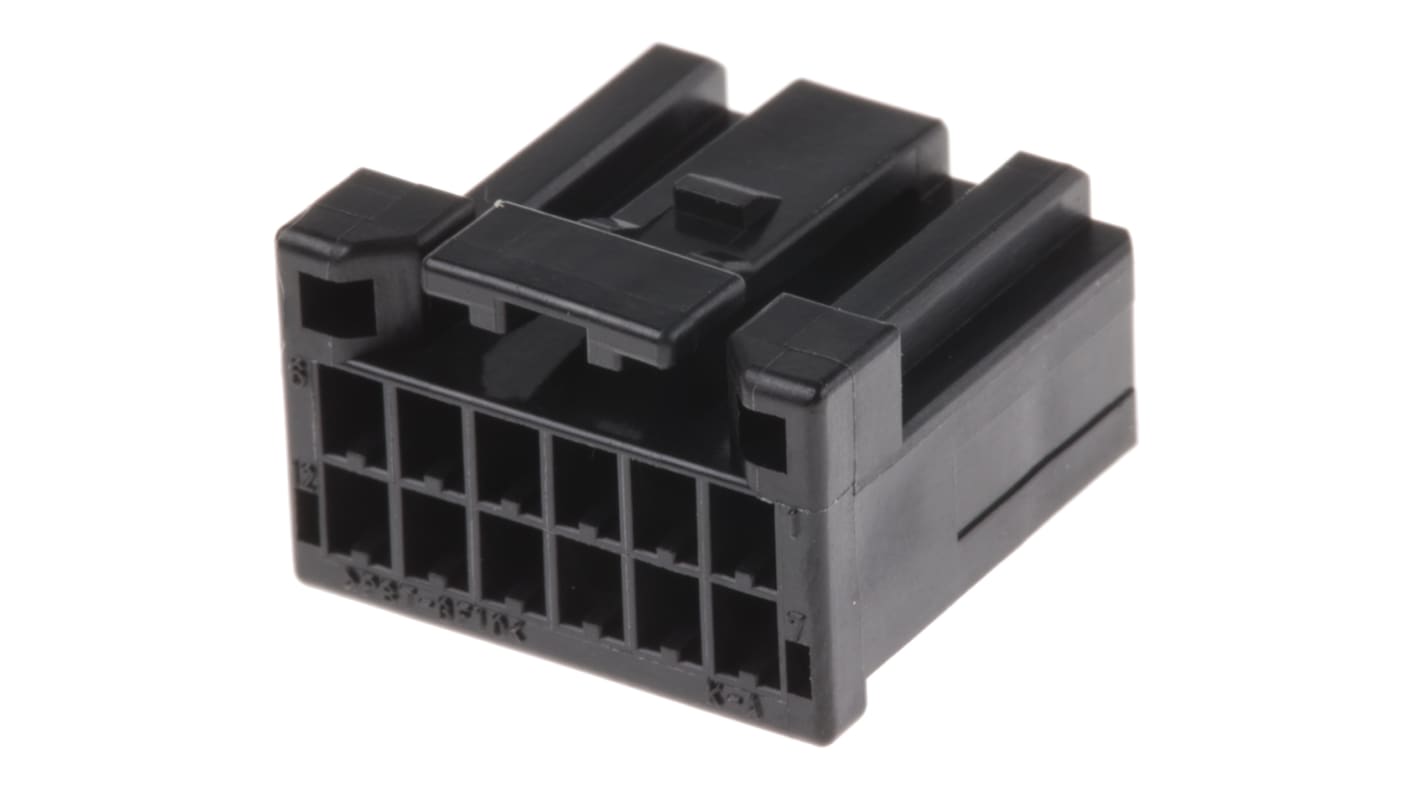

JST CPT Series, 2 Row 12 Way Surface Mount Socket CPT Connector, with Solder Termination Method

  • RS-artikelnummer 172-5101
  • Tillv. art.nr 12CPT-B-2A
  • Tillverkare / varumärke JST
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

JST CPT 2.0 mm Pitch Female Housings

A series of cable mount female housings from the CPT range of automotive connectors. With a 2.0 mm pitch and the ability to accept compact female terminals make these mini rugged housings ideal for space critical applications. The housings are designed to accept crimp terminal 123-8233 and have a cable acceptance size of 0.3 mm² to 1.4 mm². The housings in this range are available in both single and double row circuits in 2,4,8,12,16 and 20 way. A suitable crimp tool 123-8234 is also available separately.

Features and Benefits

• Developed for a miniaturised and low profile wire to board PCB connections in automobile applications • Provides high reliability in automotive electrical equipment
• Rugged and compact design
• Wide temperature range - 40°C - + 100°C
• Compact size

Applications

• Automotive

JST Range

Specifikationer
Attribute Value
Number of Contacts 12
Type CPT Connector
Gender Female
Number of Rows 2
Current Rating 3A
Mounting Type Surface Mount
Series CPT
Colour Black
Termination Method Crimp
Height 9.1mm
Width 14mm
Depth 13.5mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Contact Material Brass
Housing Material Glass Filled PBT
Contact Plating Gold over Nickel
Corded Yes
300 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Box of 300)
12,436 kr
(exkl. moms)
15,545 kr
(inkl. moms)
Enheter
Per unit
Per Box*
300 +
12,436 kr
3 730,80 kr
