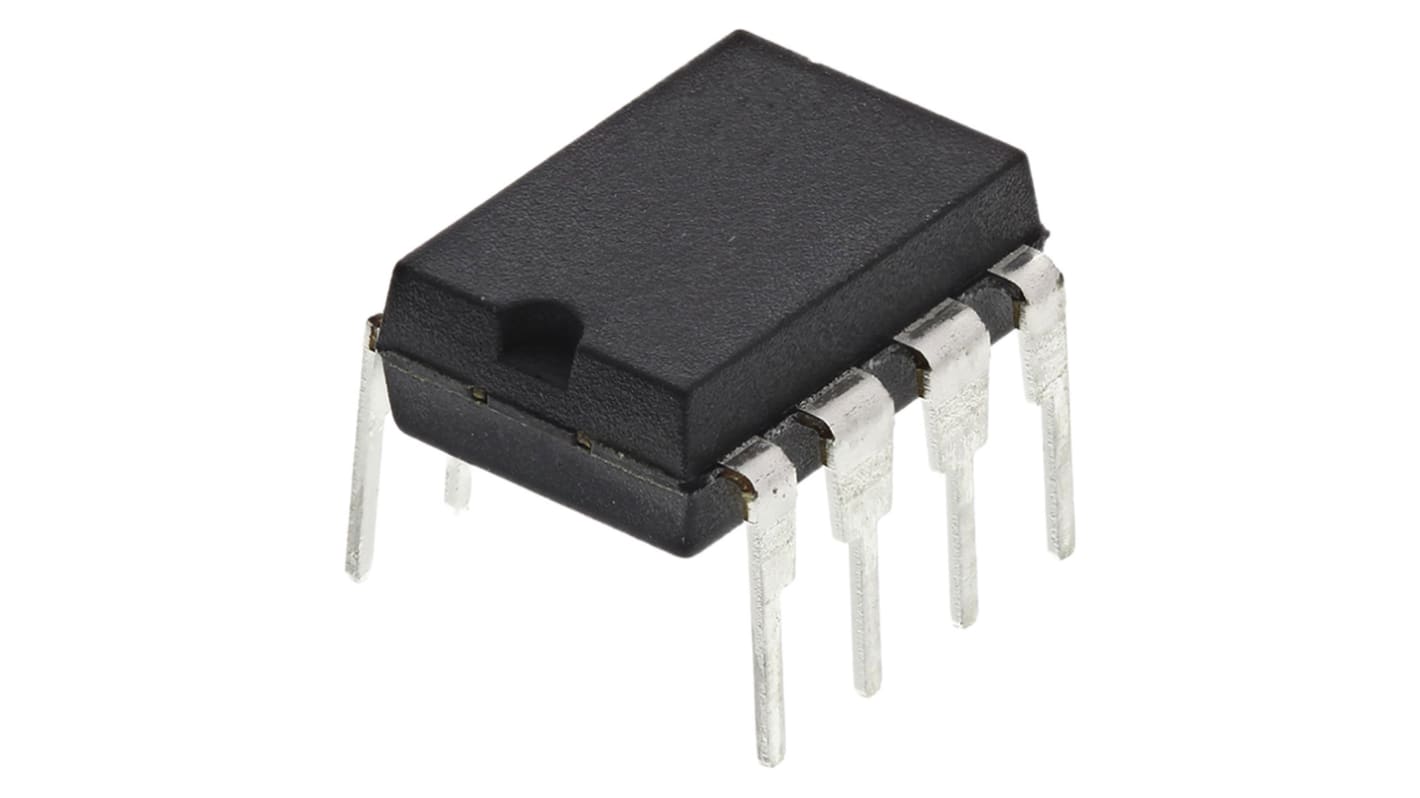

Texas Instruments,0.7W, 8-Pin PDIP LM386N-3/NOPB
- RS-artikelnummer:
- 124-4528
- Tillv. art.nr:
- LM386N-3/NOPB
- Tillverkare / varumärke:
- Texas Instruments
300 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
10,369 kr
(exkl. moms)
12,961 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 40 | 10,369 kr | 103,69 kr |
| 50 - 90 | 9,837 kr | 98,37 kr |
| 100 - 240 | 8,872 kr | 88,72 kr |
| 250 - 490 | 7,974 kr | 79,74 kr |
| 500 + | 7,586 kr | 75,86 kr |
- RS-artikelnummer:
- 124-4528
- Tillv. art.nr:
- LM386N-3/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Audio Power Amplifiers, Single, Texas Instruments
A range of single channel power amplifier ICs from Texas Instruments with power outputs from less than 1 watt to over 50 watts. These highly integrated devices incorporate many advanced features including thermal overload, short-circuit and safe operating area protection, muting facilities and wide operating voltage range.
Audio Amplifiers, Texas Instruments
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Audio Power Amplifier |
| Output Type | 1 Channel Mono |
| Maximum Power | 0.7W |
| Amplifier Class | Class A-B, Class D |
| Mounting Type | Through Hole |
| Typical Single Supply Voltage | 4 → 12 V |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Package Type | PDIP |
| Pin Count | 8 |
| Input Signal Type | Differential |
| Output Signal Type | Single |
| Typical Gain Bandwidth Product | 300kHz |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 10.16 x 6.35 x 3.3mm |
