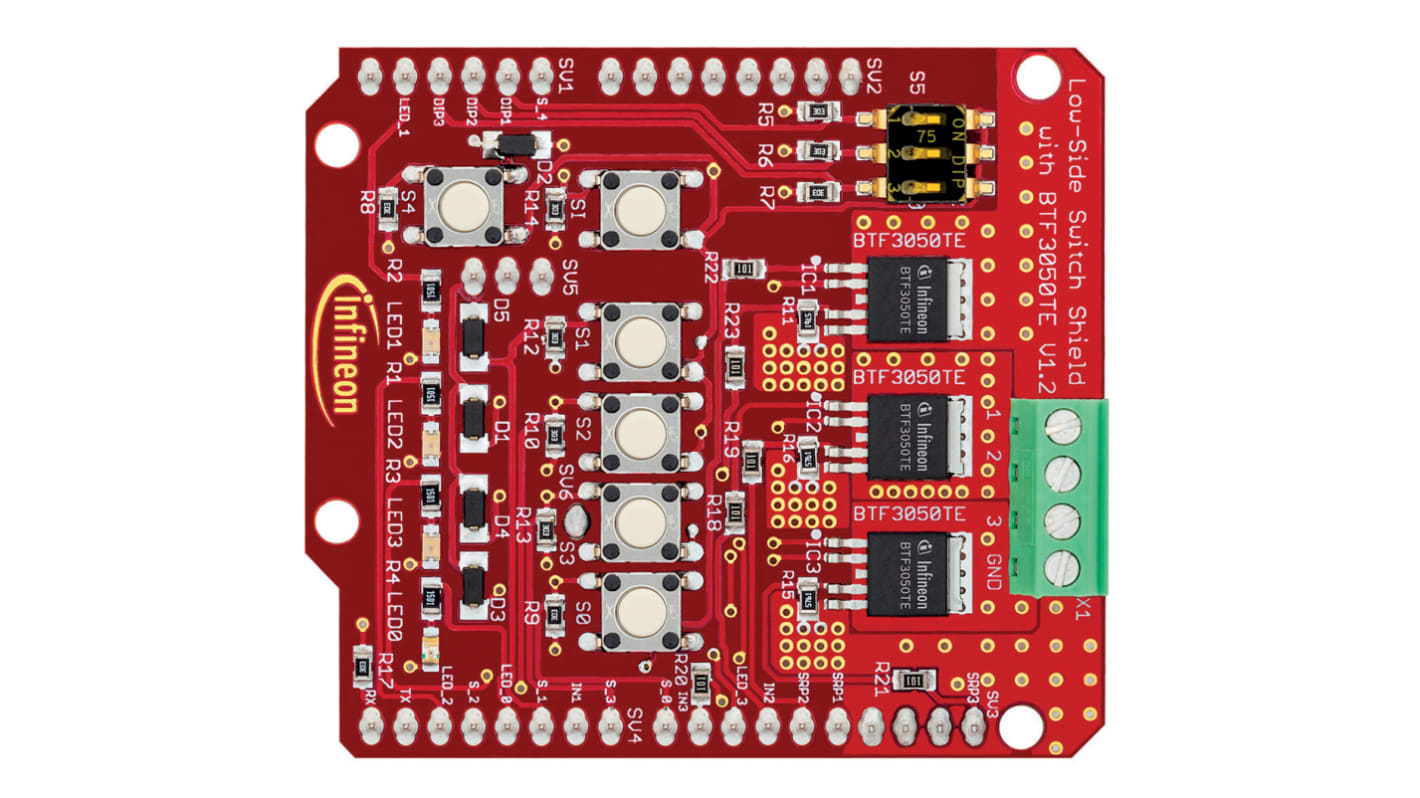

Infineon SHIELDBTF3050TETOBO1 Evaluation Board for BTF3050TE for Arduino

  • RS-artikelnummer 150-1733
  • Tillv. art.nr SHIELDBTF3050TETOBO1
  • Tillverkare / varumärke Infineon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

The Low-Side Switch Shield from Infineon consists out of three BTF3050TE low-side switches of the HITFET™+ family providing three independent power channels that can be controlled via the input pins. The shield is compatible with microcontroller boards using the Arduino form factor for example the corresponding ARM® powered XMC™ microcontroller kits from Infineon and supports fast and easy prototyping of applications with BTF3050TE.

Over temperature shutdown with auto-resart
Active clamp over voltage protection of the output (min. 40 V)
Enhanced short circuit protection
Capable of PWM up to14 kHz (at 10% duty cycle)
Driver circuit with logic level inputs
Diagnosis function

Specifikationer
Attribute Value
Product Name Low-Side Switch Shield
Kit Classification Evaluation Board
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
287,35 kr
(exkl. moms)
359,19 kr
(inkl. moms)
Enheter
Per unit
1 - 4
287,35 kr
5 - 9
279,59 kr
10 - 24
272,25 kr
25 - 49
265,32 kr
50 +
258,71 kr
