Keysight Technologies N9310A N9310A Arbitrary Waveform Generator 3GHz

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

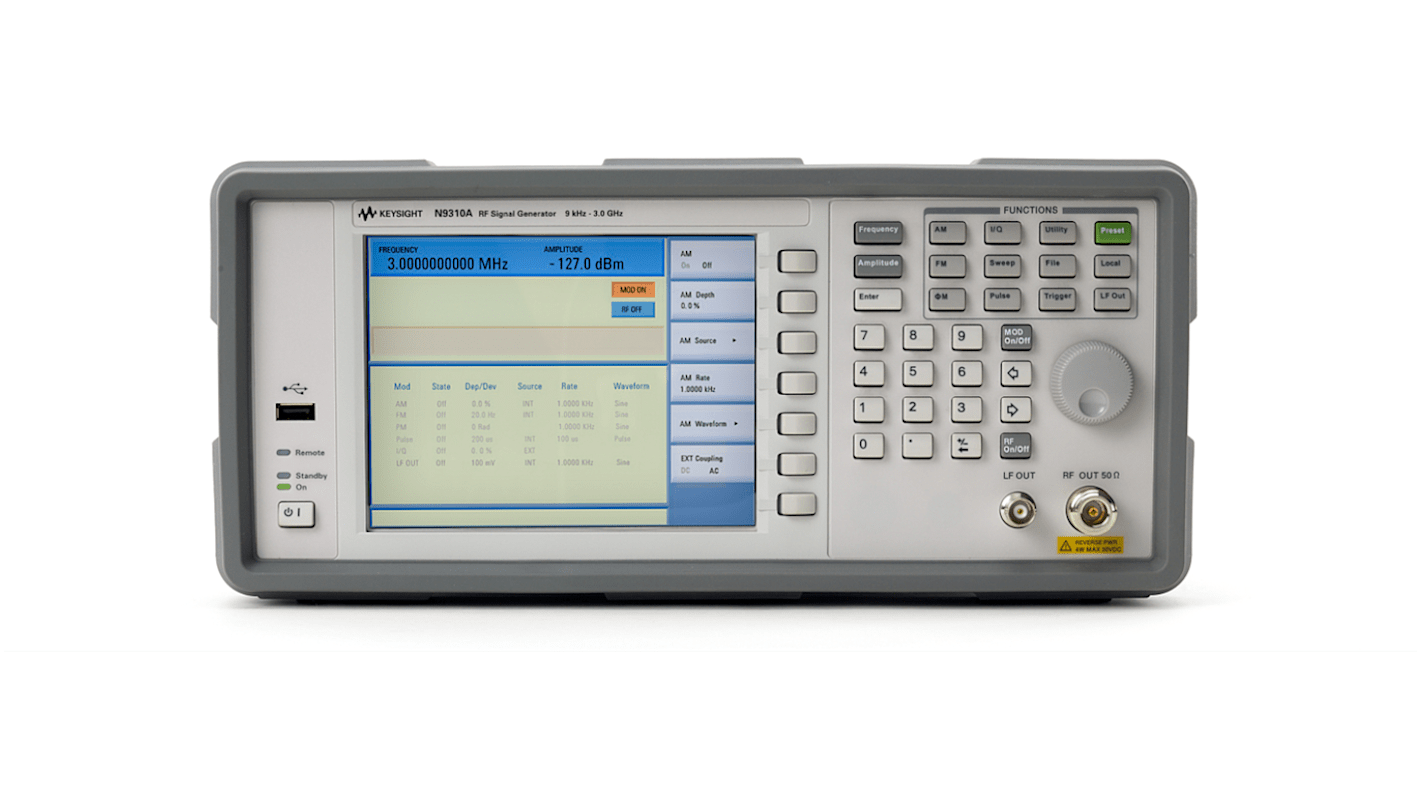

Keysight N9310A RF Signal Generator 9 kHz to 3 GHz.

From Keysight Technologies this is the Keysight N9310A RF Signal Generator providing you with a cost effective and reliable signal generation. With a wealth of benefits including, a reliable performance, easy and simple functionality, excellent for start-up R & D, service maintenance, manufacturing and education. The N9310A RF Signal Generator also gives you optional OCXO frequency, temperature stability, analog IQ input plus optional30 dB power attenuator. This signal generator provides all you would expect and more providing the performance needed, excellent for general purpose testing.

Features and Benefits.

  • Range 9 kHz to 3 GHz.

  • Resolution 0.1 Hz.

  • Switching speed <10ms.

  • Output -127 to 13 dBm.

  • Level uncertainty, + / - 1 dB.

  • Reverse power protection +36 dBm RF Power, 30 Vdc.

  • Phase noise < - 95 dBc/Kz.

  • Residual FM < 20 Hz rms.

  • Power requirement 100 to 240 V ac (50 to 60 Hz).

  • Power consumption 65 W.

  • Display resolution 640 x 480.

  • Large graphical, high-resolution interface (GUI).

  • Interface options in 11 languages.

  • Hard keys on the front panels.

  • Soft keys on the screen.

  • Temperature range 5 to 45°C (operational).

  • Height 132.5 mm.

  • Width 320 mm.

  • Depth 400 mm.

  • Weight 9.2 kg.

  • Dependable, long term accuracy.

What’s Included with the N9310A RF Signal Generator.

  • Quick start guide.

  • USB Cable.

  • Country specific power cord.

  • CD-ROM, documentation set.

  • 3-Year warranty.

Connectivity.

  • Calibration connection Mini USB port, rear panel.

  • Connector BNC Female (50 Ω nominal, rear panel).

Complies With?

  • EMC Directive 2004/108/EC.

  • IEC/EN 61326-1 or IEC/EN 61326-2-1.

  • CISPR Pub 11 group I, class A.

  • AS/NZS CISPR 11:2004.

  • IEC/NMB-001:2004.

  • Canadian ICES-001.

Safety.

  • Complies with European low voltage directive 2006/95/EC.

  • IEC/EN 61010-1 2nd edition.

  • Canada CSA C22.2 No 61010-1-4.

  • USA – UL 61010-1 2nd edition.

Specifikationer
Attribute Value
Maximum Frequency 3GHz
Minimum Frequency 9 kHz
Resolution 0.1 Hz
Maximum Pulse Width 1s
Height 132.5mm
Maximum Output Amplitude 3V Pk-Pk
Dimensions 320 x 400 x 132.5mm
Connector Type BNC
Weight 9.2kg
Model Number p N9310A
Length 320mm
Width 400mm
Minimum Operating Temperature +5°C
Interface Type USB 2.0
Maximum Operating Temperature +45°C
Tillfälligt slut i lager – restorder för leverans 2020-12-07
Pris (ex. moms) Each
74 142,00 kr
(exkl. moms)
92 677,50 kr
(inkl. moms)
Enheter
Per unit
1 +
74 142,00 kr
