LeCroy T3AFG40 T3AFG40 Waveform Generator 40MHz RS Calibration

  • RS-artikelnummer 177-1316
  • Tillv. art.nr T3AFG40
  • Tillverkare / varumärke Teledyne LeCroy
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

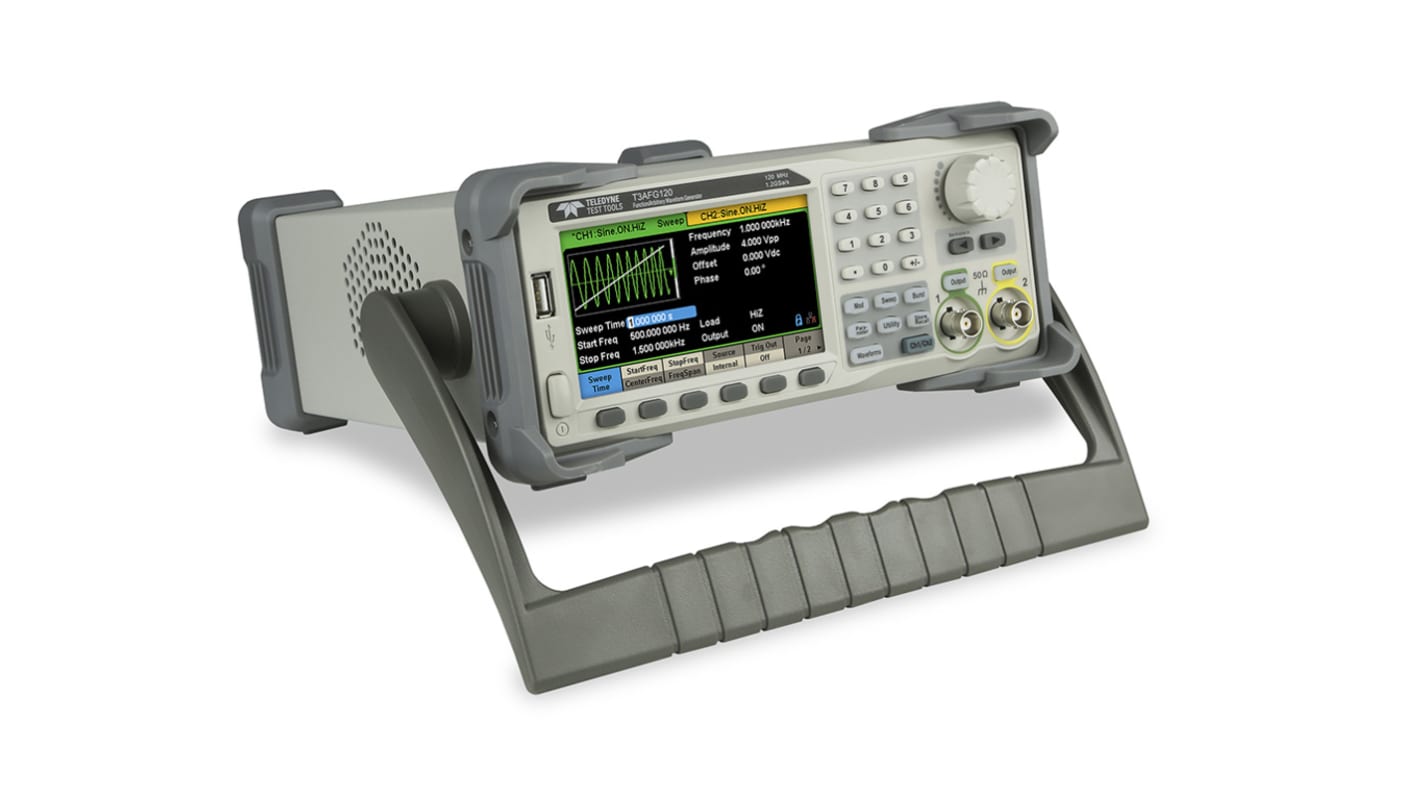

Teledyne LeCroy T3AF Waveform Generators

The T3AFG range of waveform generators from Teledyne LeCroy are brilliant testing and debugging tools. These T3AFG are both arbitrary and function generators packed into one. This range packs great features such as DDS technology, a wide range of modulation functions, remote control support and outstanding build quality.

Teledyne LeCorys T3AFG models come with a dual functionality handle. This handle can double up as a stand also with a rotation over the unit.

Features and Benefits:

  • Improved debugging – Deep memory, wide range of modulation types, high resolutions, high bandwidth, built in arbitrary waveforms and user defined waveforms

  • 3.5" – 4.3" Display. (T3AFG40+ includes touchscreen)

  • Sample rate up to 1.2 GS/s

  • USB for mass storage

  • LAN port on 2 channel models

  • Sweep output – Sine, Square, Triangle or Arbitrary waveforms

  • Frequency resolution of 1uHz

  • Handle doubles up as a stand

  • Waveform types include DC

Applications:

The T3AFG waveform generators are used in a wide array of applications in a multitude of different industries. The waveform generator is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;

  • Educational demonstrations

  • Engineering

  • Debugging

  • Electronic design

  • Automotive

Why Teledyne LeCroy?

Teledyne LeCroy Waveform Generators have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy Waveform Generators are covered by a 3-year manufactures warranty.

Specifikationer
Attribute Value
Maximum Frequency 40MHz
Minimum Frequency 1 μHz
Maximum Frequency Triangle Ramps 1MHz
Maximum Sampling Frequency 1.2Gsps
Maximum Pulse Train Repetition Rate 16.3ns
Minimum Pulse Train Repetition Rate 16.3ns
Resolution 1 μHz
Calibrated RSCAL
Arbitrary Waveforms Yes
Width 107.2mm
Length 260.3mm
Height 295.7mm
Minimum Operating Temperature 0°C
Maximum Output Amplitude 20V Pk-Pk
Dimensions 260.3 x 107.2 x 295.7mm
Connector Type USB
Sweep Linear
Maximum Operating Temperature +40°C
Weight 3.4kg
Rise - Fall Time 9ns
Display Type LCD - Touch Screen
1 I lager för leverans inom 3-5 arbetsdagar
Pris (ex. moms) Each
12 626,00 kr
(exkl. moms)
15 782,50 kr
(inkl. moms)
Enheter
Per unit
1 +
12 626,00 kr
Nästa dag-leverans inte möjlig
