    Teledyne LeCroy Waveform Generator, 1 μHz Min, 5MHz Max - RS Calibration

    RS-artikelnummer:
    177-1313
    Tillv. art.nr:
    T3AFG5
    Tillverkare / varumärke:
    Teledyne LeCroy
    Teledyne LeCroy
    Se kategorien
    Denna produkt har utgått
    RS-artikelnummer:
    177-1313
    Tillv. art.nr:
    T3AFG5
    Tillverkare / varumärke:
    Teledyne LeCroy
    COO (Country of Origin):
    CN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    CN

    Produktdetaljer

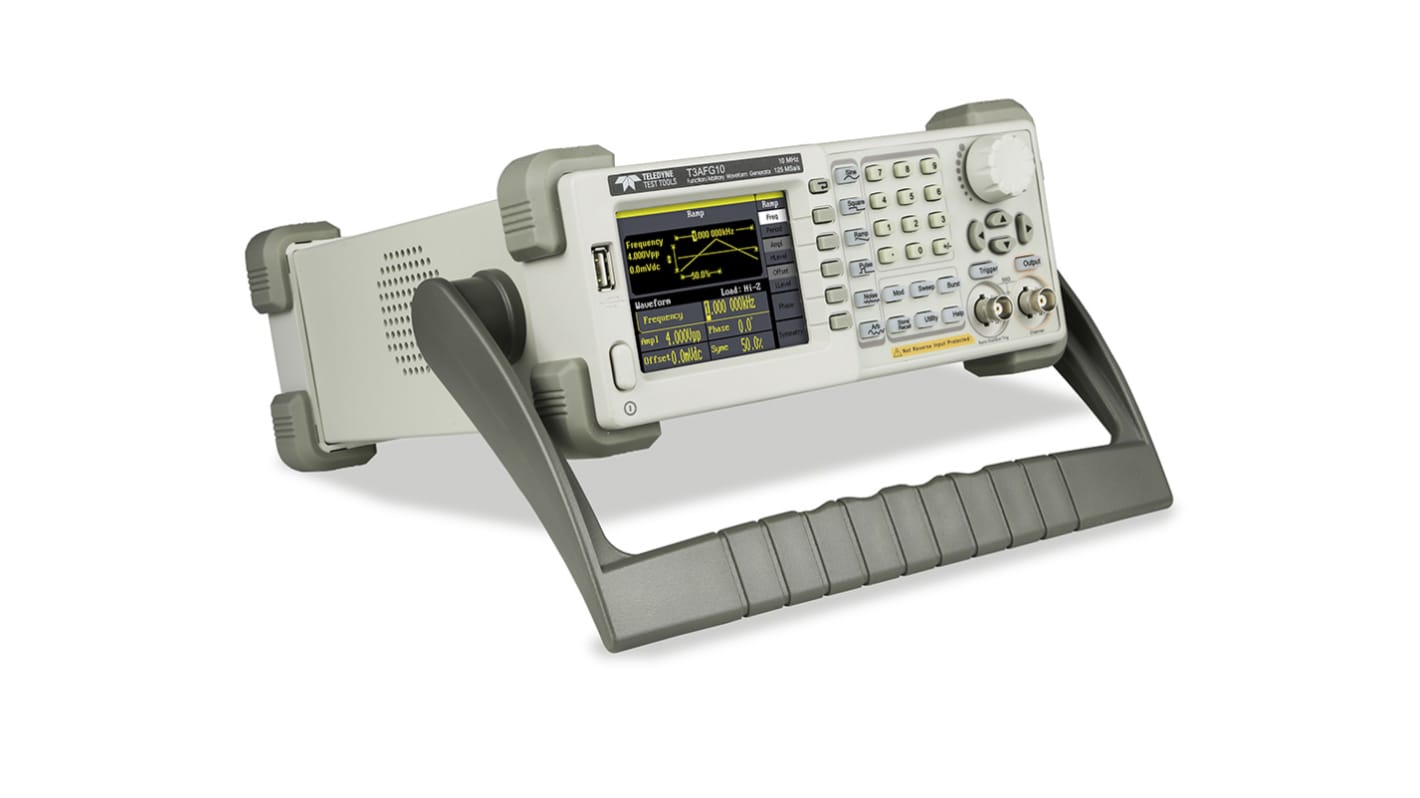

    Teledyne LeCroy T3AF Waveform Generators


    The T3AFG range of waveform generators from Teledyne LeCroy are brilliant testing and debugging tools. These T3AFG are both arbitrary and function generators packed into one. This range packs great features such as DDS technology, a wide range of modulation functions, remote control support and outstanding build quality.

    Teledyne LeCorys T3AFG models come with a dual functionality handle. This handle can double up as a stand also with a rotation over the unit.


    Features and Benefits:


    • Improved debugging – Deep memory, wide range of modulation types, high resolutions, high bandwidth, built in arbitrary waveforms and user defined waveforms

    • 3.5" – 4.3" Display. (T3AFG40+ includes touchscreen)

    • Sample rate up to 1.2 GS/s

    • USB for mass storage

    • LAN port on 2 channel models

    • Sweep output – Sine, Square, Triangle or Arbitrary waveforms

    • Frequency resolution of 1uHz

    • Handle doubles up as a stand

    • Waveform types include DC


    Applications:


    The T3AFG waveform generators are used in a wide array of applications in a multitude of different industries. The waveform generator is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;
    • Educational demonstrations

    • Engineering

    • Debugging

    • Electronic design

    • Automotive


    Why Teledyne LeCroy?


    Teledyne LeCroy Waveform Generators have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy Waveform Generators are covered by a 3-year manufactures warranty.



    Specifikationer

    AttributeValue
    Maximum Frequency5MHz
    Minimum Frequency1 μHz
    Maximum Frequency Triangle Ramps300kHz
    Minimum Pulse Train Repetition Rate16ns
    Resolution1 μHz
    CalibratedRSCAL
    Arbitrary WaveformsYes
    Rise - Fall Time<24ns
    Maximum Operating Temperature+40°C
    Waveform Memory per Channel8 M points/ch, 16 k points/ch
    Maximum Output Amplitude20V Pk-Pk
    Dimensions260.3 x 107.2 x 295.7mm
    Weight3.4kg
    Length260.3mm
    Width107.2mm
    Minimum Operating Temperature0°C
    Height295.7mm
    Denna produkt har utgått
