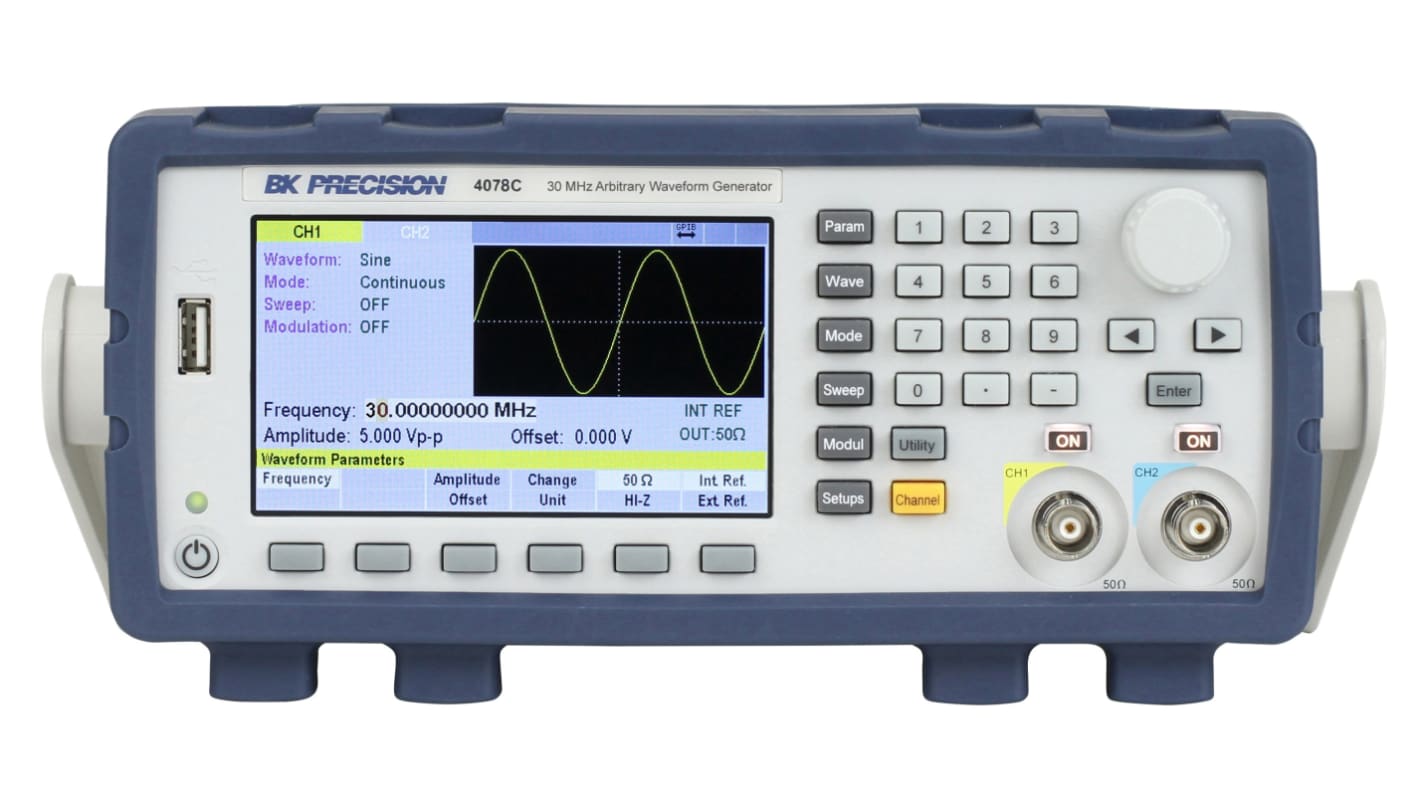

BK Precision 4078C Arbitrary Waveform Generator, 30MHz Max, 2-Channel, 1 MHz Min - With RS Calibration

The BK4078C Series Arbitrary/Function Waveform Generators are versatile high-performance dual-channel arbitrary waveform generators comprised of a 30 MHz and 50 MHz model. They provide variable output voltages from 0 to 10 Vp-p into 50 ohms or up to 20 Vp-p into an open circuit, and a DC offset to bias the output signal at a desired level. With up to 250 MSa/s sampling rate and 16-bit amplitude resolution, these instruments produce high fidelity waveforms without skipping points. Easily generate arbitrary waveforms of up to 4 million points from the front panel using the built-in editor tool. Additional features include AM, FM, and FSK modulation, frequency sweep capabilities, and variable edge pulse generation.

Generate waveforms up to 30 MHz (BK4078C) and 50 MHz (BK4079C)
2 channels with dedicated output ON/OFF buttons for each channel
Up to 250 MSa/s sampling rate
Waveform length up to 4 Mpts/ch
16-bit amplitude resolution
Linear and logarithmic sweep
Modulation techniques include: AM, FM, PM, BPSK, and FSK
Continuous, triggered, burst, and gate modes
Internal/external triggering and programmable markers
Variable DC offset &pm
