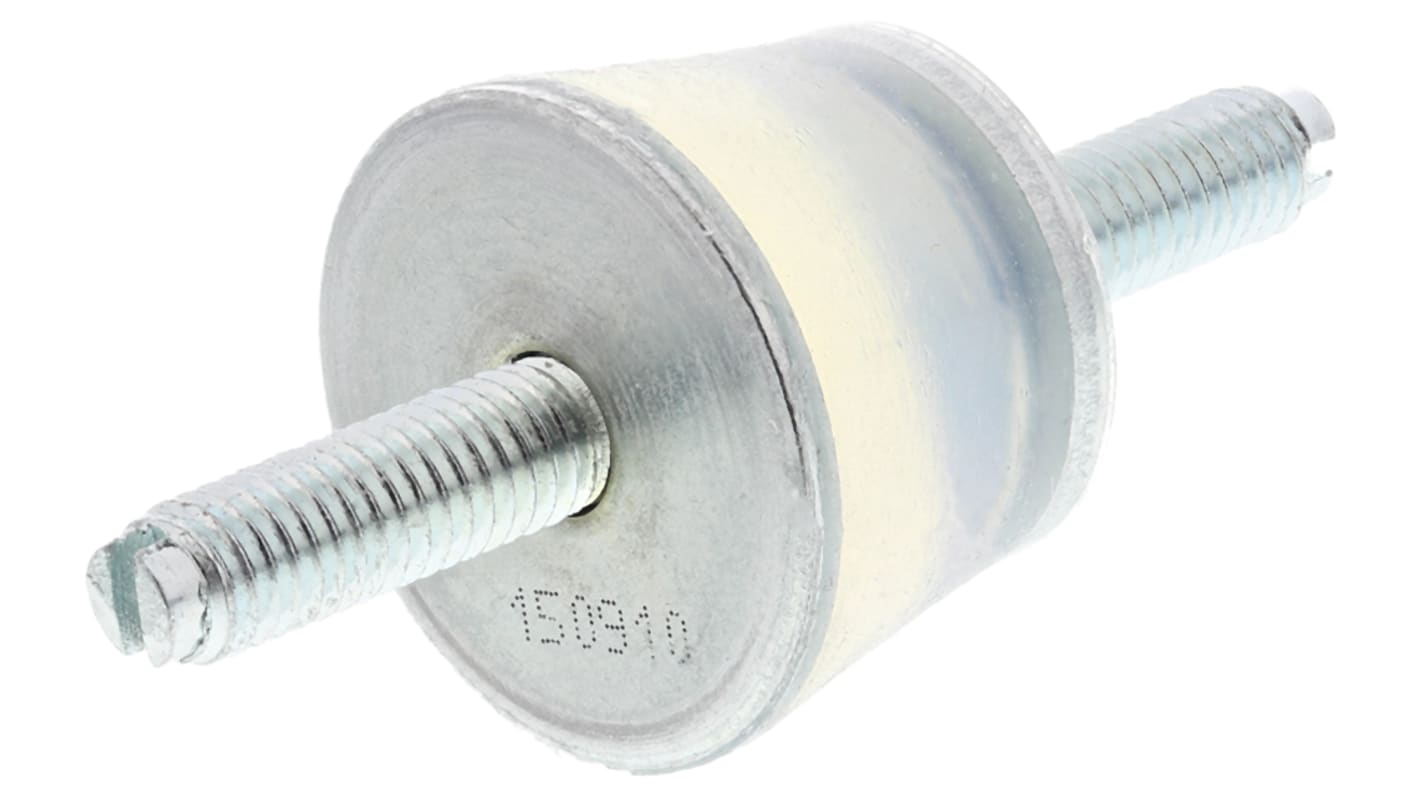

Taica M6 Anti Vibration Mount, Male to Male Bobbin
- RS-artikelnummer:
- 474-773
- Tillv. art.nr:
- THETA-C
- Tillverkare / varumärke:
- Taica
40 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) 1 påse med 1
396,03 kr
(exkl. moms)
495,04 kr
(inkl. moms)
| Påse(ar) | Per Bag |
| 1 - 4 | 396,03 kr |
| 5 - 9 | 376,28 kr |
| 10 - 24 | 364,20 kr |
| 25 + | 356,43 kr |
- RS-artikelnummer:
- 474-773
- Tillv. art.nr:
- THETA-C
- Tillverkare / varumärke:
- Taica
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Soft Silicone Gel Mounts
Soft silicone gel mounts for vibration isolation, shock absorption and noise reduction. Used for vibration damping on loads from 2 kg up to 100 kg supported at 4 points. Gel anti-vibration mounts are able to dampen to a lower frequency than rubber or neoprene.
All SUS versions are stainless steel equivalents.
All SUS versions are stainless steel equivalents.
Features and Benefits
• Fixable by two vertical slotted bolts
• Strong Bond Between Metal Parts and Silicone
• High Temperature Resistance -40 to 200°C
• Excellent Weathering Properties, Ozone Resistant, UV Resistant and Chemically Resistant
• Not Suitable for Applications Involving Uneven Loads, Angular Loading, Twisting, Tensile or Shearing Loads
• Strong Bond Between Metal Parts and Silicone
• High Temperature Resistance -40 to 200°C
• Excellent Weathering Properties, Ozone Resistant, UV Resistant and Chemically Resistant
• Not Suitable for Applications Involving Uneven Loads, Angular Loading, Twisting, Tensile or Shearing Loads
Application Information
Ideal for use on vacuum pumps, precision equipment, measuring applications, on-board computers and other sensitive electronic equipment.
Note
A bag contains 1 item
Silicone Low Frequency Male/Male Mounts
Specifikationer
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Male to Male Bobbin |
| Thread Size | M6 |
| Overall Height | 58mm |
| Material | Silicone |
| Metalwork | Chrome Plated Iron |
| Maximum Operating Temperature | +200°C |
| Minimum Operating Temperature | -40°C |
