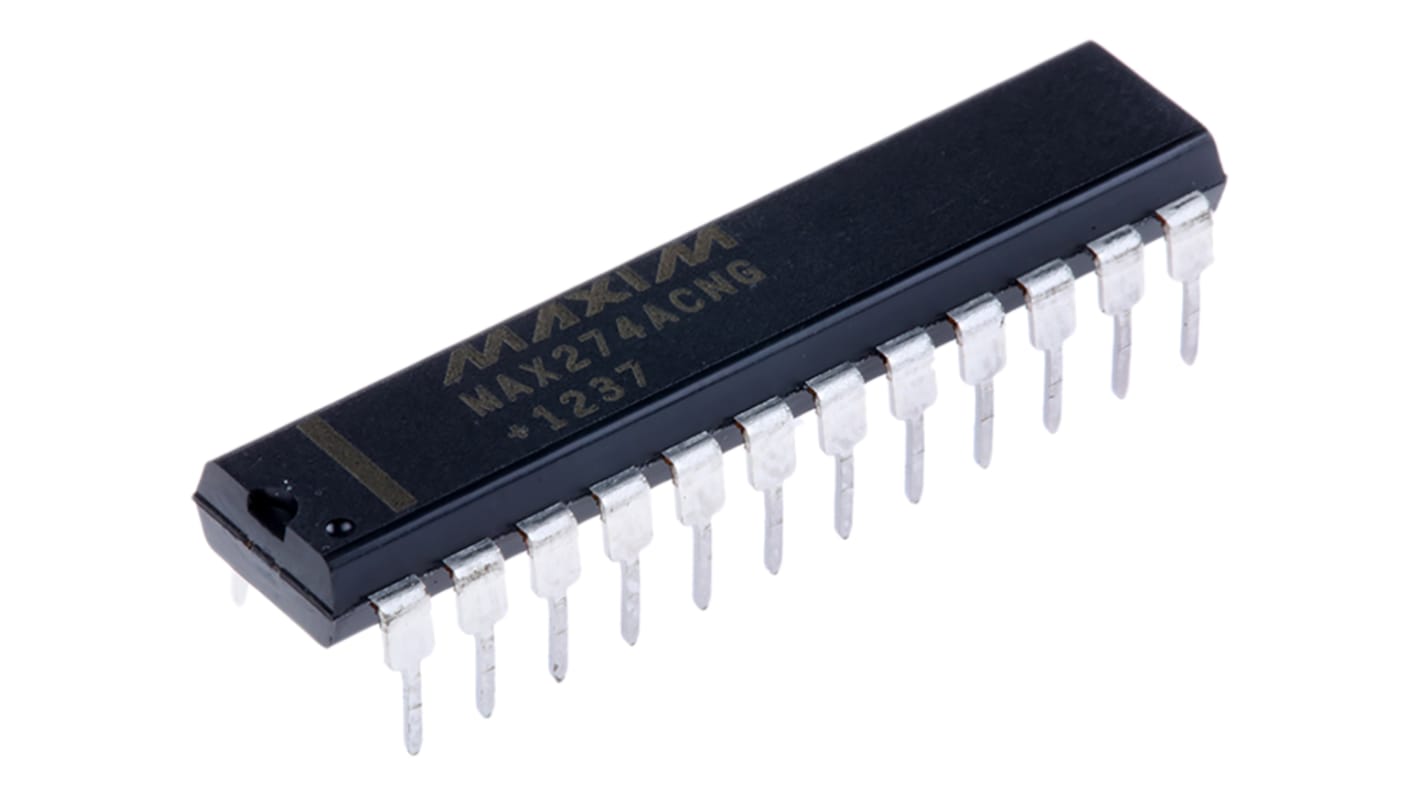

Maxim Integrated Band Pass Filter, Low Pass Filter Active Filter, 8th Order
- RS-artikelnummer:
- 333-026P
- Tillv. art.nr:
- MAX274ACNG+
- Tillverkare / varumärke:
- Maxim Integrated
Se alla Active Filters
1 I lager för avsändande samma dag
Pris (ex. moms) Each (Supplied in a Tube)
286,30 kr
(exkl. moms)
357,88 kr
(inkl. moms)
| Enheter | Per unit |
| 10 - 24 | 286,30 kr |
| 25 - 99 | 274,05 kr |
| 100 + | 268,14 kr |
Förpackningsalternativ:
- RS-artikelnummer:
- 333-026P
- Tillv. art.nr:
- MAX274ACNG+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Filter ICs, Maxim Integrated Products
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Specifikationer
| Attribute | Value |
| Filter Type | Band Pass Filter, Low Pass Filter |
| Maximum Order | 8th |
| Architecture | Continuous Time |
| Cut-off Frequency | 150kHz |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 5 V |
| Typical Dual Supply Voltage | ±5V |
| Number of Circuits | 1 |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 24 |
| Dimensions | 32.13 x 7.87 x 4.45mm |
| Height | 4.45mm |
| Operating Temperature Range | 0 → +70 °C |
| Minimum Operating Temperature | 0 °C |
| Width | 7.87mm |
| Length | 32.13mm |
| Maximum Operating Temperature | +70 °C |
